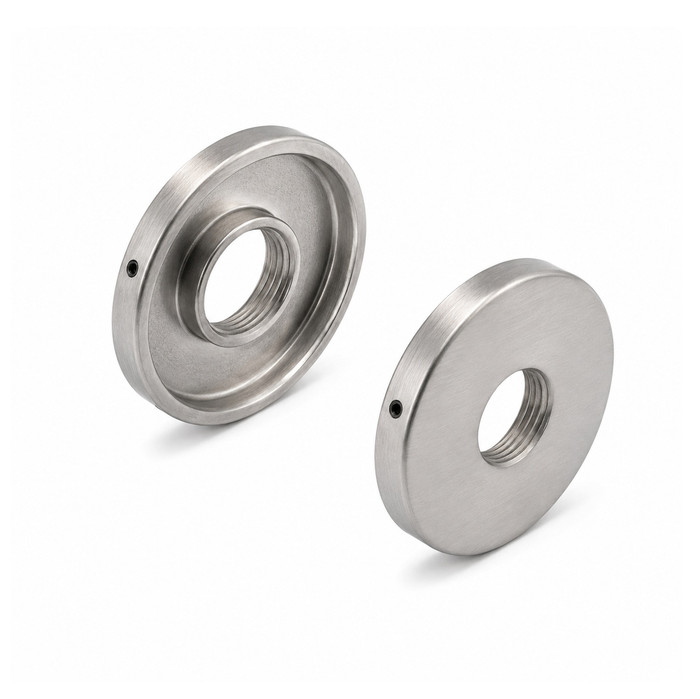

Corbin Russwin 487F08 ML2000/ML2000HS Mortise Lock Series Part, Wrought Rose Packet (Qty 2), 2-1/4" Diameter (A)

Corbin Russwin 487F08 Grade 1 ML2000/ML2000HS Mortise Lock Series Part, Wrought Rose Packet (Qty 2), 2-1/4" Diameter (A)

(No reviews yet) Write a Review

Model: 487F08 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$111.00
$98.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 487F08 ML2000 Series Mortise Lock Wrought Rose Packet, 2-1/4" Diameter (Qty 2)

Genuine ML2000 Series Replacement Rose Pack for Commercial Mortise Locks

The Corbin Russwin 487F08 is a genuine replacement Wrought "A" Rose Packet designed specifically for use with the ML2000 and ML2000HS Mortise Lock Series. Each package includes a quantity of 2 rose components, each measuring 2-1/4" in diameter, ensuring a precise, factory-matched fit for commercial mortise lock applications. This part maintains the professional appearance and structural integrity of the ML2000 Series door hardware installation.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
  • UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
  • Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
  • Multi-function capability: 12 functions configurable from one ML2054 lockbody
  • Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
  • 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
  • Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
  • Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
  • Motorized Electric Latch Retraction (MELR) available for ML20900 series
  • Thru-bolted trim designs for proper alignment and increased security
  • Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
  • UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
  • Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

  • Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
  • Handing: Handed; quick reversible — re-handed without disassembling the lock case
  • Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
  • Backset: 2-3/4" (70mm)
  • Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
  • Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
  • Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
  • Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
  • Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
  • Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
  • Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
  • Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin ML2000 Series parts and accessories are manufactured to exacting commercial standards, ensuring consistent fit, finish, and performance with the broader ML2000 and ML2000HS Mortise Lock Series product line. This genuine replacement rose packet maintains the integrity of your commercial door hardware installation with a precise 2-1/4" diameter wrought rose construction. Engineered for demanding commercial applications where dependable performance and professional appearance are essential.

Product Specs

Product Group:
Parts and Accessories
Series:
ML2000 Series
Product Subgroup:
Parts and Accessories
Product Type:
Rose Pack
Commercial/Residential:
Commercial
Lock Type:
Mortise
Subcategory:
Parts and Accessories
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin 487F08 626 – Frequently Asked Questions

1) What exactly comes in the Corbin Russwin 487F08 rose packet?
The 487F08 is a wrought "A" rose packet for ML2000 and ML2000HS mortise locks, and it ships two roses per packet, each 2-1/4 inches in diameter. It is the trim rose only, the round plate that sits between the knob or lever and the door face. It is not a lockbody, lever, or cylinder, so if the lock case itself has failed this part will not fix it.
2) Will this rose fit my Corbin Russwin mortise lock, or is it only for certain models?
It's the factory "A" wrought rose for the ML2000 and ML2000HS mortise lock series. Two roses per packet, 2-1/4 inches across. Match the rose designation on your existing sectional trim before ordering, since Corbin Russwin uses different rose shapes and diameters across its trim designs and only the "A" rose is supplied here.
3) I manage a building with Corbin Russwin mortise locks on every door. Can I get these roses to match the finishes already installed?
Twelve BHMA finishes are offered: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 oil-rubbed satin bronze, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, and 722 black oxidized oil-rubbed bronze. Pull the finish number off an existing escutcheon or lever and order the same code so replacements blend into the run instead of standing out.
4) Is a rose swap enough to keep a fire-rated opening compliant?
The ML2000 lock itself is UL/cUL listed to UL10C positive pressure, rated for 3-hour fire doors up to 4 by 10 feet single or 8 by 10 feet pair. Using the genuine factory 487F08 wrought rose keeps the trim as tested; substituting an off-brand rose on a labeled opening is what puts the listing in question. The rose carries no separate rating of its own.
5) My ML2000 uses an escutcheon trim, not a round rose. Is this the right part?
It isn't. The 487F08 supplies round 2-1/4 inch wrought roses for sectional trim. Escutcheon trim, including the status-indicator escutcheon versions, uses a long plate instead and takes a different part. Look at the door face: if the lever mounts on a small round plate, this is your part; if it mounts on a full-length plate that also surrounds the cylinder, it is not.
6) Why does a rose packet come with two pieces instead of one?
A mortise lock is trimmed on both faces of the door, so one opening takes two roses, one inside and one outside. The 487F08 packet supplies both, which covers a single door in one order. If you're refreshing a run of doors, order one packet per door.
7) Does replacing the rose on an ML2000 mean I have to pull the lock case out of the door?
No. The rose is surface trim on the door face and comes off with the knob or lever and mounting screws; the mortise case stays in the pocket. That also means swapping a damaged or mismatched rose does not disturb the cylinder, the 2-3/4 inch backset, or the latch alignment in the frame.
8) Does the rose need to match the handing of the door?
No. The wrought "A" rose is a round 2-1/4 inch plate and is not handed. The ML2000 lock body is handed but uses a quick reversible latchbolt that re-hands without opening the lock case, so handing is settled at the latch, not at the rose.
9) Will this rose cover the cylinder or thumbturn hole too?
No. On ML2000 sectional trim, the knob or lever rose is separate from the cylinder collar and thumbturn. The spacing is 3-5/8 inches center to center from knob or lever to cylinder, and 2-7/16 inches to a thumbturn, so those sit outside the 2-1/4 inch rose and need their own trim pieces.
10) Is the 487F08 suitable for high-traffic commercial doors, or is it a light-duty trim?
It's a commercial-grade wrought rose built for the ML2000 platform, which is ANSI/BHMA A156.13 Series 1000 Grade 1 for both operational and security, with UL cycle verification at 14.5 million cycles. Wrought construction rather than cast means it holds up in schools, healthcare corridors, and multi-tenant residential where doors cycle constantly.
11) Does the door thickness affect which rose I order?
No. The ML2000 is built for 1-3/4 inch (44mm) doors as standard with optional thicknesses available, and thickness is handled by the spindle and thru-bolt lengths in the trim, not by the rose. The 2-1/4 inch wrought rose is the same part regardless.
