Corbin Russwin 488F04 Grade 1 ML2000 Outside M Escutcheon-Wrought For Grip Only

Corbin Russwin 488F04 Grade 1 ML2000 Outside M Escutcheon-Wrought For Grip Only

(No reviews yet) Write a Review

Model: 488F04-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$205.92
$154.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 488F04 ML2000 Series Outside Wrought M Escutcheon for Grip Only

Commercial-Grade Mortise Lock Replacement Escutcheon for ML2000 Series

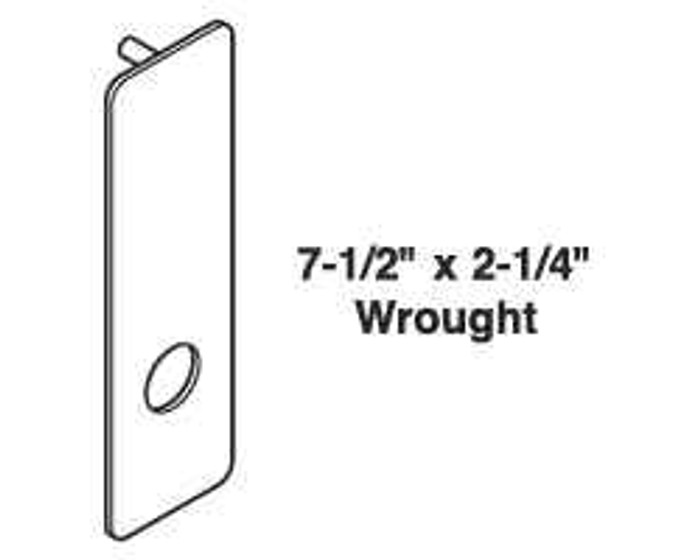

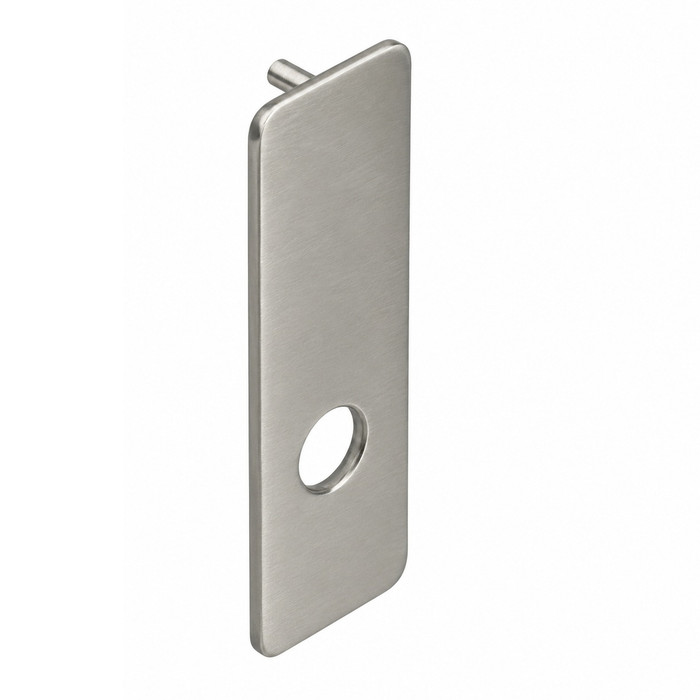

The Corbin Russwin 488F04 is a wrought "M" escutcheon designed for outside grip-only applications on the ML2000 and ML2000HS Mortise Lock Series. Measuring 7-1/2" x 2-1/4", this precision-crafted replacement part delivers a clean, professional appearance while maintaining the structural integrity expected of Grade 1 commercial door hardware. Field reversible door hand direction ensures flexible installation across a wide range of commercial openings.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
  • UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
  • Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
  • Multi-function capability: 12 functions configurable from one ML2054 lockbody
  • Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
  • 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
  • Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
  • Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
  • Motorized Electric Latch Retraction (MELR) available for ML20900 series
  • Thru-bolted trim designs for proper alignment and increased security
  • Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
  • UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
  • Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

  • Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
  • Handing: Handed; quick reversible — re-handed without disassembling the lock case
  • Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
  • Backset: 2-3/4" (70mm)
  • Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
  • Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
  • Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
  • Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
  • Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
  • Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
  • Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
  • Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Corridor and Dormitory Environments
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties

Why Choose Corbin Russwin Quality?

Corbin Russwin mortise lock parts and accessories are built to Grade 1 commercial standards, ensuring reliable performance in demanding institutional and commercial applications. The 488F04 wrought M escutcheon is backed by a 10 Year Limited warranty, reflecting the brand's commitment to long-lasting door hardware solutions. Engineered for the ML2000 and ML2000HS Series, this replacement part maintains the precision fit and professional finish that commercial installers depend on.

Product Specs

Product Group:
Parts and Accessories
Series:
ML2000 Series
Grade:
Grade 1
Warranty:
10 Year Limited
Product Subgroup:
Parts and Accessories
Product Type:
Escutcheon
Commercial/Residential:
Commercial
Lock Type:
Mortise
Subcategory:
Parts and Accessories
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Function:
Corridor/Dormitory
Door Hand Direction:
Field Reversible
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin 488F04-626 – Frequently Asked Questions

1) What exactly is the Corbin Russwin 488F04 - is it a complete lock or just the plate?
It's the outside escutcheon plate only, a wrought "M" style plate for the ML2000 and ML2000HS mortise lock series, measuring 7-1/2 x 2-1/4 inches. No lock case, no latch, no cylinder, no lever or grip comes with it. You order it when the trim plate on an existing mortise lock is damaged, mismatched, or being refinished and the lock body itself is fine.
2) Will the 488F04 escutcheon work with a lever or knob, or only a grip handle?
Grip only. This is the outside plate for grip-only applications, so it is cut and prepped for a pull grip rather than a lever or knob rotation. If the outside of your ML2000 opening uses a lever or knob, this is the wrong plate and you need the corresponding lever or knob escutcheon trim from the ML2000 trim range.
3) Does the 488F04 escutcheon have to be ordered left hand or right hand?
No handing call-out is needed at order time. The 488F04 is field reversible, so the installer sets the hand on site. That matches the ML2000 lock body itself, which uses a quick reversible latchbolt that re-hands without opening the lock case.
4) I'm replacing trim on a 3-hour rated corridor door - can I use this escutcheon?
Yes for ML2000 openings. The ML2000 mortise lock is UL/cUL listed to UL10C positive pressure for 3-hour fire doors up to 4 by 10 feet single and 8 by 10 feet pair, and the escutcheon trim is part of that listed assembly. Keep the rest of the lock as-listed; swapping in trim from another manufacturer is what breaks a rated opening.
5) What door thickness and backset does the ML2000 trim setup assume?
Standard is a 1-3/4 inch (44mm) door with a 2-3/4 inch (70mm) backset, which is the normal commercial mortise prep. Optional door thicknesses are available on the ML2000 series, and trim for a thicker door has to be ordered for that thickness rather than shimmed.
6) Can I use the 488F04 on a lock body from another brand?
No. It is dimensioned for the Corbin Russwin ML2000 and ML2000HS mortise lock case, which is 5-7/8 x 4 x 15/16 inches with its own trim and cylinder hole centers. Trim from one mortise manufacturer does not line up with another's case. Confirm the lock body is an ML2000 family case before ordering.
7) Which finishes does the 488F04 escutcheon come in so I can match the rest of my doors?
Thirteen BHMA finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, and 722 black oxidized bronze oil-rubbed. For a building standardized on commercial stainless trim, 630 is the usual match; 626 satin chrome is the other common institutional finish.
8) Does the escutcheon plate cover the cylinder, and what is the spacing on an ML2000?
On the ML2000 the center-to-center spacing from knob or lever to the cylinder is 3-5/8 inches (92mm), and knob or lever to thumbturn is 2-7/16 inches (62mm). Those are the hole centers the escutcheon trim is drilled to, so the plate lines up with an existing ML2000 door prep without redrilling.
9) Is this Grade 1 trim suitable for a dorm or high-traffic corridor?
It's built for exactly that. The ML2000 carries ANSI/BHMA A156.13 Series 1000 Operational and Security Grade 1, with UL cycle testing at 14.5 million cycles, and the 488F04 is catalogued for corridor and dormitory function openings. Thru-bolted trim on the series keeps the plates aligned and resists being pulled off.
10) If I'm replacing the trim, will my existing keys and cylinder still work?
The escutcheon doesn't touch keying. The ML2000 lock body works with new or existing Corbin Russwin key systems and accepts most other manufacturers' cylinders, with a brass 6-pin L4 keyway 0-bitted as the standard cylinder. Pull your existing cylinder, fit the new plate, put the cylinder back.
11) Will the existing strike still catch after I change out the escutcheon trim?
Yes, nothing about the latching changes. The ML2000 uses a two-piece anti-friction latchbolt with a 3/4 inch (19mm) throw into an ANSI straight lip strike, 4-7/8 x 1-1/4 inches with 1-1/8 inch lip to center, plus a 9/16 inch (14mm) deadlocking auxiliary latch and a 1 inch (25mm) throw stainless deadbolt. Swapping the outside plate leaves all of that in place.
