Corbin Russwin 544F95 ML2000 Inside M Escutcheon-Wrought For Grip Only

Corbin Russwin 544F95 Grade 1 ML2000 Inside M Escutcheon-Wrought For Grip Only

(No reviews yet) Write a Review

Model: 544F95-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$205.92
$154.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 544F95 ML2000 Series Inside M Escutcheon Wrought Replacement Part for Grip Only

Commercial-Grade Mortise Lock Replacement Escutcheon for ML2000 Series

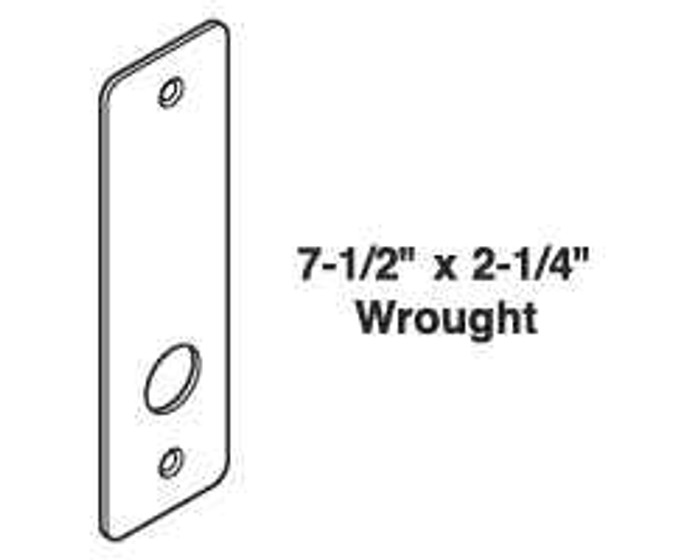

The Corbin Russwin ML2000 Series Inside M Escutcheon is a precision-crafted wrought replacement part designed specifically for use with the ML2000 Mortise Lock configured for Thumbturn Lever and Grip applications. Measuring 7-1/2" x 2-1/4", this wrought M-design escutcheon delivers a clean, professional interior trim finish for corridor and dormitory door hardware installations. Rated Grade 1 for commercial performance, this field-reversible component integrates seamlessly with the ML2000 Series mortise lock platform.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
  • UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
  • Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
  • Multi-function capability: 12 functions configurable from one ML2054 lockbody
  • Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
  • 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
  • Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
  • Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
  • Motorized Electric Latch Retraction (MELR) available for ML20900 series
  • Thru-bolted trim designs for proper alignment and increased security
  • Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
  • UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
  • Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

  • Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
  • Handing: Handed; quick reversible — re-handed without disassembling the lock case
  • Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
  • Backset: 2-3/4" (70mm)
  • Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
  • Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
  • Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
  • Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
  • Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
  • Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
  • Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
  • Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Dormitories
  • Healthcare Institutions
  • Corridor and Dormitory Door Applications
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin ML2000 Series parts and accessories are manufactured to Grade 1 commercial standards, ensuring consistent fit, finish, and long-term reliability in demanding institutional environments. This inside M escutcheon is backed by a 10 Year Limited warranty, reflecting Corbin Russwin's commitment to quality and durability. Engineered for commercial mortise lock applications where precise component compatibility and dependable performance are essential.

Product Specs

Product Group:
Parts and Accessories
Series:
ML2000 Series
Grade:
Grade 1
Warranty:
10 Year Limited
Product Subgroup:
Parts and Accessories
Product Type:
Escutcheon
Commercial/Residential:
Commercial
Lock Type:
Mortise
Subcategory:
Parts and Accessories
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Function:
Corridor/Dormitory
Door Hand Direction:
Field Reversible
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin 544F95-626 – Frequently Asked Questions

1) What exactly is the Corbin Russwin 544F95, and is it a complete lock?
It's the inside escutcheon plate only, the M-design wrought trim plate that mounts on the room side of a ML2000 Series mortise lock. No lockbody, no lever, no grip, no cylinder comes with it. The plate measures 7-1/2 x 2-1/4 inches and is cut for grip applications with a thumbturn lever. If your lock case is bad, you need a lockbody such as the ML2054; if the plate is scratched, bent, or the finish is wrong, this is the part.
2) Will the 544F95 escutcheon work on a lockset that uses a lever instead of a grip?
No. This plate is prepped for grip only, in the thumbturn lever and grip configuration of the ML2000 mortise lock. If the outside is a lever pull rather than a grip handle, order the escutcheon that matches that trim design instead. Confirm the trim style on the door before you order a finish.
3) Does using this replacement escutcheon keep my fire-rated mortise lock compliant?
The ML2000 platform this trim belongs to is UL/cUL listed to UL10C positive pressure and good for 3-hour fire doors up to 4 by 10 feet single or 8 by 10 feet pair, and it carries ANSI/BHMA A156.13 Series 1000 Operational and Security Grade 1 plus ADA A117.1 and California State Fire Marshal listings. Replacing a damaged escutcheon with the correct factory part keeps you on that listed assembly rather than mixing in aftermarket trim.
4) What hole spacing does the M escutcheon use for the cylinder and thumbturn?
Center to center on the ML2000 trim is 3-5/8 inches (92mm) from knob/lever to cylinder and 2-7/16 inches (62mm) from knob/lever to thumbturn. Compare those against the prep already in your door before you swap trim, since an older non-ML2000 escutcheon on the same door may not share them.
5) Will the existing strike still catch if I only replace the escutcheon?
Yes. Swapping the inside trim plate doesn't change the latching geometry: the two-piece anti-friction latchbolt still throws 3/4 inch (19mm), the auxiliary latchbolt has 9/16 inch (14mm) effective throw, and the deadbolt throws 1 inch (25mm) into the ANSI straight-lip strike (4-7/8 x 1-1/4 inches, 1-1/8 inch lip to center). No strike work is needed for a trim-only repair.
6) Do I need to know the door handing to order this escutcheon?
The escutcheon is field reversible, so one part covers left and right hand doors. The ML2000 lockbody behind it uses a Quick Reversible latchbolt that re-hands without opening the lock case, so a handing change on the opening doesn't force a different part number.
7) Which finishes does the 544F95 inside escutcheon come in for matching existing doors?
Thirteen finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, and 722 black oxidized bronze oil-rubbed. For a corridor of mixed-age doors, 626 and 630 are the two you'll most often find already installed on commercial openings.
8) What door thickness and backset does the mortise lock behind this escutcheon use?
Standard is a 1-3/4 inch (44mm) door with a 2-3/4 inch (70mm) backset, and optional thicknesses are available on the ML2000 platform. The lock case itself is 5-7/8 by 4 by 15/16 inches heavy-gauge steel, so the door pocket has to match before trim matters.
9) Will the lock this trim goes on accept cylinders from another brand?
The ML2000 mortise lock works with new or existing Corbin Russwin key systems and accepts most other manufacturers' cylinders; factory standard is a brass 6-pin L4 keyway, 0-bitted. The escutcheon itself carries the cylinder opening, so it does not restrict your keying choice.
10) Is this escutcheon suitable for a dorm or corridor lock function?
Yes, it's the corridor/dormitory function trim for the ML2000 Series, which is why it carries a thumbturn prep on the inside plate. The same lockbody family covers 12 functions from a single ML2054, so a facility standardizing on one lock can change function without changing the door prep.
11) How durable is this trim for a high-traffic dormitory corridor?
The ML2000 assembly is tested to 14.5 million cycles under UL verification ID V875753, well past the Grade 1 minimum, and trim is thru-bolted for alignment and added security. The plate itself is wrought rather than cast, which is what holds up to abuse on student housing and healthcare corridors.
