Corbin Russwin 600F425 Grade 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$180.18
$145.02

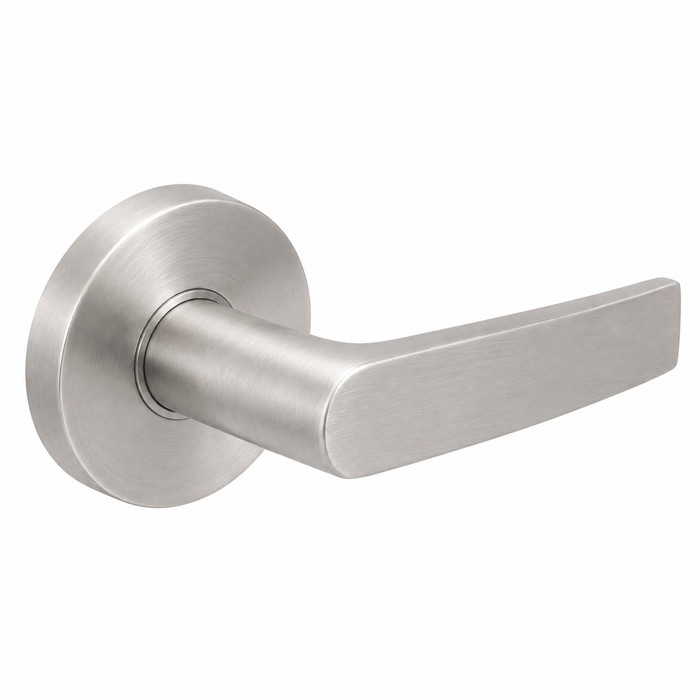

Corbin Russwin 600F425 Grade 1 - Lock Lever, ED8000 Pushpad Exit Device, CL3300 Cylindrical Lock Series, AZD

Corbin Russwin 600F425 Grade 1 - Lock Lever, ED8000 Pushpad Exit Device, CL3300 Cylindrical Lock Series, AZD

(No reviews yet) Write a Review

Model: 600F425 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$180.18
$145.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 600F425 Lock Lever for ED8000 Pushpad Exit Device with LFIC 7-Pin Cylinder, CL3300 Series

Commercial-Grade Lock Lever Accessory for CL3300 Cylindrical Lock and ED8000 Pushpad Exit Device

The Corbin Russwin 600F425 is a professional-grade lock lever designed for use with the ED8000 Pushpad Exit Device and the CL3300 Cylindrical Lock Series. This lever integrates an A6 x Cylinder configuration with a Large Format Interchangeable Core (LFIC) 7-Pin cylinder, providing secure and reliable access control for commercial door applications. Compatible with doors ranging from 1-3/8" to 2-1/4" in thickness, and specifically suited for lever installations on doors with 1-3/4" to 2" thickness, this component delivers precise fitment for demanding commercial environments.

Professional Features & Benefits

  • Grade 1 cylindrical lockset per ANSI/BHMA A156.2 Series 4000, Grade 1
  • Lever Release™ design for vandal resistance — outside lever rotates freely when locked
  • EZ-Install components significantly reduce installation time
  • Independent return springs prevent lever sag
  • 4 solid cast lever options (Armstrong, Newport, Princeton, Frascati)
  • Anti-rotational through-bolts at 6 and 12 o'clock positions
  • Accommodates 6 or 7-pin conventional cylinders and all keying levels
  • CL3352 Classroom Intruder function: double-cylinder lockset, always-free egress
  • Available with MicroShield® antimicrobial coating (suffix option code "C")
  • CL33900 electrified option: fail safe and fail secure, 12 or 24VAC/VDC
  • ElectroLynx® 8-pin connector on all electrified products
  • Seven-year limited warranty (two-year for electrified)

Technical Specifications

  • Grade: ANSI/BHMA A156.2 Series 4000, Grade 1
  • Handing: Non-handed (except FZD trim)
  • Door Thickness: 1-3/4" (44mm) 2" (51mm) standard; optional over 2" 2-1/4" (57mm)
  • Backset: 2-3/4" (70mm) standard; optional 3-3/4" (95mm) and 5" (127mm)
  • Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) fire latch
  • Auxiliary Latchbolt: Deadlocking — prevents manipulation when door is closed
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8"
  • Strike: Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Electrified Voltage: 12VAC/DC or 24VAC/DC (CL33900 Series)
  • Electrified Current: 250mA @ 12VAC/VDC; 150mA @ 24VAC/VDC, continuous duty solenoid
  • Certifications: ANSI/BHMA A156.2 Grade 1; UL-cUL listed; ANSI A117.1 Accessibility; California State Fire Marshal
  • Warranty: Seven-year limited (two-year for CL33900 electrified)

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin lock lever components are engineered to exact specifications for seamless integration with the ED8000 Pushpad Exit Device and CL3300 Cylindrical Lock Series, ensuring consistent mechanical performance in commercial door hardware assemblies. The LFIC 7-Pin cylinder configuration supports advanced key control requirements, making this lever an ideal choice for facilities requiring reliable, maintainable access control solutions. Designed for commercial applications, Corbin Russwin parts deliver the dependable performance that professional door hardware installations demand.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lever
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Attribute:
Parts and Accessories
Product Model:
600F425
Product Category:
Mechanical Locks
Department:
Door Hardware
Door Thickness Range:
1-3/4" to 2"

Corbin Russwin 600F425 626 – Frequently Asked Questions

1) What is the Corbin Russwin 600F425 lever actually used with?
The 600F425 is a lock lever trim component built for the Corbin Russwin ED8000 pushpad exit device and the CL3300 cylindrical lock series. It is ordered in the A6 x Cylinder configuration with a large format interchangeable core (LFIC) 7-pin cylinder, so it is the keyed outside lever half of the assembly rather than a complete lockset. If you need the full chassis and latch, you are ordering a CL3300 lockset, not this part.
2) Will the Corbin Russwin 600F425 lever work on a 1-3/8 inch door?
No. For lever installation the stated door thickness range is 1-3/4 inch to 2 inch. The broader CL3300 family can be configured from 1-3/8 inch up to 2-1/4 inch, but the lever trim itself is specified for 1-3/4 to 2 inch doors, with over-2-inch up to 2-1/4 inch as an optional build. On a 1-3/8 inch door you need a different trim configuration.
3) What backset does the CL3300 series lever install at, and can it be used on a wide stile door?
Standard backset is 2-3/4 inches (70mm), which is the usual commercial prep. Optional 3-3/4 inch (95mm) and 5 inch (127mm) backsets are available for wide stile or narrow-lite doors where the lever has to clear a glass stop. The backset is a chassis option, so specify it when the lockset is ordered rather than trying to correct it at the lever.
4) Will this latch into an existing ANSI strike prep?
Yes, the CL3300 series uses a wrought brass or stainless ANSI curved lip strike measuring 4-7/8 x 1-1/4 inches with 1-1/4 inch lip to center, which drops into a standard ANSI frame cutout. The stainless latchbolt has a 1/2 inch throw, with an optional 3/4 inch fire latch. A deadlocking auxiliary latchbolt sits alongside it to block manipulation once the door is closed.
5) Can I key this Corbin Russwin lever into my existing master key system?
The cylinder here is a large format interchangeable core, 7-pin, which is what most key control programs on a Corbin Russwin system are built around. The CL3300 chassis also accepts 6 or 7-pin conventional cylinders and all keying levels. Standard conventional cylinder supply is brass, 6-pin L4 keyway, 0-bitted. If you are running an existing LFIC system, the core pulls with a control key and swaps without taking the lever apart.
6) Is this lever rated for high traffic and abuse in a school or public building?
It carries ANSI/BHMA A156.2 Series 4000, Grade 1, which is the heaviest commercial cylindrical lock classification. The Lever Release design lets the outside lever rotate freely when locked instead of transmitting force into the chassis, which is what protects it from someone hanging on the lever. Anti-rotational through-bolts at 6 and 12 o'clock hold the trim tight, and independent return springs keep the lever from sagging over time. It is also UL-cUL listed, meets ANSI A117.1 accessibility, and is California State Fire Marshal listed.
7) Does the 600F425 lever have to be handed?
No handing to specify. The CL3300 series lever trim is non-handed, with the single exception of FZD trim. One part covers left and right hand openings, which is what makes it practical to stock a spare for a building running the same lever across many doors.
8) Can the CL3300 series be electrified, and what voltage does it need?
Yes, through the CL33900 electrified option, available fail safe or fail secure at 12 or 24VAC/VDC. Draw is 250mA at 12V and 150mA at 24V on a continuous duty solenoid, so size the power supply accordingly. All electrified products use the ElectroLynx 8-pin connector, which saves field-wiring the door loop. Note this is a chassis-level option, not something added to the lever after the fact.
9) Which lever designs can I get in the CL3300 series, and is there an antimicrobial option for healthcare?
Four solid cast lever designs are offered: Armstrong, Newport, Princeton, and Frascati. For healthcare or food service openings, MicroShield antimicrobial coating is available under suffix option code C. Both the lever style and the coating are specified at order time, so pin them down before the purchase order goes out if you are matching existing trim in the building.
10) I need a classroom lockdown function for a school. Does the CL3300 series offer one?
The CL3352 classroom intruder function covers that. It is a double-cylinder lockset, so a teacher can lock the outside lever from inside the room with a key without stepping into the corridor, and egress from inside is always free. That free-egress behavior is what keeps it usable on a classroom door under life safety requirements.
11) What finish does the Corbin Russwin 600F425 lever come in?
626 satin chrome. That is the standard commercial finish and it matches the bulk of Grade 1 hardware already hanging in most office, school, and healthcare buildings, so it will blend with existing openings without a finish call-out.
12) Is the 600F425 lever going to hold up in a coastal or wash-down environment?
The chassis is steel, zinc dichromated for corrosion resistance, and the latchbolt is stainless steel. The front plate measures 2-1/4 x 1-1/8 inches and comes in wrought brass, bronze, or stainless steel, so a stainless front can be specified where moisture is a concern. That said, this is a commercial interior-grade product line, not a marine-rated one.
