Corbin Russwin 718F8 ML2000 Series Thimble Pack, 2 Piece Pack, For Knob

Corbin Russwin 718F8 Grade 1 ML2000 Series Thimble Pack, 2 Piece Pack, For Knob

(No reviews yet) Write a Review

Model: 718F80-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.83
$32.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 718F8 ML2000 Series Thimble Pack for Knob, 2-Piece Replacement Accessory

Genuine ML2000 Series Replacement Component for Mortise Lock and Sectional Knob Trim Designs

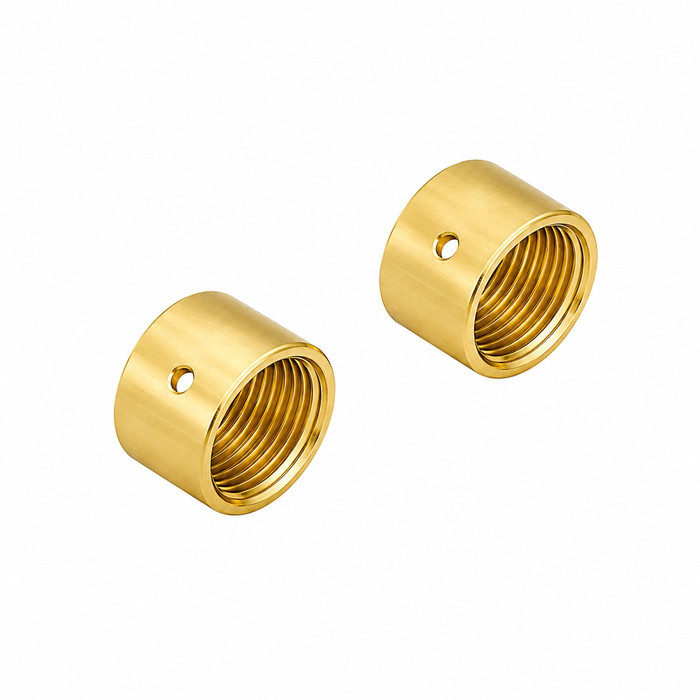

The Corbin Russwin 718F8 is a 2-piece thimble pack designed specifically for use with the ML2000 Mortise Lock and Sectional Knob Trim Designs. This genuine replacement accessory ensures proper fit and function within the ML2000 Series mortise lockset system, making it an essential component for maintenance, repair, or replacement of existing installations. Sourced directly from Corbin Russwin, this thimble pack is engineered to meet the exacting standards of commercial door hardware applications.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
  • UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
  • Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
  • Multi-function capability: 12 functions configurable from one ML2054 lockbody
  • Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
  • 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
  • Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
  • Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
  • Motorized Electric Latch Retraction (MELR) available for ML20900 series
  • Thru-bolted trim designs for proper alignment and increased security
  • Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
  • UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
  • Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

  • Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
  • Handing: Handed; quick reversible — re-handed without disassembling the lock case
  • Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
  • Backset: 2-3/4" (70mm)
  • Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
  • Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
  • Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
  • Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
  • Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
  • Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
  • Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
  • Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin lock parts and accessories are manufactured to the same exacting standards as their complete lockset systems, ensuring reliable performance and a precise fit within the ML2000 Series platform. This 718F8 thimble pack is a genuine OEM component, providing confidence that your ML2000 Mortise Lock and Sectional Knob Trim installation will continue to perform as intended. Engineered for demanding commercial applications where dependable, long-term performance is essential.

Product Specs

Product Group:
Lock Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lock Parts and Accessories
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Product Function:
Thimble Pack
For Use With:
ML2000 Mortise Lock
Department:
Door Hardware

Corbin Russwin 718F80-626 – Frequently Asked Questions

1) What is the Corbin Russwin 718F8 thimble pack actually used for?
The 718F8 is a two-piece thimble pack that goes with Corbin Russwin ML2000 Series mortise locks using knob trim. Thimbles are the small sleeve pieces that seat the knob trim against the lock spindle assembly. It is a replacement component, not a lockset, so you are buying it to service or rebuild existing ML2000 knob trim rather than to hang a new lock.
2) Does the 718F8 thimble pack work with lever trim or only knobs?
Knob trim only. The 718F8 is built for ML2000 knob designs, and both orderable configurations are knob versions: one for knob with rose trim and one for knob with M or N escutcheon trim. If your opening has ML2000 lever trim, this is the wrong part.
3) I have ML2000 knobs on escutcheon plates, not roses. Which thimble pack do I order?
Pick the M or N escutcheon version. The 718F8 comes in two trim-matched configurations: one for knob with rose trim and one for knob with M or N escutcheon trim. They are not interchangeable, so look at the door first and confirm whether the knob sits on a round rose or on a long escutcheon plate before you order.
4) Is the 718F8 a genuine Corbin Russwin part or an aftermarket copy?
It is a genuine OEM Corbin Russwin component for the ML2000 Series. That matters on mortise trim, because the ML2000 is a UL/cUL listed, UL10C positive pressure assembly rated for 3-hour fire doors up to 4 x 10 feet single or 8 x 10 feet pair. Substituting non-OEM trim parts into a fire-rated opening puts the listing in question at inspection.
5) What finishes does the 718F8 thimble pack come in so it matches the rest of my knob trim?
Four finishes: 605 bright brass, 612 satin bronze, 613 satin bronze oil-rubbed, and 626 satin chrome. All four are offered on both the rose-trim and the M/N escutcheon-trim versions. Match the BHMA finish number stamped or specified on the existing trim rather than judging by eye, since 612 and 613 look very different once installed.
6) Will the 718F8 fit my ML2000 lock if the door is thicker than standard?
The ML2000 platform is built around a 1-3/4 inch (44mm) door as standard, with optional thicknesses available from the factory. If your doors were ordered in a non-standard thickness, the trim and spindle components were specified to that thickness, so confirm what the original order called out before pulling a standard replacement thimble pack.
7) Does swapping the thimbles affect the handing of my ML2000 mortise lock?
No. Handing on the ML2000 is handled at the latchbolt, which is a patented quick reversible design that re-hands without disassembling the lock case. The thimble pack is trim hardware and carries no hand. Order it by trim style and finish only.
8) How many thimbles come in a 718F8 pack, and is that enough for one door?
Two pieces per pack, which covers both sides of a single opening with knob trim on each face. If you are standardizing across a run of doors in a building, count one pack per door leaf.
9) I am rebuilding an ML2000 knob opening. What else should I check while the trim is off?
Check the parts that carry the load. The ML2000 uses a 2-piece anti-friction latchbolt with a 3/4 inch (19mm) throw, a 9/16 inch (14mm) deadlocking auxiliary latch, and on deadbolt functions a one-piece stainless deadbolt with a 1 inch throw into an ANSI straight lip strike, 4-7/8 x 1-1/4 inches with 1-1/8 inch lip to center. Backset is 2-3/4 inches (70mm). If the latch is not projecting its full throw into the strike, the thimbles are not your problem.
10) Is the 718F8 suitable for high-traffic commercial doors or is it a residential part?
Commercial. It belongs to the ML2000 platform, which is ANSI/BHMA A156.13 Series 1000 Operational and Security Grade 1 and has been UL cycle tested to 14.5 million cycles. It is the right class of part for offices, schools, healthcare, retail, and multi-tenant residential corridors.
