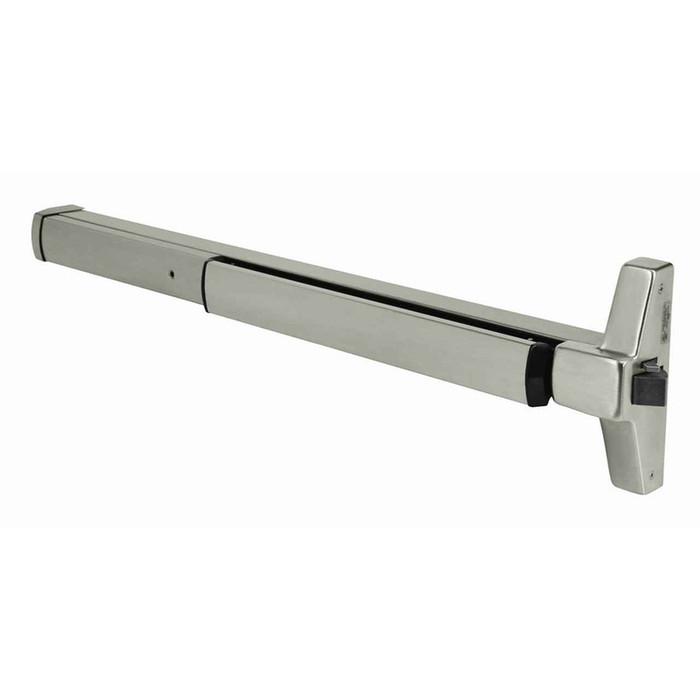

Corbin Russwin ED4200 48" Narrow Stile Rim Exit Device

Corbin Russwin ED4200 Grade 1 48" Narrow Stile Rim Exit Device

(No reviews yet) Write a Review

Model: ED4200 630 W048
$3,233.59
$1,861.29
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,233.59
$1,861.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED4200 WO48 48" Narrow Stile Rim Exit Device with ADA Pushpad

Commercial-Grade Narrow Stile Rim Exit Device for High-Use Applications

The Corbin Russwin ED4200 WO48 is a 48" narrow stile rim exit device from the ED4000 Series, engineered for high-use and high-abuse applications on narrow stile full glass, aluminum, and metal doors. Designed to meet ANSI A156.3 Type 4 Grade 1 requirements and ANSI A117.1 Accessibility Code, this device delivers ADA-compliant, barrier-free egress with a low-projection pushpad profile. Compatible with a wide range of Corbin Russwin function trims, the ED4200 WO48 is suited for new construction and renovation projects across commercial environments. Door thickness compatibility is 1-3/4", and the device is non-handed for flexible installation.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Schools and Universities
  • Healthcare Facilities
  • Government and Municipal Buildings
  • Factories and Warehouses
  • Office and Retail Complexes
  • Transportation Facilities
  • Hotels and Conference Centers
  • Theaters and Auditoriums

Why Choose Corbin Russwin Quality?

Corbin Russwin ED4000 Series rim exit devices are built to ANSI A156.3 Type 4 Grade 1 standards and listed under UL 305 for panic hardware safety, delivering the heavy-duty construction and quiet operation demanded by high-use commercial environments. The ED4200 WO48 is backed by a 5 Year Limited warranty, providing long-term confidence for facility managers and installers. Engineered for narrow stile glass, aluminum, and metal doors, this device combines ADA compliance, barrier-free design, and broad trim compatibility for versatile, code-compliant performance across demanding applications.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED4000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Exit Only, Accepts Trim
Wood Door Compatible:
No
Product Model:
ED4200
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED4200 630 W048 – Frequently Asked Questions

1) What door thickness does the ED4200 rim exit device work on?
1-3/4 inches, which is the standard commercial door thickness. Corbin Russwin publishes optional prep for 2 inch (D200) and 2-1/4 inch (D214) doors on the ED series, so if your opening is thicker than 1-3/4 that option has to be specified at order.
2) Is a 48 inch exit device too long for my door?
The 48 inch ED4200 is the long bar option, intended for wide leaves. The standard 36 inch bar covers 30 to 36 inch doors, and the bar can be field cut, so a 48 inch device is what you order when the leaf is wider than that range. Measure the leaf before you commit; a 48 inch bar on a 36 inch door is the wrong pick.
3) Does the ED4200 need to be ordered handed?
No. The ED4200 ships non-handed, so one device covers left and right hand openings. The exception is lever trim and double cylinder devices, which are handed and must be specified.
4) Will the ED4200 latch into a strike I already have on the frame?
Plan on using the strike supplied with it. The rim latchbolt is a stainless pullman type with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch, and it is engineered to a surface-mounted 3/8 inch roller strike with a positive locking plate and shims. Matching that roller strike geometry is what gives you reliable latching, so reusing an unknown strike is a gamble.
5) What dogging options do I have to choose from on the ED4200?
Three ways to go. Standard is single point 1/4-turn hex key dogging, which lets you hold the latch retracted for business hours. M52 gives you cylinder dogging, ordered less cylinder so you supply a keyed cylinder to match your system. M51 is less dogging, which is what you order when the device is going on an opening where dogging is not permitted.
6) Does the ED4200 come with outside trim, or do I order that separately?
The ED4200 is an exit-only device that accepts trim; the lever or pull for the outside is a separate order. It takes the Corbin Russwin function trim range, including the Museo and Vineyard collections, so pick the function (night latch, classroom, passage, etc.) that the opening calls for and order it alongside the device.
7) My narrow stile door is wood - can I use the Corbin Russwin ED4200?
No. The Corbin Russwin ED4200 is not wood door compatible; it is built for narrow stile glass, aluminum and metal doors. For a wood door, the Adams Rite 8700 Series 30-inch narrow stile rim device is listed as wood door compatible and is Grade 1 and non-fire-rated, and the Adams Rite 3700 Series 30-inch is wood door compatible with a fire rating.
8) What is the closest narrow stile Grade 1 rim exit device to the Corbin Russwin ED4200 if I need a fire-rated opening instead?
The Corbin Russwin ED4200 is not fire rated, so for a fire-rated narrow stile opening the Adams Rite 3700 Series 30-inch is the closer match: it is a fire-rated Grade 1 narrow stile rim exit device, and it is also listed as wood door compatible. The Dexter ED1000 Series fire-rated rim device is another Grade 1 fire-rated rim option. Both carry a fire rating the ED4200 does not.
9) I need a 48 inch rim exit device but my door is a wide stile aluminum or metal door - what should I use instead of the Corbin Russwin ED4200 WO48?
The ED4200 WO48 is a 48-inch narrow stile device. For a wide stile door at the same 48-inch length, the Dormakaba DORMA 9300A is a Grade 1 heavy duty wide stile rim device in 48 inches with a 1-3/4 to 2-1/4 inch door thickness range, and the CRL Jackson 1095 Series 48-inch crossbar is a wide stile rim panic device. The Cal-Royal A9820 is also a 48-inch wide rim exit device, exit only, listed at Grade 2.
10) My opening has a 4 inch stile - does the Corbin Russwin ED4200 fit, or do I need something else?
The Corbin Russwin ED4200 needs a minimum stile width of 4-1/2 inch, so a 4 inch stile is under its requirement. The SDC S6136 Spectra is built for a 4 inch wide stile and lists a 1-3/4 to 2 inch door thickness range. If your stile is 4-1/2 inch or greater, the ED4200 is available with 2 inch or 3-1/2 inch stile width options.
11) What 48 inch rim exit device should I use if the opening is fire rated and the Corbin Russwin ED4200 WO48 is not?
The Corbin Russwin ED4200 WO48 is a 48-inch device without a fire rating. For a 48-inch fire-rated opening, the Marks USA M9900F 48-inch is a fire-rated rim panic device, exit only, with a panic protector end cap, for non-wood doors. Its 36-inch counterpart, the M9900F-36, covers narrower fire-rated openings.
12) How far does the ED4200 pushpad stick out from the door face?
Projection is 3-1/4 inches (83mm) when active and 2-3/4 inches (70mm) when dogged down. That matters where the door swings into a corridor with a clear width requirement or where a leaf sits close to a return wall.
13) Should I use a rim exit device like the ED4200 or a vertical rod device?
A rim device latches into a strike on the frame or into a mullion, so it is the simpler, lower maintenance choice on a single leaf or on a pair with a mullion. Go to a vertical rod device when you have a pair of doors with no center mullion and need each leaf to latch top and bottom on its own. Corbin Russwin covers that in the same family with the ED5400 surface vertical rod, which latches with a 3/4 inch throw pullman at the head and a 5/8 inch throw deadbolt at the sill.
14) What other narrow stile rim exit devices could I use instead of the Corbin Russwin ED4200?
Several Grade 1 narrow stile rim devices cover the same kind of aluminum or glass opening. The TownSteel ED3700 and ED8900 are Grade 1 heavy duty narrow stile rim devices, the Detex 40 Advantex is an extra heavy duty Grade 1 narrow stile device, and Falcon's 1590EO and 1790EO are Grade 1 narrow stile exit-only devices rated for 1-3/4 inch doors. The Adams Rite 8800 is another narrow stile option and is listed for 1-3/4 to 2-1/4 inch doors if your leaf is thicker than 1-3/4.
15) My door has a wide stile, not a narrow one. Is the ED4200 still the right device?
It will physically mount on a wider stile, but you are paying for narrow stile geometry you do not need and the trim range is narrow-stile oriented. On a wide stile hollow metal or glass-front leaf, a wide stile device is the more common spec: the Von Duprin 22 Series is a Grade 1 wide stile pushpad rim device for 1-3/4 inch doors, and the DORMA 9300 is a Grade 1 wide stile rim device that covers 1-3/4 to 2-1/4 inch doors in a 48 inch length.
16) Is the ED4200 heavy duty enough for a school or hospital entrance?
It is built for that traffic. ANSI/BHMA A156.3 Grade 1 is the top commercial grade, the chassis is cold-forged steel with electroplated corrosion resistance, and the device is specified for schools, healthcare, government buildings, transportation facilities, and retail. Free wheeling levers on the trim add vandal resistance where the outside pull takes abuse.
17) What is the stile width option on the ED4200 and which one do I pick?
Two stile width builds are offered, 2 inch and 3-1/2 inch, and you pick the one that matches the lock stile on your aluminum door. Measure the stile face before ordering, since the mounting geometry differs between the two.
18) What is the difference between the Corbin Russwin ED4200 and the Stanley QED211 or Dormakaba QED200?
All three are Grade 1 narrow stile rim exit devices for non-wood doors. The Corbin Russwin ED4200 comes in a 48-inch length with single-point 1/4-turn hex key dogging standard, cylinder dogging or less-dogging variants, and a 1-3/4 inch door thickness. The Stanley QED211 is a Grade 1 heavy duty narrow stile rim device with hex-key dogging in the QED200 Series, and the Dormakaba QED200 is a Grade 1 heavy duty 36-inch device supplied with a 7 ft rod.
19) Is the Sargent 8504 a substitute for the Corbin Russwin ED4200?
Not directly. Both are Grade 1 narrow design rim exit devices, but the Sargent 8504 is a night latch function device, while the Corbin Russwin ED4200 is exit only and accepts trim separately. If you want key-retracting outside access, the 8504 arrives in that function; with the ED4200 you select the Corbin Russwin function trim to suit.
20) Is a concealed vertical rod device like the Hager 4601 interchangeable with the Corbin Russwin ED4200?
No. The Corbin Russwin ED4200 is a rim device that latches to a surface-mounted strike on the frame. The Hager 4601 Series 36-inch is a Grade 1 narrow stile concealed vertical rod device, which latches top and bottom and requires a door prepped for concealed rods; the Hager 4501 Series is the wide stile pushpad version of that concealed vertical rod design. They share the narrow stile pushpad look but not the door and frame prep.
21) Is the SDC PSB560 pressure sense bar an alternative to the Corbin Russwin ED4200?
They solve different problems. The Corbin Russwin ED4200 is a Grade 1 mechanical rim exit device with a latchbolt that secures the door. The SDC SureExit PSB560 Series 36-inch is a pressure sense bar with tri-failsafe technology, and the SDC MSB550 Series 36-inch is a mechanical switch bar that releases an electromagnetic lock - both fit narrow or wide stile, but they signal a lock to release rather than carrying a latchbolt of their own.
22) What finishes does the ED4200 narrow stile exit device come in?
Nine: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 630 satin stainless steel, and 722 black oxidized bronze oil-rubbed. For a building where the other openings are already standardized, 630 satin stainless is the usual commercial match and 626-family satin chrome looks are covered by 625 and 619.
