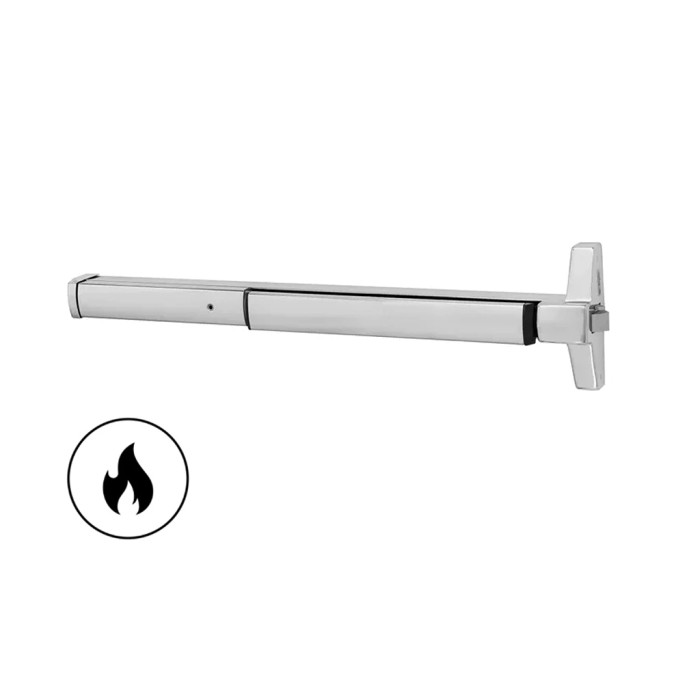

Corbin Russwin ED4200 - Fire Rated 48" Narrow Stile Rim Exit Device

Corbin Russwin ED4200 Grade 1 - Fire Rated 48" Narrow Stile Rim Exit Device

(No reviews yet) Write a Review

Model: ED4200A 630 W048
$3,264.00
$2,292.76
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,264.00
$2,292.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED4200A WO48 Fire Rated 48" Narrow Stile Rim Exit Device

Commercial-Grade Narrow Stile Rim Exit Device for High-Use Applications

The Corbin Russwin ED4200A WO48 is a fire-rated, 48" narrow stile rim exit device from the ED4000 Series, engineered for demanding commercial environments including full glass, aluminum, and metal doors. Designed to meet ANSI A156.3 Type 4 Grade 1 requirements and ADA accessibility standards per ANSI A117.1, this device delivers quiet, reliable egress performance on 1-3/4" thick doors. Approved by the California State Fire Marshal pursuant to Section 13144.1 of the California Health and Safety Code, and listed by UL/cUL for safety as panic hardware per UL 305, the ED4200A WO48 is a trusted solution for new construction and renovation projects alike.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Schools and Universities
  • Healthcare Facilities
  • Government and Municipal Buildings
  • Factories and Warehouses
  • Office and Retail Complexes
  • Transportation Facilities
  • Hotels and Conference Centers
  • Religious Facilities
  • Theaters and Auditoriums

Why Choose Corbin Russwin Quality?

Corbin Russwin ED4000 Series rim exit devices are engineered to meet the rigorous demands of commercial environments, achieving ANSI A156.3 Type 4 Grade 1 certification and full UL/cUL listing per UL 305 panic hardware standards. The ED4200A WO48 is fire rated and approved by the California State Fire Marshal, making it a code-compliant choice for fire-rated door assemblies. Backed by a 5 Year Limited warranty and built with heavy-duty, through-bolted construction, this device delivers the dependable performance and long-term reliability that high-use commercial facilities require.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED4000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Exit Only, Accepts Trim
Wood Door Compatible:
No
Product Model:
ED4200
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED4200A 630 W048 – Frequently Asked Questions

1) Will the Corbin Russwin ED4200 48 inch rim exit device fit an aluminum storefront door with a narrow stile?
Narrow stile is what the ED4200 is built for, but there is a floor: minimum stile width is 4-1/2 inches (114mm). On a storefront door with a stile narrower than that the device will not mount. It is intended for full glass, aluminum and metal doors at 1-3/4 inch thickness, and it is not rated for wood doors.
2) Can I use this Corbin Russwin exit device on a 2 inch thick door?
Standard build is 1-3/4 inch (44mm). For thicker doors the ED4000 Series offers the D200 option for 2 inch doors and D214 for 2-1/4 inch, which has to be specified on the order rather than adjusted in the field.
3) Is this exit device approved for a 3 hour fire rated door assembly?
Yes. The ED4200 is UL/cUL listed as panic hardware to UL 305 and as 3 hour fire exit hardware, compliant with NFPA 101 and NFPA 80, and approved by the California State Fire Marshal. Note that fire exit hardware cannot be dogged, so on a fire door you order the M51 less dogging option.
4) Will this latch into the strike that is already on my frame?
Plan on using the strike that ships with it. The ED4200 uses a stainless steel pullman latchbolt with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch, and it is supplied with a surface-mounted 3/8 inch roller strike with a positive locking plate and shims. The shims let you take up gap variation on an existing aluminum frame.
5) Do I have to order a hand for this rim device?
No hand needed for the standard exit-only device, it is non-handed. Handing only comes into it if you add a lever trim or a double cylinder version, both of which are handed. So specify the hand when you pick lever trim, not for the bar itself.
6) What are the dogging choices on the ED4200 and which one do I need?
Three ways to go. Standard is single-point 1/4-turn hex key dogging, which holds the latch retracted for free push-pull traffic during business hours. M52 gives cylinder dogging (cylinder not included, so order it separately). M51 is less dogging, which is what a fire rated door assembly requires. Electric dogging is also offered in the ED4000 Series.
7) I need a rim exit device on a wood door, will this one work?
No. The ED4200 is not wood door compatible, it is built for full glass, aluminum and metal doors. For a wood door, the Adams Rite 3700 Series is fire rated Grade 1 narrow stile and listed as wood door compatible, and the non-rated Adams Rite 8700 Series is the equivalent where no fire rating is required.
8) What is the closest fire-rated alternative to the Corbin Russwin ED4200 48-inch rim exit device?
The Marks USA M9900F-48 is a 48-inch fire rated rim panic exit device in an exit only function, making it the nearest match on both length and fire rating. The Corbin Russwin ED4200 is a Grade 1 fire rated narrow stile device with an Exit Only, Accepts Trim function, so it takes outside trim later if the opening needs keyed entry; the Marks unit is listed exit only. Both are for non-wood doors.
9) What narrow stile rim exit device should I use on a 2-1/4 inch thick aluminum door?
The Adams Rite 8800 Series in 30-inch covers a 1-3/4 inch to 2-1/4 inch door thickness range as a Grade 1 narrow stile rim device for non-wood doors, though it is not fire rated. The Corbin Russwin ED4200 as configured is a 1-3/4 inch door device. If the opening is a fire-rated assembly, the thickness change has to be handled within a fire-rated device instead.
10) Is a wide stile rim exit device a substitute for the Corbin Russwin ED4200?
No. The Corbin Russwin ED4200 is a narrow stile device built for full glass, aluminum and metal doors with a 4-1/2 inch minimum stile. Wide stile devices such as the Von Duprin 22-3FT, the DORMA 9300A 48-inch, or the TownSteel ED9700 36-inch are Grade 1 rim devices but are wide stile and will not fit a narrow aluminum stile. For a narrow stile opening, stay with narrow stile devices such as the Detex 40 Advantex or the TownSteel ED8900.
11) Which devices should not be treated as drop-in replacements for the Corbin Russwin ED4200?
Several items that look adjacent are not rim panic latches. The Detex Advantex 00 Series is a dummy exit device, the Sargent 12-8810-LTRIM is listed in a dummy function, the SDC MSB550 is a mechanical switch bar and the SDC PSB560 is a pressure sense bar working with electromagnetic locking rather than a latchbolt, and the Dexter ED1500-EXTRD-SP is a 12 inch extension rod assembly. The Corbin Russwin ED4200 is a latching Grade 1 fire rated rim exit device.
12) How much does this device stick out into the doorway when it is installed?
Projection is 3-1/4 inches (83mm) with the bar active and 2-3/4 inches (70mm) when dogged. Worth checking against tight vestibules, adjacent walls, or a second leaf swinging past.
13) Which finishes can I get so it matches the rest of the doors in my building?
Nine finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 630 satin stainless steel, and 722 black oxidized bronze oil-rubbed. 630 satin stainless is the usual pick for matching existing commercial aluminum entrances.
14) Should I use a narrow stile rim device like this or a concealed vertical rod device?
A rim device like the ED4200 latches into a surface strike on the frame, which is the simplest install and the easiest to service on a single aluminum or glass leaf. Concealed vertical rod is what you go to when the rods must be hidden inside the door and you are latching top and bottom, typically on a pair without a mullion. ZenSupply stocks CVR alternatives such as the Hager 4601 narrow stile CVR and the wide stile Hager 4501. On a pair of doors, a rim device needs a mullion so the second leaf has something to latch into.
15) Is the ED4200 Grade 1 and does it meet ADA for a school or healthcare corridor?
It is certified to ANSI/BHMA A156.3 Type 4 Grade 1, the heaviest commercial duty class, and the lever trims and pulls comply with ADA, with the device meeting accessibility per ANSI A117.1. That combination plus the 3 hour fire exit listing is why it shows up in schools, hospitals, government buildings and transportation facilities.
16) I want a deadbolt-style latch instead of a pullman latch for better security, what do I order?
The SecureBolt option covers that. On the SecureBolt build (ED5200S) the latchbolt is deadbolt-style with a 3/4 inch projection by 1 inch wide, positively deadlocked by an auxiliary bolt, rather than the standard 3/4 inch stainless pullman latch. It is the choice where you are worried about the latch being pried or shimmed.
17) Is the Arrow FS1250 a substitute for the Corbin Russwin ED4200?
The Arrow FS1250 is a fire rated 32-inch rim exit device for 1-3/4 inch non-wood doors, so it matches the Corbin Russwin ED4200 on fire rating and door thickness. The difference is bar length: the ED4200 covers 48 inch openings, while the Arrow is a 32 inch device. Match the bar length to the door width before substituting.
18) Can I use the Sargent 8504 in place of the Corbin Russwin ED4200?
Only if you want a night latch opening. The Sargent 8504 is a Grade 1 narrow design rim exit device with a night latch function, meaning keyed entry from outside with no other trim option. The Corbin Russwin ED4200 is Exit Only, Accepts Trim, so the outside function is set by the trim you pair with it.
19) What Grade 1 narrow stile rim device has hex key dogging like the Corbin Russwin ED4200?
The Stanley Security QED200 Series is a Grade 1 heavy-duty narrow stile rim exit device with hex-key dogging, and the Dormakaba QED200 is the same series in a Grade 1 heavy duty narrow configuration. The Corbin Russwin ED4200 ships standard with single point 1/4 turn hex key dogging and is also offered less dogging or with cylinder dogging.
20) If the opening needs concealed vertical rods instead of a rim device, what replaces the Corbin Russwin ED4200?
The Hager 4601 Series 36 inch is a Grade 1 concealed vertical rod narrow stile exit device, and the Hager 4501 Series 36 inch is the wide stile pushpad concealed vertical rod version. Both latch top and bottom into the frame and floor rather than into a surface strike; the Corbin Russwin ED4200 is a rim device using a surface-mounted 3/8 inch roller strike.
21) What is a Grade 2 option compared with the Corbin Russwin ED4200 for a 48-inch door?
The Cal-Royal 5500 is a 48 inch wide rim exit device with a push bar carrying a Grade 2 heavy duty rating and no fire rating, and the Cal-Royal A9820 is a 48 inch rim exit device, exit only, also Grade 2 heavy duty and not fire rated. The Corbin Russwin ED4200 is ANSI Grade 1, fire rated, and narrow stile, which is what a fire-rated aluminum opening requires.
22) Can I get a glow-in-the-dark touchpad for egress path marking?
Yes, the PathLite photoluminescent touchpad cover is an available option on these devices. It is the usual answer where a code official or facility standard calls for a visible egress path marking at the door hardware.
