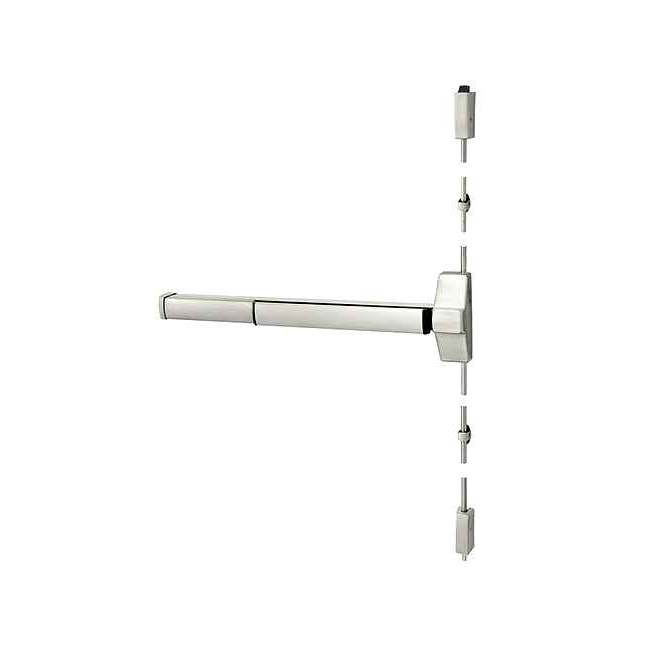

Corbin Russwin ED4400 Grade 1 36" Narrow Stile Surface Vertical Rod Exit Device

Corbin Russwin ED4400 Grade 1 36" Narrow Stile Surface Vertical Rod Exit Device

(No reviews yet) Write a Review

Model: ED4400 630
$3,654.00
$2,223.82
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,654.00
$2,223.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED4400 36" Narrow Stile Surface Vertical Rod Exit Device Grade 1, Field-Reversible Handing

Commercial-Grade Surface Vertical Rod Exit Device for Narrow Stile Aluminum, Glass, and Metal Doors

The Corbin Russwin ED4400 is a heavy-duty surface vertical rod exit device engineered for narrow stile full glass, aluminum, and metal doors in high-use and high-abuse commercial environments. Part of the ED4000 Series, this 36" device accommodates doors from 30" to 36" (762mm–914mm) and features a minimum 2" (51mm) stile width requirement, making it ideal for demanding narrow stile applications. Standard door thickness is 1-3/4" (44mm), with optional configurations available for 2" (51mm) and 2-1/4" (57mm) doors. The device meets ANSI A156.3 Type 4 Grade 1 requirements, satisfies UL/cUL safety requirements per UL 305, and has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Schools and Universities
  • Healthcare Facilities
  • Government and Municipal Buildings
  • Factories and Warehouses
  • Office and Retail Complexes
  • Transportation Facilities
  • Hotels and Conference Centers
  • Religious Facilities
  • Theaters and Auditoriums

Why Choose Corbin Russwin Quality?

Corbin Russwin ED4000 Series surface vertical rod exit devices deliver professional-grade reliability with heavy-duty construction, 1/2" O.D. tubular brass, bronze, or stainless steel vertical rods, and compliance with ANSI A156.3 Type 4 Grade 1 and UL 305 panic hardware standards. Backed by a 5 Year Limited warranty, these devices are engineered for demanding commercial applications where dependable performance, ADA compliance, and code-compliant egress are essential.

Product Specs

Series:
ED4000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Surface Vertical Rod
Subcategory:
Surface Vertical Rod
Stile Width:
2"
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Exit Only, Accepts Trim
Product Model:
ED4400
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Reversible
Door Thickness Range:
1-3/4"
Product Length:
36"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED4400 630 – Frequently Asked Questions

1) Can the ED4400 secure a pair of doors with no center mullion?
That is what a surface vertical rod is for. The ED4400 latches at the head and at the threshold rather than into a strike on the jamb, so a pair of doors can be secured without a removable mullion between them. A rim device would need that mullion. Order one device per leaf.
2) Do I have to specify handing when ordering the ED4400 exit device?
No, the ED4400 ships non-handed and is field reversible, so one part number covers left and right hand openings. Handing only becomes a factor if you add lever trim or a double cylinder, which are handed. For exit only, stock one device and use it on either leaf of a pair.
3) What is the difference between standard hex key dogging, M51, and M52 on the ED4400?
Three dogging choices, and it changes how the door behaves during business hours. Standard is single point 1/4-turn hex key dogging, which holds the latches retracted so the door pushes free. M51 is less dogging, which is what you order when the device must relatch every time. M52 is cylinder dogging supplied less cylinder, so you dog it with a key instead of a hex wrench and you have to supply the mortise cylinder separately.
4) I have wide stile hollow metal doors, not aluminum. Should I buy the ED4400?
No need to. The ED4400 is built for narrow stile, and on a wide stile door you get a wide stile device with a longer chassis and better pushpad coverage. From what ZenSupply stocks, the Von Duprin 2227 in the 22 Series, the Falcon 25-V-EO, and the BEST Precision 2201 are wide stile surface vertical rod devices at 36 inches. On wood doors, the TownSteel ED8927 is listed as wood door compatible.
5) The door has a wide stile, not a narrow one. What replaces the Corbin Russwin ED4400 there?
The ED4400 is built for narrow stile doors with a 2 inch minimum stile. On a wide stile door, the Von Duprin 2227-3FT is a Grade 1 wide stile surface vertical rod device for 36 inch doors on 1-3/4 inch thickness. The Falcon 25-V-EO 3 ft is Grade 1 wide stile, exit only, 1-3/4 inch. The TownSteel ED8927 is a Grade 1 wide stile device at 36 inch by 84 inch that is wood door compatible.
6) The opening is a fire rated door. What surface vertical rod device should be used instead of the Corbin Russwin ED4400?
The ED4400 configuration carries no fire rating, so a fire rated opening needs a device listed for it. The Adams Rite 3100 Series 30 inch is Grade 1 and fire rated on a 1-3/4 inch door. The TownSteel EF9727 is a fire rated Grade 1 heavy duty wide stile device sized 36 inch by 84 inch and compatible with wood doors. The Arrow S1150 30 inch is fire rated, exit only, 1-3/4 inch, and suits narrow or wide stile. Match the device's listing to the door's label before ordering.
7) Which surface vertical rod devices look like a substitute for the Corbin Russwin ED4400 but will not work on a narrow stile door?
Several Grade 1 surface vertical rod devices sit in the same size class but are built for wide stile doors, so they will not land on the 2 inch stile the ED4400 is designed for. The Sargent 2727 and Sargent 3727 are both Grade 1 wide stile exit only devices, and the Sargent 12-8710 is a wide stile device whose function is dummy rather than exit only. The Adams Rite 8100 Series 30 inch and the Arrow 3700 Series 30 inch are also wide stile. For the Adams Rite line, the narrow stile counterpart is the 8200 Series 30 inch.
8) The opening is a wood door. Can the Corbin Russwin ED4400 be used, or is there a better vertical rod choice?
The ED4400 is engineered for narrow stile full glass, aluminum, and metal doors. For wood openings, the TownSteel ED3727 is a Grade 1 narrow stile surface vertical rod device at 36 inch by 84 inch listed as wood door compatible, and the TownSteel ED8927 is the Grade 1 wide stile equivalent, also wood door compatible. Where the wood door is fire rated, the TownSteel EF9727 is the fire rated Grade 1 heavy duty version. By contrast, the Von Duprin 7527-3ft and 7827-3ft narrow stile devices are listed as not wood door compatible.
9) The threshold will not take a bottom rod. Is there an alternative to the Corbin Russwin ED4400 that avoids one?
The ED4400 is a surface vertical rod device with both a top pullman latch and a 5/8 inch throw bottom deadbolt, so it engages the floor. Where a bottom rod is unwanted, the Orca OED56 Series 36 inch is a standard duty vertical rod exit device supplied less bottom rod, exit only, for 1-3/4 inch doors, in an aluminum finish and non handed. It is not fire rated.
10) Does the ED4400 come with outside trim, or do I order that separately?
Exit only as supplied. The ED4400 accepts trim but does not include it, so if you need outside key or lever access you order the trim as a separate line. Without trim the door is push to exit and has no outside operation.
11) How is the Corbin Russwin ED4400 different from the Von Duprin 3327A or the Falcon 19-V?
All three are Grade 1 narrow stile surface vertical rod devices for 1-3/4 inch doors, so any of them addresses the same narrow stile storefront opening. The Von Duprin 3327A is the 33/35 Series grooved case; the Falcon 19-V-EO is the 19 Series exit only. Among narrow stile peers ZenSupply also carries the TownSteel ED3727 and the Adams Rite 8200 Series. Where the ED4400 differs on the order form is the breadth of dogging and electrified choices, including cylinder dogging and motor latch retraction.
12) Will the ED4400 fit a 2 inch thick door?
Not as standard. The ED4400 is set up for 1-3/4 inch doors, which is the normal commercial thickness. Thicker doors take a specified option: D200 for 2 inch and D214 for 2-1/4 inch. Measure the leaf before ordering, because the standard device will not make up the difference in the field.
13) Is there a simpler or lighter duty surface vertical rod device than the Corbin Russwin ED4400 for a low traffic door?
The ED4400 is a Grade 1 commercial device. Where a lower duty level is acceptable, the Dexter ED2000 Series is a Grade 2 surface vertical rod panic device, and the TownSteel TS5100 at 36 inch by 84 inch is a Grade 2 heavy duty wide stile device. Design Hardware also splits its line by duty: the 2000V 33 inch is standard duty while the 1000V 33 inch is heavy duty. None of those four is fire rated. Grade 2 devices are tested to a lower ANSI cycle and strength threshold than Grade 1, so confirm the facility's spec allows it.
14) We need hex key dogging on a narrow stile vertical rod device. What are the options besides the Corbin Russwin ED4400?
The ED4400 ships standard with single point 1/4 turn hex key dogging, with cylinder dogging and less dogging also configurable. The Von Duprin 7827-3ft is a 3 ft Grade 1 narrow stile surface vertical rod device specified with hex key dogging on a 1-3/4 inch door. The Von Duprin 7527-3ft is the 75 Series Grade 1 narrow stile 3 ft device on the same door thickness. Both are non fire rated, like the ED4400.
15) Does a reversible surface vertical rod device exist besides the Corbin Russwin ED4400 so one part number covers both hands?
The ED4400 is reversible in handing, so a single device serves left and right hand openings. Comparable non handed or reversible options include the BEST Precision 5201 Series 36 inch, described as reversible, the Von Duprin 2227-3FT 36 inch wide stile device, described as non handed, the Sargent 2727, described as reversible, and the Orca OED56 Series 36 inch, described as non handed. All but the Sargent 2727 are non fire rated.
16) How does the Corbin Russwin ED4400 differ from the BEST Precision 2201 for a 36 inch opening?
Both are 36 inch surface vertical rod devices that are not fire rated. The BEST Precision 2201 Series is a wide stile design, while the ED4400 is narrow stile with a 2 inch minimum stile width and carries an ANSI Grade 1 rating with exit only function that accepts trim. The choice comes down to the stile the door actually has.
17) What finishes does the Corbin Russwin ED4400 exit device come in?
Eleven, and each is available with any of the three dogging choices: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. For matching a run of storefront doors, 630 and 628-family aluminum tones are the usual match on anodized aluminum; 630 satin stainless is the closest here.
18) How far does a surface vertical rod exit device stick out into the opening?
The ED4400 projects 3-1/4 inches from the door face when active and 2-3/4 inches when dogged. That matters in a tight vestibule or where two leaves swing toward each other, since the projection is what determines the clear passage you lose at the push bar.
