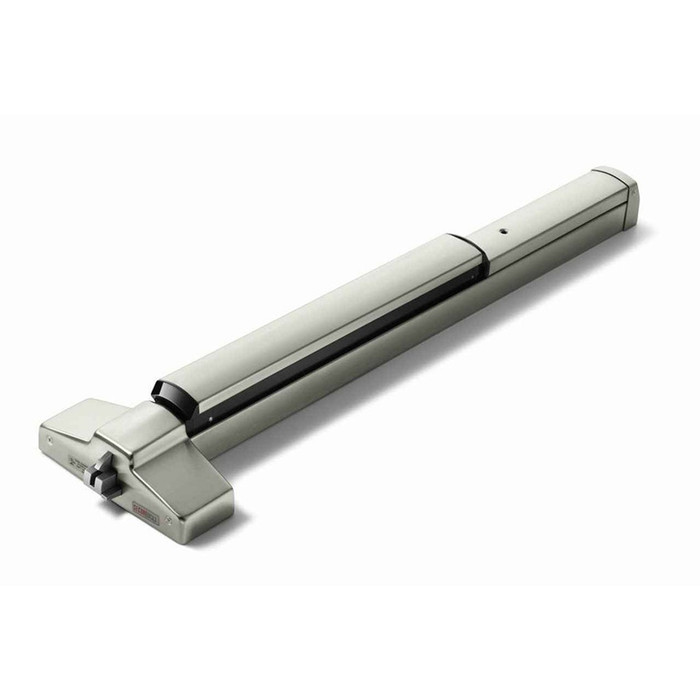

Corbin Russwin ED5200S 36" SecureBolt Rim Exit Device

Corbin Russwin ED5200S Grade 1 36" SecureBolt Rim Exit Device

(No reviews yet) Write a Review

Model: ED5200S 613
$2,714.50
$713.43
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,714.50
$713.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5200S SecureBolt Rim Exit Device 36" Wide Stile Grade 1

High-Security SecureBolt® Rim Exit Device for Commercial Wide Stile Applications

The Corbin Russwin ED5200S SecureBolt® Rim Exit Device is a professional-grade, wide stile exit device engineered for demanding commercial life-safety and security applications. Featuring a deadbolt-style latchbolt that significantly resists pull from the exterior, the SecureBolt® design reduces door and frame separation and prevents the door from being forced open. The standard 36" (914mm) bar is field-cuttable to fit doors from 30" to 36" (762mm–914mm), with optional 24" (610mm) and 48" (1219mm) bar configurations available. Requiring a minimum stile width of 4-1/2" (114mm) and standard door thickness of 1-3/4" (44mm), this device is BHMA A156.2, Series 4000, Grade 2, UL Listed with a 3-Hour Fire Rating and carries a Grade 1 designation, backed by a 5-Year Limited warranty.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Retail Establishments and Shopping Complexes
  • Industrial Facilities, Factories, and Warehouses
  • Hotels and Hospitality Properties
  • Government and Municipal Buildings

Vandal-Resistant Design

The ED5200S SecureBolt® features a deadbolt-style latchbolt that significantly resists pull from the exterior, reducing door and frame separation and preventing the door from being forced open. When paired with 900 series heavy-duty trim—including a 13/16" beveled escutcheon, Free Wheeling lever, and flush cylinder—and optional high-security Pyramid cylinders, the ED5200S delivers a comprehensive high-security solution for demanding commercial environments.

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices are engineered to exceed industry standards, with the ED5800 concealed vertical rod device independently certified to 3.25 million successful cycles—more than 6 times the required benchmark—demonstrating the exceptional durability of the entire product line. The ED5200S SecureBolt® Rim Exit Device is backed by a 5-Year Limited warranty and carries BHMA A156.2, Series 4000, Grade 2, UL Listed certification with a 3-Hour Fire Rating, ensuring reliable life-safety performance in the most demanding commercial applications.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
UL Listing Type:
BHMA A156.2, Series 4000, Grade 2, UL Listed (3 Hour Fire Rating)
Stile Type:
Wide Stile
Lock Function:
Exit Only, Accepts Trim
Wood Door Compatible:
No
Product Model:
ED5200SA
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
36"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5200S 613 – Frequently Asked Questions

1) What is the minimum stile width for a Corbin Russwin ED5200S rim exit device?
4-1/2 inches. The ED5200S is a wide stile device, so an aluminum storefront door with a 1-3/4 or 2 inch stile will not take it. On narrow stile glass front openings you want a narrow stile rim device instead, such as the Adams Rite 8800 Series or the TownSteel ED3700.
2) Can I put a Corbin Russwin ED5200S on a wood door?
No. The ED5200S is not rated for wood door applications, it is a hollow metal and aluminum door device. If the opening is a wood door, look at the Adams Rite 3700 or 8700 Series rim devices, both of which are listed as wood door compatible.
3) Does the ED5200S work on a 2 inch thick door?
Standard build of the ED5200S is for 1-3/4 inch doors, which is the usual commercial thickness. Thicker doors are handled with a factory option: D200 for 2 inch and D214 for 2-1/4 inch. That has to be specified on the order, it is not a field adjustment.
4) What makes the SecureBolt version different from a standard rim exit device?
The latch. A standard ED5200 rim device uses a stainless pullman latchbolt with a 3/4 inch throw and a deadlocking auxiliary latch. The ED5200S SecureBolt swaps that for a deadbolt-style bolt, 3/4 inch projection by 1 inch wide, positively deadlocked by an auxiliary bolt. It resists being pulled from the exterior and cuts down on door and frame separation when someone tries to pry the pair apart. If your problem is forced entry on an exterior exit door rather than just egress, that is the reason to specify the S.
5) Do I have to specify handing when ordering a Corbin Russwin ED5200S?
The device itself is non-handed, so one part number covers left and right hand openings. Handing only enters the picture if you add lever trim or a double cylinder, both of which are handed. Exit only with no trim, or with a pull, and you can order without stating hand.
6) Does the ED5200S come with outside trim, or do I order a lever separately?
The ED5200S is an exit only device that accepts trim, meaning the bar and latch ship without exterior trim and any lever, pull, or cylinder is a separate line. Corbin Russwin's 900 series heavy duty trim is what pairs with it for high security work, with a 13/16 inch beveled escutcheon, a free wheeling lever that spins under attack rather than transmitting force, and a flush cylinder. If you only need egress and no outside entry, no trim is required at all.
7) I need to secure a pair of doors with no mullion. Is a rim device like the ED5200S the right choice?
No. A rim device latches into a strike on the frame or on a mullion, so a pair of doors without a center mullion needs either a removable mullion added or a vertical rod device that latches at the head and the threshold. Within the same Corbin Russwin family the ED5400 surface vertical rod covers that, with a 3/4 inch throw pullman latch at the top and a 5/8 inch throw deadbolt at the bottom. Concealed rod options exist too if you want the rods hidden in the door.
8) What is the closest wide stile Grade 1 rim exit device to the Corbin Russwin ED5200S if the ED5000 Series is not an option?
The Von Duprin 22-3FT is the nearest match on the core dimensions: it is a 36 inch wide stile pushpad rim device, non-handed, Grade 1, for 1-3/4 inch doors, the same door thickness the ED5200S is built around. The ED5200S carries the SecureBolt deadbolt-style latchbolt, 3/4 inch projection by 1 inch wide with positive deadlocking by an auxiliary bolt, which is the security feature that distinguishes it. If the opening needs a 36 inch wide stile rim bar and hex key dogging is the priority rather than the deadbolt latch, the TownSteel ED1100 in 36 inch and the Detex 10 Advantex in 36 inch are both Grade 1 wide stile rim devices in the same size.
9) The ED5200S needs 4-1/2 inch of stile. What rim exit device works on an aluminum storefront door with less stile than that?
The ED5200S is a wide stile device and requires a minimum stile width of 4-1/2 inch, which rules it out on typical narrow stile aluminum storefront. Narrow stile rim devices sized for those doors include the Adams Rite 8700 Series in 30 inch and the Adams Rite 8800 Series in 30 inch, both Grade 1 with starwheel interlocking, the Falcon 19-R in 36 inch, Grade 1 exit only for 1-3/4 inch doors, and the TownSteel ED3700 and ED8900, both 36 inch Grade 1 narrow stile. The Adams Rite 8800 covers 1-3/4 inch through 2-1/4 inch door thickness if the storefront is thicker than standard.
10) Which rim exit device should be specified for a labeled fire door instead of the Corbin Russwin ED5200S?
Fire-rated rim devices in the same size class include the Marks USA M9900F in 36 inch and 48 inch, both exit only with a Panic Protector end cap, the Orca OED85 Series in 36 inch, exit only, the Dexter ED1000 Series fire rated Grade 1 rim device, the Arrow FS1250 in 32 inch, and the Adams Rite 3700 Series in 30 inch, a Grade 1 narrow stile fire-rated rim device that is also wood door compatible. Fire exit hardware must be specified fire rated from the factory, since dogging is not permitted on a labeled opening, so match the leaf size to the device length rather than field cutting to fit.
11) What is the alternative to the ED5200S on a 48 inch door leaf?
The ED5200S bar is 36 inch as supplied and field cuttable down to fit 30 inch to 36 inch doors, with 24 inch and 48 inch bar configurations offered, so it is not the part to cut for a 48 inch leaf unless the longer bar is specified. Wide stile rim devices already sized for a 48 inch opening include the Sargent 2828 and Sargent 3828, both Grade 1 reversible wide stile exit only devices for 48 inch doors, the DORMA 9300 Series in 48 inch, Grade 1 wide stile exit only for 1-3/4 inch to 2-1/4 inch doors, the Marks USA M9900F in 48 inch, fire rated exit only, and the Dexter ED1000 Series in 4FT, Grade 1.
12) Which of the wide stile rim devices look like the ED5200S but will not do the same job?
Three to watch. The Detex Advantex 00 Series is a super-heavy-duty dummy exit device with a wide stile design, so it has no latching function at all and is used for the inactive leaf or a matching appearance. The Sargent 12-8810-LTRIM is a fire rated wide stile rim device with RX and MELR but a dummy function, so it likewise does not latch. The Sargent 8504 is a narrow stile rim device with a night latch function, meaning outside key access rather than the exit only, accepts trim arrangement of the ED5200S. If the door has to latch and secure, none of the three substitutes for the ED5200S with its SecureBolt deadlocking latchbolt.
13) How much does an ED5200S exit device stick out from the door face, and does it clear a wall or a gate swing?
Projection off the door is 3-1/4 inches with the bar at rest and 2-3/4 inches when the device is dogged down. Use the 3-1/4 inch figure when you check clearance against an adjacent wall, railing, or a second leaf, since that is the worst case in normal operation.
14) Can I hold an ED5200S unlocked during business hours?
Yes, it comes standard with single-point 1/4 turn hex key dogging, so a hex wrench holds the pushbar depressed and the door stays push-pull open through the day. Cylinder dogging and electric dogging are available if you would rather key it or drive it off the access control system instead of using a wrench.
15) What strike comes with the ED5200S and does it mount to the frame face?
It uses a surface-mounted roller strike with a 3/8 inch roller, a positive locking plate, and shims. Surface mount means no strike mortise cut into the frame, and the shims let you take up the gap so the deadbolt-style latch seats correctly. That matters on a retrofit where the existing frame prep is for something else.
16) Is the Corbin Russwin ED5200S Grade 1, and can I standardize a whole building on it?
Grade 1 is the designation on the ED5200S, the heaviest commercial duty tier. For a facility standard, the practical points are that the device is non-handed so it stocks as one part across left and right openings, the 36 inch bar cuts to cover every door from 30 to 36 inches, and it is offered in eleven finishes including 630 satin stainless, 626-family bright chrome 625, and BSP black suede powder coat, so it can be matched to existing hardware across a campus.
17) Is there a lighter duty rim exit device than the Corbin Russwin ED5200S for a low traffic back door?
The ED5200S is a Grade 1 commercial device with a cold-forged steel chassis and the SecureBolt deadbolt-style latchbolt, built for high-security openings. Where the opening does not need that, the Cal-Royal 5000 in 36 inch is a Grade 2 heavy duty rim device with a touch bar, and the Cal-Royal 5500 in 48 inch is Grade 2 heavy duty with a push bar. The Design Hardware 2000R in 33 inch is a standard duty wide stile rim device with hex key dogging, the same dogging method the ED5200S uses, and the Design Hardware 1000R in 33 inch is the heavy duty version of that bar. The Hager 4701 Series in 36 inch is a standard duty rim device with Grade 1 BHMA certification.
18) What device is used instead of the ED5200S when the opening calls for vertical rods rather than a rim strike?
The ED5200S is a rim device that latches into a surface-mounted 3/8 inch roller strike on the frame, which requires a strike location on the head or jamb. Where the door pair or opening calls for top and bottom latching instead, the Hager 4501 Series in 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, matching the ED5200S wide stile format, and the Hager 4601 Series in 36 inch is the Grade 1 narrow stile concealed vertical rod version. The Dormakaba QED200 in 36 inch is a Grade 1 heavy duty narrow device supplied with a 7 foot rod.
19) Is a crossbar panic device an acceptable substitute for the ED5200S touchpad device on a wide stile door?
Both fit wide stile openings but the operating hardware differs. The ED5200S is a touchpad device with a 36 inch bar and a 3-1/4 inch active projection, 2-3/4 inch when dogged, and it accepts trim. The CRL Jackson 1095 Series 48 inch crossbar rim panic device is a wide stile exit only crossbar, and the same 1095 line is offered in a paddle version as the 1095P. The CRL Jackson 1295 Series is a non-handed push pad rim panic device for wide stile doors at 1-3/4 inch thickness, which is the closer match to a touchpad if the crossbar look is not wanted. Crossbar hardware projects differently into the traffic path than a touchpad, so confirm the clearance at the opening before swapping.
20) What wide stile rim device should be standardized across a facility alongside or in place of the Corbin Russwin ED5200S?
For a wide stile Grade 1 standard at 36 inch, the candidates that hold both attributes are the TownSteel ED1100 and ED9700, both 36 inch Grade 1 heavy duty wide stile rim devices, the Detex 10 Advantex 36 inch extra heavy duty Grade 1 wide stile device, the BEST Precision 2101 Series 36 inch wide stile rim device, and the Imperial USA ED-501 36 inch Grade 1 wide stile rim panic device, exit only. The DORMA 8300 Series is a Grade 1 wide stile panic rim device from the same Dormakaba house as the ED5000 Series. The ED5200S itself is Grade 1 and comes in eleven finishes including 626 family options such as 630 satin stainless steel and 625 bright chrome, which is usually the deciding factor when matching an existing fleet.
21) The ED5200S is built for 1-3/4 inch doors. What rim device covers a thicker door without a special thickness kit?
The ED5200S is standard for 1-3/4 inch doors with 2 inch and 2-1/4 inch handled through the D200 and D214 options. Devices that carry the wider thickness range as standard include the DORMA 9300 Series in 48 inch, a Grade 1 heavy duty wide stile exit only device rated 1-3/4 inch to 2-1/4 inch, and the Adams Rite 8800 Series in 30 inch, a Grade 1 narrow stile device also rated 1-3/4 inch to 2-1/4 inch. The SDC S6136 covers 1-3/4 inch to 2 inch. The Securitron EMB electromechanical exit bar is specified at 2-1/4 inch, though as an electromechanical bar it operates differently from a mechanical latching rim device.
22) Are the levers on Corbin Russwin ED5200S trim ADA compliant?
Yes, the lever trims and pulls offered with the ED5000 Series comply with the Americans with Disabilities Act. That covers the operable hardware side of an ADA opening; door closing force and clear width are separate items on the drawing.
