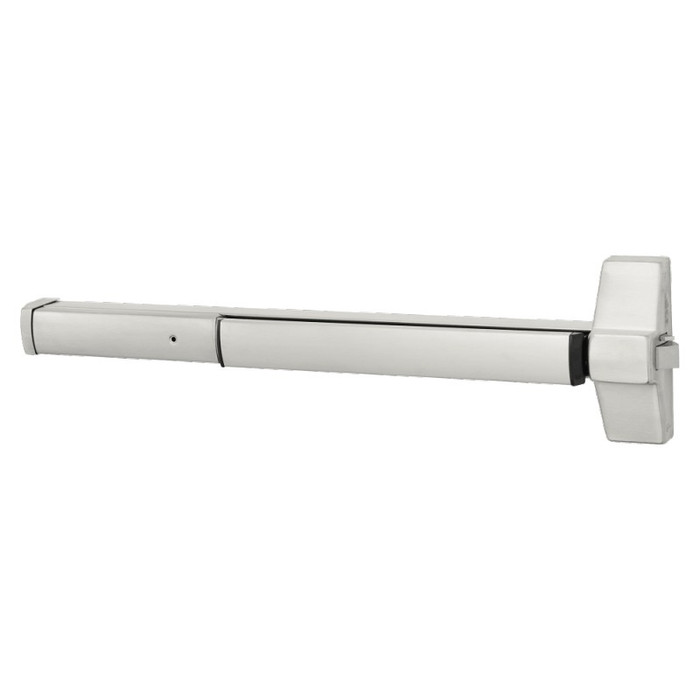

Corbin Russwin ED5200 Grade 1 - 48" Rim Exit Device

Corbin Russwin ED5200 Grade 1 - 48" Rim Exit Device

(No reviews yet) Write a Review

Model: ED5200 630 W048
$2,570.78
$1,328.97
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,570.78
$1,328.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5200 WO48 48" Wide Stile Rim Exit Device with Hex Key Dogging

Commercial-Grade Rim Exit Device for Wide Stile Doors Up to 48"

The Corbin Russwin ED5200 WO48 is a professional-grade rim exit device from the ED5000 Series, engineered for safe and easy egress on wide stile doors accommodating openings from 36" to 48" (914mm to 1219mm). Featuring a 48" (1219mm) push bar and a minimum stile width requirement of 4-1/2" (114mm), this device is designed for standard 1-3/4" (44mm) door thickness with optional configurations available for 2" (51mm) and 2-1/4" (57mm) doors. The ED5200 is ideal for high-frequency use applications including schools, factories, hotels, theaters, office buildings, retail complexes, and government facilities, and is backed by a 5-year limited warranty.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Retail Establishments and Shopping Complexes
  • Hotels and Hospitality Venues
  • Industrial Facilities, Factories, and Warehouses
  • Government and Municipal Buildings
  • Theaters and Assembly Occupancies

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices are engineered to meet rigorous life-safety and security requirements, with testing procedures that go beyond industry standards—the ED5800 concealed vertical rod exit device was independently certified to 3.25 million successful cycles, more than 6 times the industry requirement. The ED5200 WO48 is rated Grade 1 for commercial applications and is backed by a 5-year limited warranty, providing long-term confidence for facility managers and installers. With a stainless steel latchbolt, wide stile compatibility, and a full range of optional trim and electronic configurations, Corbin Russwin delivers dependable performance for the most demanding commercial door openings.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Lock Function:
Exit Only, Accepts Trim
Wood Door Compatible:
No
Product Model:
ED5200
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5200 630 W048 – Frequently Asked Questions

1) Is the Corbin Russwin ED5200 fire rated? I need panic hardware on a labeled door.
No. The ED5200 WO48 as configured is panic hardware, not fire exit hardware, so it should not go on a labeled fire door. For a labeled opening, a fire rated rim device is the right call: the Marks USA M9900F comes in a 48 inch fire rated version, and the Dexter ED1000-R-F-EO and Orca OED85 are fire rated rim devices as well. Fire exit hardware also does not get dogged, which is another reason the hex key dogging on the ED5200 belongs on a non-labeled opening.
2) Do I have to specify handing when I order a Corbin Russwin ED5200?
No for the device itself, it ships non-handed and works on either a left or right hand opening. Handing only comes into play on two things: double cylinder devices and lever trim, both of which are handed. So an exit only order is hand-free, but the moment you add a lever trim you need to give the hand of the door.
3) Will the Corbin Russwin ED5200 latch into the strike that is already on my frame?
Probably not without changing the strike. The ED5200 uses a stainless steel pullman latchbolt with a 3/4 inch throw and a deadlocking auxiliary latch, and it comes with its own surface mounted 3/8 inch roller strike with a positive locking plate and shims. That roller strike is what the latch is set up to hit, and the shims are there so you can dial in the gap on your frame. Plan on mounting the supplied strike rather than reusing an old one.
4) I need a fire rated exit device for a 48 inch door - can I use the Corbin Russwin ED5200?
The Corbin Russwin ED5200 WO48 as configured carries a fire rating value of No, so for a labeled 48 inch opening the device to specify instead is the Marks USA M9900F 48 inch fire rated rim panic exit device, exit only with panic protector end cap, which is fire rated and covers the same 48 inch door width in a rim exit only configuration. If the labeled opening is a 36 inch leaf rather than 48, the Marks USA M9900F 36 inch fire rated rim exit device is the same device in the shorter length.
5) My aluminum storefront door has a narrow stile - what rim exit device do I use instead of the Corbin Russwin ED5200?
The ED5200 is a wide stile device and needs a 4-1/2 inch minimum stile, which a typical narrow stile aluminum door will not give you. For a narrow stile opening the rim devices built for it include the Adams Rite 8800 Series 30 inch narrow stile rim exit device, Grade 1, with a 1-3/4 inch to 2-1/4 inch door thickness range; the Falcon 19-R Series 36 inch narrow stile rim device, Grade 1, exit only, for 1-3/4 inch doors; and the TownSteel ED8900 36 inch Grade 1 narrow stile rim exit device. All three are narrow stile rim devices, so they land on the stile face where the ED5200 will not fit.
6) What is the closest equivalent to a Corbin Russwin ED5200 48 inch rim exit device from another manufacturer?
The Corbin Russwin ED5200 in the 48 inch size is a Grade 1 wide stile rim exit device for a 4-1/2 inch minimum stile on a 1-3/4 inch door. The closest peers built the same way are the Dormakaba DORMA 9300 Series 48 inch wide stile panic rim exit device, exit only, which is Grade 1 wide stile and covers a 1-3/4 inch to 2-1/4 inch door thickness range, and the Sargent 3828, a Grade 1 reversible standard push bar wide stile rim device for 48 inch doors. Both match on the rim mounting, the wide stile pushpad or push bar format, the Grade 1 rating and the 48 inch door width, so either drops into the same opening the ED5200 WO48 is specified for.
7) Is an SDC pressure sense bar or switch bar the same thing as a Corbin Russwin ED5200 rim exit device?
No. The Corbin Russwin ED5200 is a Grade 1 rim exit device with its own stainless steel pullman latchbolt and a surface mounted roller strike, so it latches the door itself. The SDC SureExit PSB560 Series 36 inch is a pressure sense bar with tri-failsafe technology and the SDC MSB550 Series 36 inch is a mechanical switch bar with electromagnetic lock release - both are bars that signal a separate locking device rather than rim exit devices that latch on their own. Both SDC bars fit narrow or wide stile doors, but they need the maglock or electric lock they release; the ED5200 does not.
8) I need a vertical rod device, not a rim device - what replaces the Corbin Russwin ED5200 on a pair of doors?
The ED5200 is a rim device, which latches to a surface mounted strike on the frame and suits a single door or the active leaf. On a pair where the latching has to go to the head and sill, the Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod exit device with a wide stile pushpad, matching the ED5200 wide stile format, and the Hager 4601 Series 36 inch is the Grade 1 concealed vertical rod device in narrow stile.
9) How far does a Corbin Russwin ED5200 stick out from the door? I have a tight corridor.
The ED5200 projects 3-1/4 inches from the door face when the bar is active, and 2-3/4 inches when it is dogged down. Use the 3-1/4 inch number for clearance to a wall, railing, or an adjacent leaf on a pair, since the device only sits at the dogged depth while it is held in.
10) What does hex key dogging on the ED5200 actually do for me during business hours?
Dogging holds the push bar depressed and the latch retracted, so the door pushes open free like it has no latch at all. On the ED5200 that is a single point 1/4 turn with a hex key, which is the standard configuration. It is what you use to leave a storefront or a school corridor on free swing during the day and then lock it back down at close. Cylinder dogging and electric dogging are available if you would rather key it or run it off a schedule instead of sending someone around with an Allen wrench.
11) Should I use a rim exit device or a vertical rod device on my doors?
A rim device like the ED5200 latches into a strike on the frame at the lock edge, which is the simplest install and the right answer on a single door or on a pair with a center mullion. It cannot secure a pair of doors with no mullion, because there is nothing at the meeting stile to latch into. For that opening you need a vertical rod device that latches at the head and sill instead, such as the Hager 4501 Series concealed vertical rod. Surface rods are easier to service, concealed rods stay out of the way and out of reach.
12) Can I add a lever and a cylinder to the Corbin Russwin ED5200 later, or is it exit only?
It is exit only as shipped but it accepts trim, so outside lever or pull trim is an add. Corbin Russwin offers the Museo and Vineyard trim collections for it, with Free Wheeling levers that spin freely when locked to resist someone wrenching on them. The lever trims and pulls are ADA compliant. Two things to sort out on the order: trim is not included with the exit only device, and lever trim is handed even though the device is not.
13) Is the Corbin Russwin ED5200 heavy duty enough for a school entrance?
It is ANSI/BHMA A156.3 Grade 1, the top commercial grade, on a cold-forged steel chassis with electroplated corrosion resistance, and it is intended for high traffic openings like schools, hotels, theaters, and government buildings. Grade 1 is what most institutional specs call for on an egress door. Comparable Grade 1 wide stile rim devices from other brands include the Von Duprin 22 Series and the Detex 10 Advantex; the Cal-Royal 5500 48 inch rim device is a Grade 2 alternative if the spec allows it.
14) What is the difference between the Corbin Russwin ED5200 and the ED5200S SecureBolt?
The latchbolt. The standard ED5200 uses a pullman-type stainless latch with a 3/4 inch throw and a deadlocking auxiliary latch. The ED5200S SecureBolt swaps that for a deadbolt-style bolt, 3/4 inch projection by 1 inch wide, positively deadlocked by an auxiliary bolt. Same throw, much more bolt surface in the strike, which is what you want on a back-of-house or after-hours door where someone might work at it. On a normal interior egress door the standard latch is fine.
15) I need a 48 inch wide stile rim exit device. What else could I buy besides the Corbin Russwin ED5200?
Other 48 inch wide stile rim devices worth pricing: the DORMA 9300 Series, which is Grade 1 and covers 1-3/4 to 2-1/4 inch doors; the Sargent 3828 and 2828, both Grade 1 wide stile reversible devices for 48 inch doors; the CRL Jackson 1095 Series crossbar device, if you want a crossbar rather than a push bar; and the Cal-Royal 5500 and A9820, which are Grade 2. Where the ED5200 differs is the electrified path, since MELR latch retraction and the M61 exit alarm are configurable right on the order.
16) What is a comparable 48 inch rim exit device if I want a crossbar instead of a push bar?
The Corbin Russwin ED5200 WO48 uses a 48 inch push bar. If the opening calls for a crossbar style actuator at the same width, the CRL Jackson 1095 Series 48 inch crossbar rim panic exit device is a wide stile exit only rim device in that format. CRL Jackson also builds the 1095P Series with a paddle actuator and the 1295 Series non-handed push pad rim panic device for 1-3/4 inch doors, both wide stile and exit only, if you want to keep the pad or move to a paddle.
17) What are the extra heavy duty alternatives to the Corbin Russwin ED5200 for a high abuse opening?
The ED5200 is ANSI/BHMA A156.3 Grade 1 with a cold forged steel chassis. Where the opening takes heavier abuse, the Detex 10 Advantex Series 36 inch is a wide stile Grade 1 rim exit device rated extra heavy duty, and the Detex 40 Advantex Series is the extra heavy duty Grade 1 rim device in narrow stile. Detex also lists the V4003A/03AN Series as a Grade 1 wide stile rim exit device with night latch trim if the opening needs keyed re-entry rather than exit only.
18) The Corbin Russwin ED5200 is exit only and accepts trim - what should I order if I want keyed entry from the outside built in?
The ED5200 ships exit only and accepts trim, so outside access comes from the trim you add. If you would rather buy a device that already carries the outside function, the Sargent 8504 is a Grade 1 rim exit device in night latch function, and the Detex V4003A/03AN Series is a Grade 1 wide stile rim exit device supplied with night latch trim. The Sargent 8504 is a narrow design device, so check the stile before substituting it for the wide stile ED5200.
19) Can I put a Corbin Russwin ED5200 on a 2-1/4 inch thick door, or should I look at something else?
The ED5200 is built for 1-3/4 inch doors as standard, with optional configurations for 2 inch using the D200 option and 2-1/4 inch using the D214 option, so the thicker door is an option code rather than a different device. If you would rather buy a device whose standard range already spans it, the Dormakaba DORMA 9300 Series 48 inch wide stile rim device covers 1-3/4 inch to 2-1/4 inch, and the Adams Rite 8800 Series covers the same range in narrow stile.
20) What finishes does the Corbin Russwin ED5200 rim exit device come in?
Eleven finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. For matching existing openings in a building, 630 satin stainless is the usual commercial standard, and every one of those finishes can be had plain, with the M61 exit alarm, or with MELR latch retraction.
21) Which other Grade 1 wide stile rim exit devices use hex key dogging like the Corbin Russwin ED5200?
The ED5200 uses standard single point 1/4 turn hex key dogging. Other rim devices built with hex key dogging include the Design Hardware 1000R 33 inch heavy duty rim device and the Design Hardware 2000R 33 inch standard duty rim device, which is a wide stile device, and the Stanley Security QED200 Series Grade 1 heavy duty rim exit device with hex key dogging, which is narrow stile. Dormakaba lists the same QED200 Series as a Grade 1 heavy duty narrow exit device.
