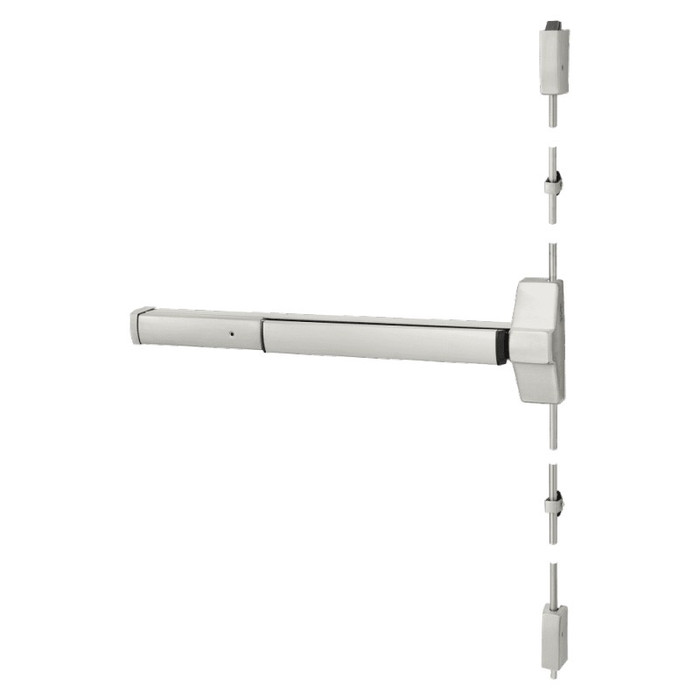

Corbin Russwin ED5400 48" Surface Vertical Rod Exit Device

Standard Features

• Handing: Device is handed but easily field reversible. Lever trim is handed.
• Bar Length: Easily field cut to size.
  Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
  Optional: 24" (610mm) bar fits 24" (610mm) door; specify W024.
  Optional: 48" (1219mm) bar fits 36"- 48" (914mm-1219mm) door; specify W048.
• Door Thickness: 1-3/4" (44mm) standard.
  Optional: 2" (51mm); specify D200.
  Optional: 2-1/4" (57mm); specify D214.
• Stile: Minimum width 4-1/2" (114mm).
• Door Height:
  Standard top rod for 7' door.
  All rods easily field cut to size.
  Optional door heights up to 8’ available; see
  Quick Codes, page 56.
  For door heights above 8’0” refer to ED5470(B).
• Latchbolt:
  Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching.
  Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.

• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
• Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides.
• Dogging: Standard: single point 1/4 turn hex key dogging.
  Optional: less dogging; specify M51.
  Optional: cylinder dogging; specify M52.
  Optional: electric dogging; specify M97.
• Fasteners: Standard on panic devices: machine screws and wood door fasteners. Standard on fire-rated devices: sex nuts and bolts. Optional on devices: sex nuts and bolts for use on wood, composite or unreinforced metal doors; specify M54. Optional wood screws for use on approved fire-rated solid wood or wood core doors. Specify M64.
• Strike:
  Top: adjustable roller strike with positive locking plate and shims.
  Bottom: flush mounted. Optional strikes available; see Options and Accessories.
• Functions and Trims: Through-bolted lever, pull and thumbpiece trims available with wide range of functions; see Trims and Functions.

**Other configurations, parts, accessories are available on the site or by request. See the ED5000 Series Catalog for all available products ZenSupply can offer.

ED5000 SERIES OVERVIEW

Applications

Corbin Russwin’s history is rich with architectural hardware designed to meet life safety and
security requirements. That tradition continues with ED5000 Series exit devices. Designed to
allow safe and easy egress, the ED5000 Series is ideal for frequent use applications such as
schools, factories, hotels, theaters, office, retail complexes and government buildings.

Quality

All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field. Testing procedures go beyond industry standards; the ED5800 concealed vertical
rod exit device was witnessed and certified to 3.25 million successful cycles, more than 6
times the requirement. Abuse and cycle tests prove time and again the durability of the entire ED5000 Series, which is backed by a 5-year warranty.

Aesthetics
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware, and today’s wide stile
exit device line is no exception. The ED5000 Series offers smooth lines in the exit device bar
and a full range of trim designs with visual diversity, including the Muséo® and Vineyard™
Collections.

Vandal Resistance

Today’s door hardware must fulfill life-safety and security needs, two areas in which ED5000 series exit devices and trim excel. The ED5200S SecureBolt® features a deadbolt style latchbolt that significantly resists pull from the exterior, thus reducing door and frame separation, preventing the door from being forced open. 900 series heavy-duty trim deters
vandals with a thick 13/16" beveled escutcheon, Free Wheeling lever (excluding mortise trim), and flush cylinder. High security Pyramid cylinders offer an additional barrier against
picking and drilling. These components can all be combined for high quality, high security applications.

Electronics

If electronic access control is required, or just a simple monitoring switch, the ED5000 series
offers a full range of electrified options, including a delayed egress exit device and electrically controlled trim. All options can be tied into existing security and fire alarm systems for easy monitoring.
