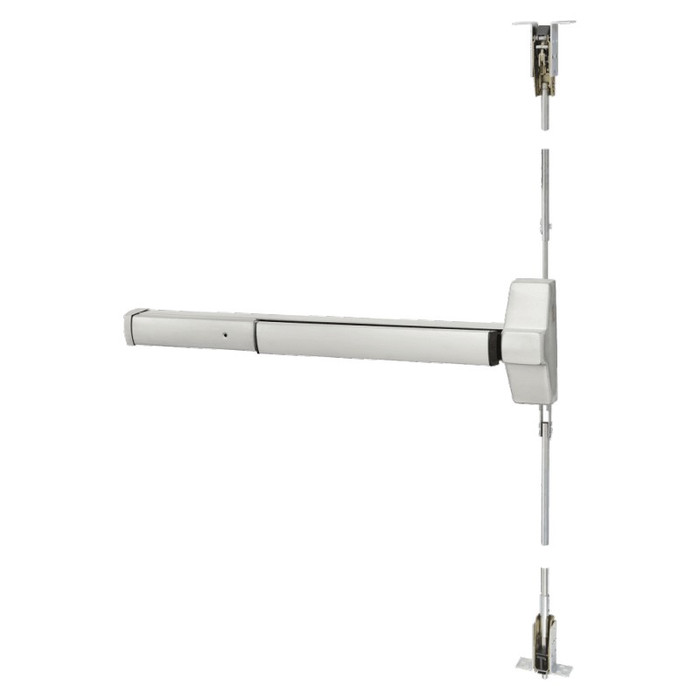

Corbin Russwin ED5800 Grade 1 Concealed Vertical Rod Exit Device

Corbin Russwin ED5800 Concealed Vertical Rod Exit Device Wide Stile, Grade 1, Field-Reversible Handing

Heavy-Duty Concealed Vertical Rod Exit Device for Wide Stile Commercial Doors

The Corbin Russwin ED5800 is a Grade 1 concealed vertical rod exit device engineered for wide stile commercial metal doors requiring dependable life-safety egress. Part of the ED5000 Series, this device accommodates a standard 36" (914mm) bar fitting doors from 30" to 36" (762mm–914mm), with optional 24" (610mm) and 48" (1219mm) bar lengths available. Standard door thickness is 1-3/4" (44mm), with optional configurations for 2" (51mm) and 2-1/4" (57mm) doors. The ED5800 requires a minimum stile width of 4-1/2" (114mm) and is designed exclusively for use on metal doors, making it ideal for schools, factories, hotels, theaters, offices, retail complexes, and government buildings.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Commercial Office Buildings
• Educational Facilities and Schools
• Healthcare Institutions
• Retail Establishments and Shopping Complexes
• Industrial Facilities, Factories, and Warehouses
• Hotels and Hospitality Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices deliver professional-grade reliability backed by rigorous testing that goes beyond industry standards — the ED5800 concealed vertical rod exit device was witnessed and certified to 3.25 million successful cycles, more than 6 times the industry requirement. Constructed with stainless steel latchbolts, electroplated corrosion-resistant vertical rods, and Grade 1 rated components, the ED5800 is engineered for the most demanding commercial applications. Every device is supported by a 5 Year Limited warranty, providing lasting confidence for life-safety installations where dependable performance is essential.
