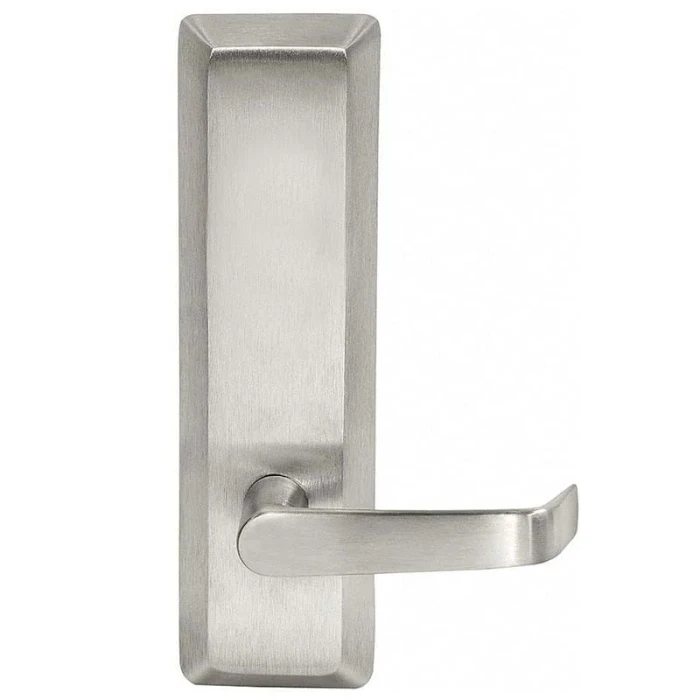

Name: Corbin Russwin ED5600 Grade 1 Series Dummy Function Mortise Heavy-Duty Trim
Brand: Corbin Russwin
SKU: A9M50ET 613 RHR
Price: 718 USD
Availability: InStock

Product Overview
FAQs

Corbin Russwin x9M50ET ED5600 Series Dummy Function Mortise Exit Device Trim with Beveled Edges and Flush Cylinder

Commercial-Grade Heavy-Duty Exit Device Trim for Demanding Institutional Applications

The Corbin Russwin ED5600 Series Dummy Function Mortise Heavy-Duty Trim is a professional-grade exit device trim solution engineered for commercial and institutional facilities. Designed with a dummy function (ANSI# 02), this trim provides entrance by trim when the actuating bar is dogged down, delivering reliable and controlled access in high-traffic environments. The trim features beveled edges, a flush cylinder, and a rigid lever when locked, and is through-bolted directly to the exit device for a secure, stable installation. ADA compliant and built to commercial standards, this trim integrates seamlessly with the ED5000 Series exit device platform.

Professional Features & Benefits

Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
Non-handed device (except double cylinder and lever trim which are handed)
Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
Standard single-point 1/4-turn hex key dogging on panic devices
Free Wheeling levers for vandal resistance on trim
SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
Electrified options including delayed egress, electric latch retraction, and electric dogging
UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
Full range of trim with Muséo® and Vineyard™ collections
ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
PathLite™ photoluminescent touchpad cover option available
Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

Grade: ANSI/BHMA A156.3 Grade 1
Handing: Non-handed standard (lever trim and double cylinder devices are handed)
Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
Minimum Stile Width: 4-1/2" (114mm)
Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
Warranty: Five-year limited

Professional Applications

Commercial Office Buildings
Educational Facilities
Healthcare Institutions
Retail Establishments
Industrial and Warehouse Facilities
Multi-Tenant Residential Properties
Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device trim products deliver professional-grade reliability with heavy-duty construction featuring beveled edges, flush cylinder design, and through-bolted mounting for lasting structural integrity. This trim is backed by a 5-year limited warranty and meets ADA compliance requirements, ensuring dependable performance in demanding commercial and institutional environments. As an ASSA ABLOY Group brand, Corbin Russwin is a trusted name in commercial door hardware engineered for facilities where security and accessibility are paramount.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:: Exit Devices and Trim
Product Subgroup:: Exit Device Trim
Commercial/Residential:: Commercial
Subcategory:: Exit Devices - Rim
Product Type:: Exit Device Trims
Features:: Key Entry Exit Device Trim
Series:: ED5000 Series
ADA Compliant:: Yes
Product Function:: Dummy
Cylinder Classification:: Rim
Trim Classification:: Dummy Lever
Product Category:: Exit Devices and Trim
Department:: Door Hardware

Corbin Russwin A9M50ET 613 RHR – Frequently Asked Questions

1) What does the dummy function on the Corbin Russwin ED5600 trim actually do? Can you get in with a key?

The ED5600 dummy trim (ANSI function 02) has no key control and no latch retraction. The lever is rigid, and it only lets you enter when the exit device's touchbar is dogged down. Dog the bar during business hours and the trim pulls the door open; undog it and the opening is exit only from the inside, with no outside entry at all. If you need key access after hours, a dummy trim is the wrong choice, go to a nightlatch or storeroom function trim instead.

2) Is the Corbin Russwin ED5600 dummy exit trim handed, or can I order one and figure out the hand on site?

You have to specify the hand. The ED5000 devices themselves are non-handed, but lever trim is handed, and the ED5600 dummy trim is ordered LHR (left hand reverse) or RHR (right hand reverse). Exit device trim is always a reverse hand because the door swings out. Stand outside the opening: if the hinges are on your right and the door pulls toward you, that is RHR.

3) Will the Corbin Russwin ED5600 trim fit a 2 inch thick door?

Standard build is for a 1-3/4 inch (44mm) door, which covers most commercial openings. Thicker doors are handled with an option: D200 for a 2 inch door and D214 for 2-1/4 inch. That has to be called out on the order, a standard unit will not through-bolt correctly on a thicker door. Also check the stile: the ED5000 platform needs a minimum 4-1/2 inch (114mm) stile.

4) Does the ED5600 dummy trim meet ADA, and is it fire rated?

ADA compliant, yes. Lever trims and pulls on the ED5000 line comply with the Americans with Disabilities Act, so the lever operates without tight grasping or twisting. On fire, the ED5000 devices are UL/cUL listed panic and 3-hour fire exit hardware and meet NFPA 101 and NFPA 80, and they carry ANSI/BHMA A156.3 Grade 1 and California State Fire Marshal approval. One caution on fire doors: dogging is not permitted on fire rated openings, and a dummy trim gives entry only when the bar is dogged, so on a fire door this trim leaves you with no outside entry.

5) I want key access from outside on my exit door. Should I order the ED5600 dummy trim or something else?

Not the dummy. A dummy lever gives no key function, so if the touchbar is not dogged nobody gets in. For key access, order a nightlatch or storeroom function trim: on Sargent devices, the 704ET nightlatch lever trim retracts the latch with a key, and the 744 does the same on 8700 and 8900 Series surface vertical rod and mortise devices. Design Hardware's KIL storeroom trim covers 1000 and 2000 Series devices in a Schlage C keyway. The ED5600's rim cylinder classification tells you the ED5000 keyed trims take a rim cylinder, not a mortise cylinder.

6) What is the closest equivalent to the Corbin Russwin ED5600 dummy trim from another manufacturer?

The Von Duprin 230DT is the nearest cross-brand match. Both are dummy function exit device trim: the Corbin Russwin x9M50ET carries a Dummy product function with a dummy lever trim classification, and the Von Duprin 230DT is a dummy trim built on a heavy duty 10 gauge steel escutcheon for the 22 Series. The Detex 02BN is a third dummy option, a dummy S-lever trim with blank escutcheon for the Value Series devices. The deciding factor is the device family: the Corbin Russwin trim is built for the ED5000 Series, the 230DT for Von Duprin 22 Series, and the 02BN for Detex Value Series, so match the trim to the device already on the door.

7) I need key control on the outside of the door, not a dummy lever. What should I order instead?

A dummy trim is a pull only and gives no keyed operation, so a keyed function trim is the right substitution. For night latch, where the key retracts the latch, the Sargent 704ET is a Grade 1 heavy duty night latch lever trim with field reversible operation, and the Sargent 744 is a Grade 1 freewheeling night latch trim whose key retracts the latch on surface vertical rod and mortise 8700 and 8900 Series devices. For storeroom function, the Design Hardware KIL storeroom trim is Grade 1 with a Schlage C keyway and flat lever, and the Marks USA M195F is a storeroom function lever and rose trim with spring loaded roses. Match the choice to the device series it serves.

8) We want the outside trim controlled by an access control system. What replaces a dummy trim on that opening?

An electrified trim is the substitution, since a dummy trim gives no controlled operation. The Command Access ET15, ET25, and ET26 are electrified exit trims with 12V and 24V operation and fail safe or fail secure options, with the ET26 built to Grade 1 with a field reversible design; the Command Access 230L is the electrified version for Von Duprin 96, 36, and 23 Series devices. From the device makers, the Von Duprin E360L-BE-03 is a Grade 1 electric passage trim with the 03 lever, fail safe, for 33 and 35A Series, and the Falcon 510L-FSA/FSE is a heavy duty electrified trim for 25 Series. For standalone credential control without wiring back to a panel, the Dormakaba E-Plex 201U is an electronic pushbutton exit trim and the PowerPlex P201U serves rim, mortise, and SVR devices.

9) Is a passage function exit trim the same thing as a dummy trim?

No, and it is the substitution most often made by mistake. The Corbin Russwin x9M50ET is dummy function, meaning the lever is rigid when locked and entrance by trim happens only when the actuating bar is dogged down. A passage trim such as the Arrow SRX01, a passage function Sierra lever with rose for ED910, S1150, and S1250 devices, operates the device latch from the outside at all times. If the requirement is free outside entry, the Arrow SRX01 is the correct part; if the requirement is a fixed pull that only lets people in when the device is dogged, the dummy trim is.

10) The door on my building is 2 inches thick. Which exit device trims cover that?

The Corbin Russwin ED5000 platform is 1-3/4 inch standard with optional 2 inch using the D200 option and 2-1/4 inch using D214, so the thicker door is handled by option rather than a different part. Among other makers, the Pamex E9000 storeroom L3 lever heavy duty trim is Grade 1 and covers a 1-3/8 to 2 inch door thickness range. The Tell escutcheon lever trims, the EDELT53 entry and EDELT80 storeroom, along with the EDPT pull trim and EDTHP53 thumbpiece trim, cover 1-3/8 to 1-3/4 inch.

11) This trim is going on a fire rated door. Which alternatives are cleared for that and which are not?

The Corbin Russwin ED5000 platform the x9M50ET trim mounts to is UL and cUL listed for panic and 3-hour fire exit hardware and compliant with NFPA 101 and NFPA 80, with California State Fire Marshal approval. Several trims sold for exit devices are catalogued with a fire rating of No, including the Accentra 121NL nightlatch trim, the 426F Augusta lever escutcheon trim for 6000 and 1800 Series, the AU-441F night latch keyed lever trim, and the 446F classroom function trim. On a labeled opening, verify the fire rating of the trim as well as the device before committing.

12) What escutcheon and lever designs can I get on the Corbin Russwin ED5600 dummy trim?

Eleven trim designs: Armstrong (A9M), Citation (C9M), Dirke (D9M), Essex (E9M), Lustra (L9M), Newport (N9M), Princeton (PR9M), Regis (R9M), stamped trim (VT9M), an offset pull (P9M), and a pull with thumbpiece prep ordered without the thumbpiece (TH9M00). If you are matching other openings in a building, pick the design code already on those doors, the escutcheon shape is what a person notices walking up to the door.

13) How far does the Corbin Russwin ED5600 trim and device stick out from the door? I have a tight vestibule.

On the push side, the ED5000 device projects 3-1/4 inches (83mm) when active and 2-3/4 inches (70mm) when dogged down. That is the number to check against a return wall, an adjacent door leaf, or a vestibule that gets tight when both doors are open. The dummy trim itself sits on the pull side as a lever and escutcheon.

14) Will the ED5000 device latch into the strike I already have on the frame?

Probably not without changing the strike. Corbin Russwin ships the rim device with its own surface-mounted 3/8 inch roller strike, complete with a positive locking plate and shims for adjustment. The rim latchbolt is a stainless steel pullman type with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch, so it wants that roller strike geometry rather than a flat ANSI lock strike. Plan on mounting the supplied strike and using the shims to take up any gap at the stop.

15) What trim should I use for a classroom door instead of a dummy trim?

Classroom function trim keys the outside lever, which a dummy trim cannot do. The Falcon 510L is a heavy duty classroom function trim with a lever handle for 24 and 25 Series devices, the Falcon 179L is a medium duty classroom lever control trim for 1790 Series, and the Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom trim with thumbpiece, pull plate, and cylinder prep supplied less cylinder. Pick by the exit device family already installed and the duty level the traffic calls for.

16) I am matching finishes across a building. How does the Corbin Russwin ED5600 trim compare to other exit trim on finish choice?

The Corbin Russwin x9M50ET is ordered in fourteen finishes, including 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 626 satin chrome, 630 satin stainless steel, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat, and it pairs those with eleven escutcheon designs from Armstrong to Princeton. Several peer trims are catalogued at a single finish, such as the Tell EDELT53 and EDELT80 escutcheon lever trims and the EDPT pull trim in 26D, and the Design Hardware 2P-03NL pull trim in 32D. If the goal is standardizing an oil-rubbed or black opening across many doors, the wider Corbin Russwin finish range is the reason to specify it.

17) Does a lever have to be part of the trim, or are there knob and thumbpiece alternatives?

The Corbin Russwin x9M50ET covers a lever escutcheon in designs such as Citation, Essex, and Lustra, and also an offset pull P9M and a TH9M00 pull with no thumbpiece, so it spans lever and pull without a knob. For a knob, the Von Duprin 210K-BE is a Grade 1 heavy duty exit trim knob with blank escutcheon for the 22 Series. For a thumbpiece, the Tell EDTHP53 is a keyed entry thumbpiece trim and the Dexter ED1000T-CLRM-TP-NC pairs a thumbpiece with a pull plate. Note that ADA compliance on the Corbin Russwin platform is tied to lever trims and pulls.

18) A blank escutcheon trim was quoted to me. Is that the same as this dummy trim?

They are close but not identical. The Corbin Russwin x9M50ET is dummy lever trim, an escutcheon with a rigid lever that acts as a pull. The Falcon 212L is a blank escutcheon trim on the 20 Series with shear pin protection, and the Von Duprin 210K-BE is a knob with blank escutcheon, both of which cover the outside of the door without a keyed cylinder in the same way. The difference to settle before ordering is whether the outside needs something to grab, which the lever provides, or only a cover over the through-bolt prep.

19) What are the entrance function alternatives if tenants need to key in from outside?

Entrance and keyed entry trims replace the dummy in that role. The Delaney 500L is an entrance function exterior lever trim available in CT, MD, and SD lever styles. The Design Hardware KIL entry trim is Grade 1 with a Schlage C keyway and flat lever for 1000 and 2000 Series devices, and the Design Hardware LE08 is a Grade 1 entry trim with a flat lever and escutcheon for 1000R and 2000R devices. The Tell EDELT53 is a keyed entry escutcheon lever trim for 1-3/8 to 1-3/4 inch doors. Confirm the keyway matches the building's key system before ordering.

20) Is a mortise pushbutton lock an alternative to exit device trim on this opening?

They solve different problems. The Corbin Russwin x9M50ET is exit device trim, through-bolted to the exit device on a door with a minimum 4-1/2 inch stile, and the device carries the latching. The Dormakaba E-Plex 5067 is a mechanical pushbutton mortise lock, a wide stile lock in its own right rather than trim mounted to a device. If the door already has an ED5000 Series exit device, trim is the part to order; a mortise lock would mean changing the door prep and the locking method.

21) What night latch trim options exist for wide stile doors if I move off the dummy function?

For a wide stile opening, the Dorma YR03R is a wide stile exit device lever trim, an escutcheon with R lever in night latch function supplied less cylinder. The Sargent 704-ETL is a Grade 1 heavy duty night latch lever trim with key retract function for PE Series devices, and the Dexter ED1500 nightlatch trim uses a raised lip pull plate. The Von Duprin 110MD-NL is a night latch cylinder assembly for metal and wood doors serving 22, 55, and 98/99 exit trim, useful when only the cylinder assembly is being added rather than a full lever escutcheon.

22) What finishes does the Corbin Russwin ED5600 exit trim come in for matching existing hardware?

Fourteen finishes, spanning the usual commercial specs and the decorative ones: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 oil-rubbed satin bronze, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. For a building already standardized on 626 or 630, order the same BHMA number and the trim will read as a match to the levers and closers already up.

23) Will the ED5600 trim work on a door with a keyed lever if I need vandal resistance in a school?

The dummy version is inherently vandal resistant in the simplest way: the lever is rigid when locked, so torquing on it does not drive anything. Across the ED5000 trim line, free wheeling levers are offered for vandal resistance, meaning the lever spins rather than shearing the internals when someone hangs on it. For a school corridor or a stadium gate where levers get abused, that is the option to specify. The chassis is cold-forged steel with electroplated corrosion resistance underneath.
