Corbin Russwin ED5200S/ED5200/ED5400/ED5800/FE5400S Grade 1 Series Dummy Function Heavy-Duty Trim

Corbin Russwin x950ET ED5200S/ED5200/ED5400/ED5800/FE5400S Series Dummy Function Heavy-Duty Exit Device Trim with Free Wheeling Vandal-Resistant Lever

Commercial-Grade Dummy Lever Trim for Rim Exit Device Applications

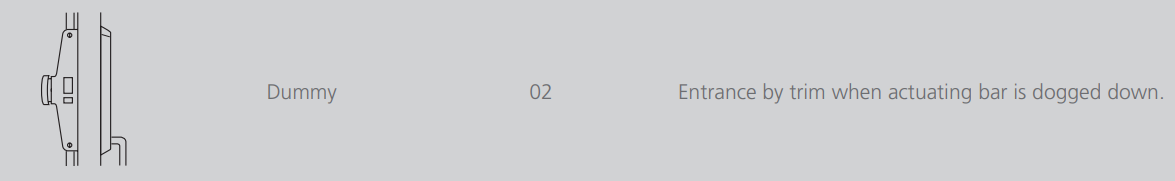

The Corbin Russwin x950ET is a heavy-duty dummy function exit device trim designed for compatibility with the ED5200S, ED5200, ED5400, ED5800, and FE5400S Series exit devices. This trim provides entrance by trim when the actuating bar is dogged down, making it an ideal dummy lever solution for commercial and institutional door hardware applications. Featuring a free wheeling vandal-resistant design and through-bolted mounting to the exit device, this ADA-compliant trim delivers the durability and reliability demanded by high-traffic commercial environments. The flush cylinder configuration supports 6-pin cylinder applications for added security versatility.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device trim products deliver professional-grade reliability through a free wheeling vandal-resistant design, through-bolted construction, and ADA-compliant engineering built for the rigors of commercial and institutional use. Each trim is backed by a 7-year limited warranty, reflecting Corbin Russwin's commitment to long-term performance and customer confidence. As an ASSA ABLOY Group brand, Corbin Russwin is engineered for demanding commercial applications where dependable performance and security are essential.
