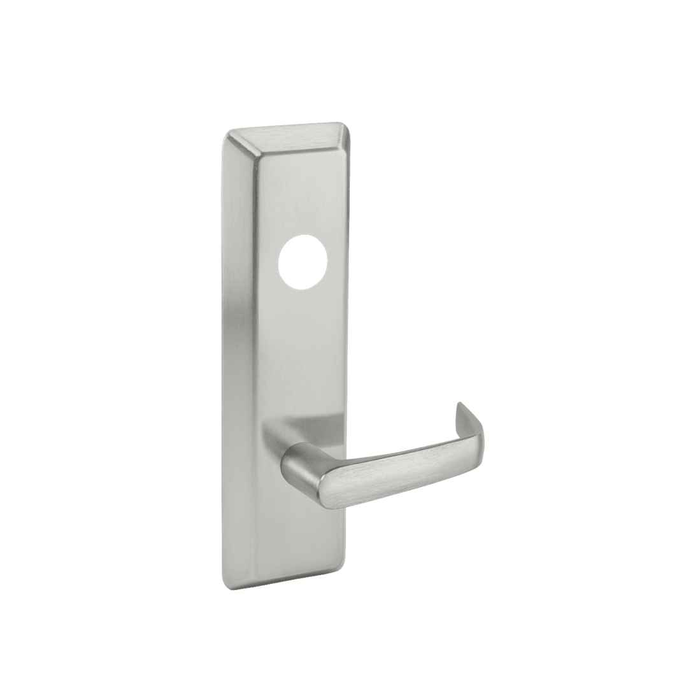

Name: Corbin Russwin ED5200S/ED5200/ED5400/ED5800/FE5400S Grade 1 Series Storeroom Function Heavy-Duty Trim
Brand: Corbin Russwin
SKU: A959ET 626 RHR
Price: 611.45 USD
Availability: InStock

Product Overview
FAQs

Corbin Russwin x959ET ED5200S/ED5200/ED5400/ED5800/FE5400S Series Storeroom Function Heavy-Duty Exit Device Trim with Free Wheeling Vandal-Resistant Lever

Commercial-Grade Storeroom Lever Trim for Rim Exit Devices

Corbin Russwin, an ASSA ABLOY Group brand, presents this Heavy-Duty Exit Device Trim engineered for storeroom function applications across the ED5200S, ED5200, ED5400, ED5800, and FE5400S Series exit devices. Designed for commercial and institutional facilities, this ADA-compliant trim features a free wheeling vandal-resistant lever design and is through-bolted directly to the exit device for maximum security and durability. The storeroom function allows entrance by thumbpiece only when released by key, with the key removable only when locked, making it ideal for controlled-access environments. A flush cylinder accommodates 6-pin cylinder applications with a rim cylinder classification.

Professional Features & Benefits

Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
Non-handed device (except double cylinder and lever trim which are handed)
Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
Standard single-point 1/4-turn hex key dogging on panic devices
Free Wheeling levers for vandal resistance on trim
SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
Electrified options including delayed egress, electric latch retraction, and electric dogging
UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
Full range of trim with Muséo® and Vineyard™ collections
ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
PathLite™ photoluminescent touchpad cover option available
Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

Grade: ANSI/BHMA A156.3 Grade 1
Handing: Non-handed standard (lever trim and double cylinder devices are handed)
Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
Minimum Stile Width: 4-1/2" (114mm)
Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
Warranty: Five-year limited

Professional Applications

Commercial Office Buildings
Educational Facilities
Healthcare Institutions
Retail Establishments and Storerooms
Industrial and Warehouse Facilities
Multi-Tenant Residential Properties
Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device trim products deliver professional-grade reliability with a free wheeling vandal-resistant lever design and through-bolted construction engineered for demanding commercial and institutional applications. This trim is backed by a 7-year limited warranty and meets ADA compliance requirements, providing both long-term durability and accessibility assurance. As an ASSA ABLOY Group brand, Corbin Russwin is trusted by facility managers and security professionals for dependable performance across a wide range of commercial door hardware applications.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:: Exit Devices and Trim
Product Subgroup:: Exit Device Trim
Commercial/Residential:: Commercial
Subcategory:: Exit Devices - Rim
Product Type:: Exit Device Trims
Features:: Key Entry Exit Device Trim
Series:: ED5200S/ED5200/ED5400/ED5800/FE5400S Series
ADA Compliant:: Yes
Product Function:: Storeroom
Cylinder Classification:: Rim
Trim Classification:: Storeroom Lever
Product Category:: Exit Devices and Trim
Department:: Door Hardware

Corbin Russwin A959ET 626 RHR – Frequently Asked Questions

1) Will the Corbin Russwin x959ET storeroom trim work on my ED5400 surface vertical rod device, or is it rim only?

The x959ET storeroom lever trim is built for the ED5200S, ED5200, ED5400, ED5800 and FE5400S devices, so a surface vertical rod ED5400 takes it, as does the ED5800 CVR and the FE5400S fire exit device. It through-bolts directly to the device rather than mounting independently to the door, which is why the device family matters more than the door here. It will not fit another manufacturer's device.

2) What does storeroom function mean on an exit device trim, and is it right for a stockroom door people push out of all day?

Storeroom function keeps the outside lever locked at all times. Entry from the outside is by key only, and the key is removable only when the door is locked, so nobody can leave it in an unlocked state by accident. Free egress from the inside is always available through the push bar itself, so the traffic going out is unaffected. That is the correct choice for a stockroom, mechanical room or supply closet where the door must never be left open. If you want the outside lever to unlock and stay unlocked, storeroom is the wrong function.

3) What do I have to specify when ordering Corbin Russwin x959ET storeroom exit trim?

Four decisions. Handing, LHR or RHR, since lever trim is handed. Escutcheon and lever design, one of nine (Armstrong, Citation, Dirke, Essex, Lustra, Newport, Princeton, Regis, TH900). Finish, one of fourteen. And the cylinder: less cylinder if you are keying it into an existing system yourself, or conventional 6-pin or 7-pin from us, keyed different or keyed alike. If the door is thicker than 1-3/4 inches, add D200 for 2 inch or D214 for 2-1/4 inch.

4) Can I use the Corbin Russwin x959ET storeroom trim on a fire rated door?

Yes. The device family it mounts to is UL/cUL listed panic and 3-hour fire exit hardware, meets NFPA 101 and NFPA 80, and is California State Fire Marshal approved. The FE5400S is the fire exit variant in the family. One thing to note on a fire opening: fire exit hardware cannot be dogged, so the hex key dogging offered on the panic versions is not available on the fire rated build.

5) Will the Corbin Russwin x959ET trim fit a 2 inch thick door?

Standard build is for a 1-3/4 inch (44mm) door, which covers most commercial openings. Thicker doors are handled by ordering the D200 option for 2 inch or D214 for 2-1/4 inch. If your door is one of the thicker ones you must call that option out on the order, since the through-bolt length changes with it.

6) My aluminum storefront door has a narrow stile. Can I use the Corbin Russwin ED5200 with lever trim?

Minimum stile width is 4-1/2 inches (114mm), so a typical narrow stile aluminum door will not take this device and trim. Measure the lock stile before ordering. If you are under 4-1/2 inches you need a narrow stile device and narrow stile trim instead, such as the BEST 2900 Series 2901 lever trim for 2000 Series narrow stile exit devices.

7) Will the Corbin Russwin ED5200 latch into the strike I already have on the frame?

Probably not, and you should plan on using the strike that comes with the device. The ED5200 rim latchbolt is a stainless pullman type with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch, and it is designed against a surface-mounted 3/8 inch roller strike with a positive locking plate and shims. That roller strike is not interchangeable with an ANSI mortise lock strike or a standard cylindrical lock strike. The shims are how you take up the gap if the frame is out slightly.

8) I need to secure a pair of doors with no mullion. Rim device or vertical rod?

A rim device like the ED5200 latches into a strike on the frame or on a mullion, so a pair with no mullion cannot use it as-is. For an unmullioned pair, go to the ED5400 surface vertical rod, which latches at the head and the threshold on each leaf and needs nothing between the doors. The ED5800 is the concealed vertical rod if you want the rods out of sight, and it is certified to 3.25 million cycles. The same storeroom lever trim covers all three.

9) I want the outside lever to unlock on a card reader. Does this storeroom trim do that?

No. The x959ET is a mechanical storeroom trim, key only from the outside. For access control you have two routes on the ED5200 family: electrify the device itself with electric latch retraction or electric dogging, which pulls the latch and lets anyone pull the door, or use electrified trim so only the lever unlocks. If you want the electrified trim route on a device you already own from another brand, the Command Access ET15, ET25 and ET26 are electrified exit trims with 12V/24V operation and fail safe or fail secure options, and the Von Duprin E360L-BE-03 is a Grade 1 fail safe electric passage trim for 33/35A devices. Note that fail safe unlocks on power loss and fail secure stays locked, so the fire and life safety plan decides which you order.

10) What is the closest equivalent to the Corbin Russwin x959ET storeroom exit device trim from another brand?

The Corbin Russwin x959ET is a storeroom function lever trim for exit devices. The closest cross-brand equivalents by function are the Pamex E9000, a Grade 1 storeroom function heavy duty exit device trim with an L3 lever, the Tell EDELT80 escutcheon lever trim in storeroom function, and the Marks USA M195F storeroom function lever and rose trim for the M9900 touchbar. All three lock the outside lever and use a key to release it, the same operating behavior the storeroom function gives you. The difference that decides the order is which device family each one mounts to: the Corbin Russwin trim is built for ED5200S, ED5200, ED5400, ED5800 and FE5400S series devices, the Marks trim for the M9900 touchbar, and the Pamex for its E9000 series. Match the trim to the device already on the door.

11) What is the difference between a storeroom exit trim and a night latch exit trim?

They are not interchangeable even though both are keyed. The Corbin Russwin x959ET is storeroom function: the outside lever stays locked and the key releases entry. A night latch trim retracts the latch with the key alone and gives you no working outside lever for the rest of the time. Night latch options include the Sargent 704ET, a Grade 1 heavy duty night latch lever trim with field reversible operation, the Sargent 744 Grade 1 freewheeling trim where the key retracts the latch for surface vertical rod and mortise 8700 and 8900 series devices, the Accentra AU-441F night latch keyed lever trim, and the Von Duprin 110MD-NL night latch cylinder assembly for metal and wood doors. If the crew wants a lever to grab after unlocking, the storeroom trim is the one; if key-only entry is the intent, the night latch is.

12) What storeroom exit trim works on a door with a thinner slab than 1-3/4 inch?

The Corbin Russwin x959ET storeroom trim is built around a 1-3/4 inch door as standard, with 2 inch and 2-1/4 inch options for thicker slabs, so it goes up rather than down. For a thinner door, the Pamex E9000 storeroom trim covers a 1-3/8 inch to 2 inch door thickness range, and the Tell EDELT80 storeroom escutcheon lever trim covers 1-3/8 inch to 1-3/4 inch. Both give you the same key-released outside lever on a 1-3/8 inch slab. Confirm the exit device on the door accepts the trim you pick, since the Pamex is an E9000 series trim and the Corbin Russwin mounts to ED5200 and ED5400 family devices.

13) Is a classroom function exit trim the same as the Corbin Russwin x959ET storeroom trim?

No. The Corbin Russwin x959ET is storeroom function, where the outside lever is always locked and a key releases entry, and the key comes out only in the locked state. A classroom trim lets the key leave the outside lever unlocked for a period of open access. Classroom-function alternatives include the Falcon 510L heavy duty classroom trim for 24 and 25 series devices, the Falcon 179L 1790 series medium duty classroom lever control trim, the Accentra 446F Grade 1 classroom function trim with the Augusta lever, and the Dexter ED1000T-CLRM-TP-NC Grade 1 classroom trim with a thumbpiece and pull plate. If a teacher or supervisor needs to leave the door unlocked between key turns, classroom is the function to order; storeroom will not do it.

14) What do I use instead of a mechanical storeroom exit trim if the opening needs access control?

The Corbin Russwin x959ET is a mechanical key-operated storeroom trim, so unlocking it means a key at the door. If the opening is going on an access control system, the Command Access ET15, ET25, and ET26 electrified exit trims run on 12V or 24V with fail safe and fail secure options, and the ET26 is Grade 1 with a field reversible design. The Command Access 230L is the electrified equivalent for Von Duprin 230L trim on V96, 36 and 23 series devices. For credential-at-the-door instead of wiring back to a panel, the Dormakaba E-Plex 201U is an electronic pushbutton exit trim for wide stile doors and the PowerPlex P201U works on rim, mortise and surface vertical rod devices. Confirm the electrified trim matches your exit device family before ordering.

15) Is the Corbin Russwin x959ET lever ADA compliant for a public building?

Yes. The lever trim and pulls comply with the Americans with Disabilities Act, which is what you need on an accessible route where a knob would fail. The lever also free wheels: turn it when it is locked and it spins without transmitting force into the chassis, so someone hanging on it or kicking it does not break the mechanism. That combination is why this trim shows up on school corridors and healthcare doors.

16) How far does the Corbin Russwin ED5200 stick out from the door face? I have a tight corridor.

Projection is 3-1/4 inches (83mm) with the bar at rest and 2-3/4 inches (70mm) when the device is dogged down. Add the trim on the pull side to that on the outside face. If you are working to a clear corridor width or a door swinging into a stair landing, the 3-1/4 inch active figure is the one to use.

17) What is the difference between the Corbin Russwin ED5200 and the ED5200S SecureBolt?

The latchbolt. The standard ED5200 rim device uses a stainless pullman latchbolt with a 3/4 inch throw and a deadlocking auxiliary latch. The ED5200S SecureBolt swaps that for a deadbolt-style latchbolt, 3/4 inch projection by 1 inch wide, positively deadlocked by an auxiliary bolt. The wider, deadbolt-style bolt resists jimmying and loiding, which is why it goes on exterior and high-risk openings. Both take the same storeroom lever trim.

18) Can I get the Corbin Russwin storeroom exit trim to match the satin chrome lever hardware on the rest of my building?

Fourteen finishes are offered, including 626 satin chrome and 625 bright chrome, 630 satin stainless and 629 bright stainless, 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 oil-rubbed satin bronze, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. 626 is the usual commercial default, so matching an existing satin chrome fleet is straightforward. Lever style is a separate choice across nine escutcheon designs: Armstrong, Citation, Dirke, Essex, Lustra, Newport, Princeton, Regis and TH900.

19) Does the Corbin Russwin ED5200 exit device meet a Grade 1 spec on the drawings?

It does. The ED5200 family is certified to ANSI/BHMA A156.3 Grade 1, the highest of the three grades for exit devices and the one written into most institutional and government specs. The chassis is cold-forged steel with an electroplated finish for corrosion resistance, and the trim through-bolts to the device rather than relying on wood screws into the door.

20) Can I dog the Corbin Russwin ED5200 open during business hours?

Yes on the panic versions. Single-point 1/4-turn hex key dogging is standard, so a hex key holds the bar down and the door pushes free without the latch. Cylinder dogging and electric dogging are available if you want it keyed rather than hex, or scheduled from an access control system. On the fire rated FE5400S, dogging is not available, since fire exit hardware has to latch on every cycle.

21) Which exit trim gives keyed entry with a lever that stays unlocked from outside?

The Corbin Russwin x959ET is storeroom function, meaning the outside lever is permanently locked and released only by key. If the door instead needs an entry function, where the outside lever can be left unlocked, look at the Design Hardware KIL entry function trim for 1000 and 2000 series exit devices with a Schlage C keyway and flat lever, the Design Hardware LE08 entry function trim with a flat lever and escutcheon for 1000R and 2000R devices, both Grade 1, the Tell EDELT53 escutcheon lever trim in keyed entry function, and the Delaney 500L exterior lever trim in entrance function, offered in CT, MD and SD lever styles. Design Hardware also makes a Grade 1 storeroom version of the KIL trim if the same 1000 and 2000 series device needs storeroom behavior instead.

22) Is a passage or blank escutcheon exit trim a substitute for a keyed storeroom trim?

No, and this is the substitution that gets returned. The Corbin Russwin x959ET storeroom trim takes a rim cylinder and controls entry with a key. A passage trim has no cylinder and lets anyone through from outside: the Arrow SRX01 Sierra lever trim with rose is passage function for ED910, S1150 and S1250 devices, and the Von Duprin E360L-BE-03 is a Grade 1 electric passage trim with the 03 lever in fail safe for 33 and 35A series devices. The Falcon 212L 20 series trim is a blank escutcheon, and the Von Duprin 210K-BE is a knob with blank escutcheon for 22 series devices, so neither provides keyed outside control either. Any opening that must stay secured from outside needs the keyed storeroom trim, not these.

23) Which storeroom exit trims are Grade 1 for an institutional spec?

The Corbin Russwin x959ET meets ANSI/BHMA A156.3 Grade 1 and is ADA compliant with a free wheeling vandal-resistant lever, and its devices are UL listed panic and 3-hour fire exit hardware compliant with NFPA 101 and NFPA 80. Among storeroom-function peers that also carry Grade 1, the Pamex E9000 is a Grade 1 heavy duty storeroom trim and the Design Hardware KIL storeroom trim is Grade 1 for 1000 and 2000 series exit devices with a Schlage C keyway. If a facility is standardizing on one keyway across a building, the Schlage C on the Design Hardware trim is the practical differentiator; the Corbin Russwin trim takes a rim cylinder in conventional 6-pin or 7-pin.

24) Do I need a handed exit device trim, and which alternatives are field reversible?

The Corbin Russwin x959ET lever trim is handed and comes in LHR left hand reverse and RHR right hand reverse, so the hand has to be right at the time of order. If a contractor stocking trim wants one part that works either way, the Sargent 704ET night latch lever trim has field reversible operation and the Command Access ET26 electrified trim has a field reversible design, both Grade 1. Those are different functions, however, so reversibility is only worth trading for if night latch or electrified operation also suits the opening. For storeroom function, determine the hand from the door swing and order the matching LHR or RHR trim.

25) What is the difference between a lever-and-rose storeroom trim and a lever-and-escutcheon storeroom trim?

They cover the door differently. The Corbin Russwin x959ET is an escutcheon-style storeroom lever trim, offered in Armstrong, Citation, Dirke, Essex, Lustra, Newport, Princeton, Regis and TH900 escutcheon designs, so a single plate spans the lever and cylinder. The Marks USA M195F is a storeroom function lever and rose trim with spring loaded roses for the M9900 touchbar, which uses separate round roses instead of a full plate. The Tell EDELT80 is a storeroom escutcheon lever trim like the Corbin Russwin. A rose trim leaves more of the door face exposed, which matters on a retrofit where the old escutcheon covered prior prep; an escutcheon hides it.
