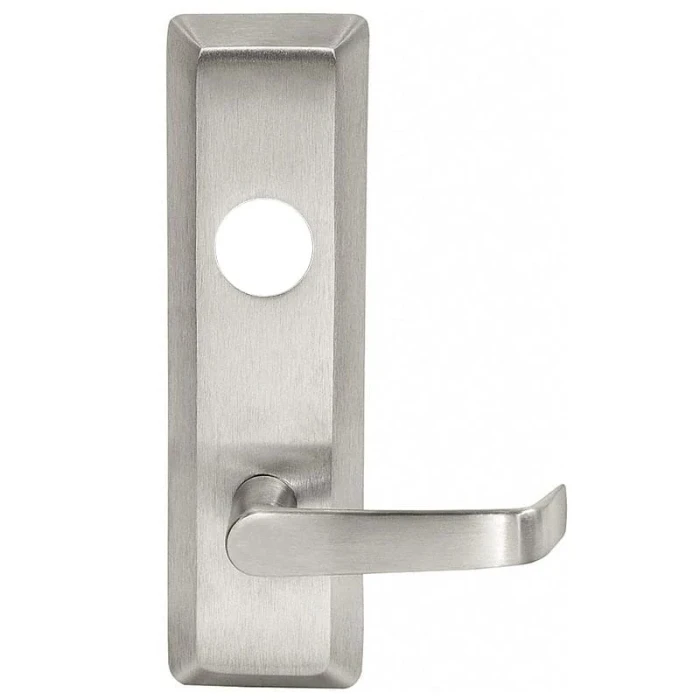

Corbin Russwin ED5200S/ED5200/ED5400/ED5800 Grade 1 Series Nightlatch Function Heavy-Duty Trim

Corbin Russwin ED5200S/ED5200/ED5400/ED5800 Grade 1 Series Nightlatch Function Heavy-Duty Trim

(1 review) Write a Review

Model: A957ET 626 RHR
$1,067.14
$627.76
Selected Finish is
Selected Escutcheon Trim Design is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,067.14
$627.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin x957ET ED5200S/ED5200/ED5400/ED5800 Series Nightlatch Function Heavy-Duty Exit Device Trim with Free Wheeling Vandal-Resistant Lever

Commercial-Grade Nightlatch Trim for Rim Exit Device Applications

The Corbin Russwin x957ET is a heavy-duty nightlatch function trim designed for compatibility with the ED5200S, ED5200, ED5400, and ED5800 Series exit devices. This ADA-compliant trim provides nightlatch operation, allowing entrance by trim when the latchbolt is retracted by key, making it an ideal solution for controlled-access commercial and institutional openings. Featuring a free wheeling vandal-resistant lever design and a flush cylinder with 6-pin cylinder applications, this trim delivers the durability and security demanded by high-traffic commercial environments. Through-bolted attachment to the exit device ensures a secure, stable installation, while beveled edges contribute to a refined, professional appearance.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device trim products deliver professional-grade reliability through heavy-duty construction featuring a free wheeling vandal-resistant lever design, through-bolted attachment, and flush 6-pin cylinder compatibility — all engineered to perform in demanding commercial and institutional environments. Every unit is backed by a 7-year limited warranty, reflecting Corbin Russwin's commitment to long-term performance and customer confidence. As an ASSA ABLOY Group brand, Corbin Russwin continues to set the standard for innovative, high-quality door hardware across commercial, institutional, and government applications.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Commercial/Residential:
Commercial
Subcategory:
Exit Devices - Rim
Product Type:
Exit Device Trims
Features:
Key Entry Exit Device Trim
Series:
ED5200S/ED5200/ED5400/ED5800 Series
ADA Compliant:
Yes
Product Function:
Nightlatch
Cylinder Classification:
Rim
Trim Classification:
Nightlatch Lever
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin A957ET 626 RHR – Frequently Asked Questions

1) Which Corbin Russwin exit devices does the x957ET nightlatch trim fit?
The x957ET heavy-duty trim is built for the Corbin Russwin ED5200S, ED5200, ED5400 and ED5800 Series exit devices, so it covers rim, SecureBolt rim, surface vertical rod and CVR devices in that family. It through-bolts to the device chassis. It is not a universal trim, so it will not mount on another maker's device.

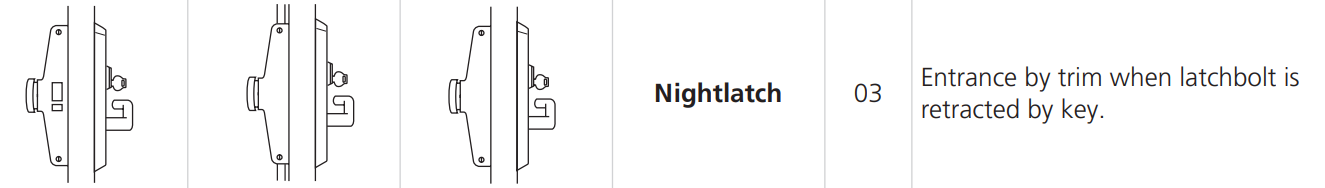

2) What does nightlatch function mean on this exit trim, and is it the right function for a back door?
Nightlatch means the outside lever is free wheeling at all times and does nothing until a key retracts the latchbolt. Turn the key, the latch pulls back, and you pull the door open by the lever. There is no way to leave the outside lever permanently active as you could with a classroom or passage trim. That makes it the usual choice for a service or back entrance where staff carry keys and nobody outside should get in without one. If you want the outside lever to work all the time, look at a passage or entry trim instead, such as the Dexter ED1500T Series regular lever trim.
3) Is this Corbin Russwin nightlatch trim handed, and how do I pick LHR or RHR?
Yes, handing matters. Lever trims in this family are handed even though the exit devices themselves are non-handed, and the x957ET is ordered either LHR (left hand reverse) or RHR (right hand reverse). Exit devices are always reverse bevel, so stand outside the door: if the hinges are on your right and the door pulls toward you, it is RHR. Order the wrong hand and the lever points the wrong way.
4) Does the x957ET trim come with a cylinder?
Not standard. The trim is ordered less cylinder by default, or with a conventional 6-pin or conventional 7-pin cylinder added. The cylinder required is a rim cylinder, and it mounts flush in the escutcheon. If you are keying into an existing system, order less cylinder and fit your own rim cylinder in your keyway. Keyed different is standard; keyed alike is available when several openings need to share a key.
5) Will this work on a 2 inch thick door?
Standard is 1-3/4 inch (44mm) doors. For thicker doors you specify the D200 option for 2 inch or the D214 option for 2-1/4 inch. Order the thickness option with the device and trim, not after the fact, since the through-bolt hardware length changes.
6) Can I use this nightlatch trim on a fire rated door?
Yes. The ED5200S/ED5200/ED5400/ED5800 Series is UL/cUL listed panic and 3-hour fire exit hardware and complies with NFPA 101 and NFPA 80, with California State Fire Marshal approval. Note that on a fire door the device cannot be dogged, so the hex key dogging option is omitted on fire rated assemblies. Several comparable nightlatch trims are not fire rated, including the Accentra 121NL.
7) Which nightlatch exit trim should I use if my device is a surface vertical rod or mortise Sargent unit rather than a Corbin Russwin ED5200 rim device?
Use the Sargent 744, a Grade 1 freewheeling night latch trim where the key retracts the latch, built for Sargent 8700 and 8900 Series surface vertical rod and mortise devices. The Corbin Russwin x957ET is matched to the ED5200S, ED5200, ED5400 and ED5800 Series and uses a rim cylinder.
8) Is there a simpler nightlatch trim than the x957ET if I do not need a lever?
Yes. The Von Duprin 110MD-NL is a night latch cylinder assembly trim for metal and wood doors, Grade 1 heavy duty, with no lever or escutcheon. The Dexter ED1500T-PULL-NC is a Grade 1 nightlatch trim using a raised lip pull plate instead of a lever, and the Design Hardware 2P-03NL is a Grade 1 pull trim with a cylinder hole in night latch function. The Corbin Russwin x957ET is a nightlatch lever trim, so it gives ADA-compliant lever operation that pull and cylinder-only trims do not.
9) My doors are thinner than 1-3/4 inch. Which trim fits instead of the x957ET?
The Corbin Russwin x957ET application is 1-3/4 inch standard, with 2 inch (D200) and 2-1/4 inch (D214) options. If the doors are thinner, the Tell EDELT53 entry function escutcheon lever trim and EDELT80 storeroom trim both cover 1-3/8 inch to 1-3/4 inch, and the Pamex E9000 Grade 1 storeroom lever trim covers 1-3/8 inch to 2 inch.
10) Is this trim ADA compliant for a public building?
Yes. The lever trims and pulls in this Corbin Russwin exit trim line comply with the Americans with Disabilities Act, and the free wheeling lever needs no tight grasping or wrist twisting to operate. It is also ANSI/BHMA A156.3 Grade 1, the heaviest commercial duty rating for exit hardware, which is what school, healthcare and government specs usually call for.
11) Will the rim device latch into my existing strike?
The rim ED5200 uses a stainless steel pullman latchbolt with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch, and it ships with a surface mounted 3/8 inch roller strike plus a positive locking plate and shims. On the SecureBolt ED5200S the bolt is deadbolt style, 3/4 inch projection by 1 inch wide. On the ED5400 surface vertical rod the top latch throws 3/4 inch and the bottom deadbolt 5/8 inch. Because the supplied strike is surface mounted with shims, you normally set it to the frame rather than reusing an old strike prep.
12) I need the trim to match the levers on the rest of my building. What designs and finishes can I get?
Ten escutcheon and lever designs are offered: A9 Armstrong, C9 Citation, D9 Dirke, E9 Essex, L9 Lustra, N9 Newport, PR9 Princeton, R9 Regis, TH900, plus a P offset pull if you do not want a lever at all. Finishes run 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 and 613E oil-rubbed bronze, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. For a property standardizing on 626 satin chrome or 630 satin stainless, both are stock finish numbers here.
13) What is the closest nightlatch trim from another brand if I am not standardized on Corbin Russwin?
The Sargent 704ET is the nearest equivalent: Grade 1, heavy duty, night latch function, for 700 Series devices, and field reversible rather than ordered handed. The Sargent 744 covers the same night latch function for surface vertical rod and mortise 8700/8900 devices, and the Sargent 704-ETL is the PE Series key-retract version. Dorma's YR03R is a wide stile nightlatch escutcheon lever trim supplied less cylinder. None of these mount on a Corbin Russwin ED5200 device, so they are device-family swaps, not trim swaps.
14) Is dogging included so we can hold the door on push-pull during business hours?
Single-point 1/4-turn hex key dogging is standard on the panic (non fire rated) devices, and cylinder dogging or electric dogging can be specified instead. With the bar dogged the latch stays retracted and the door pushes open freely, which is how most retail and office openings run during the day and lock down with the key at night through the nightlatch trim.
15) Is the lever strong enough for a school or apartment entrance where people hang on it?
That is the point of the free wheeling design: the outside lever rotates freely without a key, so forcing or hanging on it does not transmit load into the chassis. Construction is cold-forged steel with electroplated corrosion resistance, through-bolted to the device, and the assembly is ANSI/BHMA A156.3 Grade 1 for commercial use. The ED5800 CVR device in the same series is certified to 3.25 million cycles.
16) What should I order instead of the x957ET if the opening needs the lever to stay live until the key locks it out, not a nightlatch?
For a storeroom or classroom opening, look at the Design Hardware KIL storeroom function trim or the Tell EDELT80 escutcheon lever trim in storeroom function, the Falcon 510L heavy duty classroom lever trim, or the Accentra 446F Grade 1 Augusta lever trim in classroom function. The Corbin Russwin x957ET is nightlatch only, meaning entrance by trim happens when the latchbolt is retracted by key.
17) Is the Dorma YR03R the same thing as the Corbin Russwin x957ET?
They share the function but not the device. The Dorma YR03R is a wide stile escutcheon lever trim in nightlatch function supplied less cylinder, while the Corbin Russwin x957ET is a nightlatch lever trim through-bolted to ED5200S, ED5200, ED5400 and ED5800 Series devices and offered in ten escutcheon designs from Armstrong to TH900. Confirm the trim matches the device family on the door before substituting either way.
18) Can I use the Accentra 441F in place of the Corbin Russwin x957ET?
The Accentra AU-441F is a night latch keyed lever trim with the Augusta design, so the function lines up with the x957ET nightlatch lever trim. The difference is the device: the 441F is an Accentra trim, while the x957ET through-bolts to Corbin Russwin ED5200S, ED5200, ED5400 and ED5800 Series devices. Accentra's 121NL is the pull-style nightlatch trim in that line if you do not need a lever.
19) What is the alternative if the opening needs a thumbpiece instead of a lever?
The Tell EDTHP53 is a thumbpiece exit device trim in keyed entry function for 1-3/8 inch to 1-3/4 inch doors, and the Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom trim with thumbpiece, pull plate and cylinder prep supplied less cylinder. The Corbin Russwin x957ET uses a free wheeling vandal-resistant lever, which is the ADA-compliant option of the two approaches.
20) How far does the device stick out from the door face?
Projection is 3-1/4 inches (83mm) active and 2-3/4 inches (70mm) when dogged. Worth checking against a tight vestibule, an adjacent wall return, or a door that swings past a corridor handrail.
21) I just need a keyed pull with no lever. Is there an option?
Yes, the P offset pull is one of the trim designs in the same range, so you can get the keyed nightlatch operation without a lever handle. If you want a pull trim from another brand, the Dexter ED1500 Series raised lip pull plate is a nightlatch function pull, and the Tell exit device pull trim with cylinder hole is supplied less cylinder. Keep in mind a pull is not an ADA lever, so on an accessible opening a lever design is the safer specification.
