Corbin Russwin ED5200S/ED5200/ED5400/ED5800 Grade 1 Series Passage Function Heavy-Duty Trim

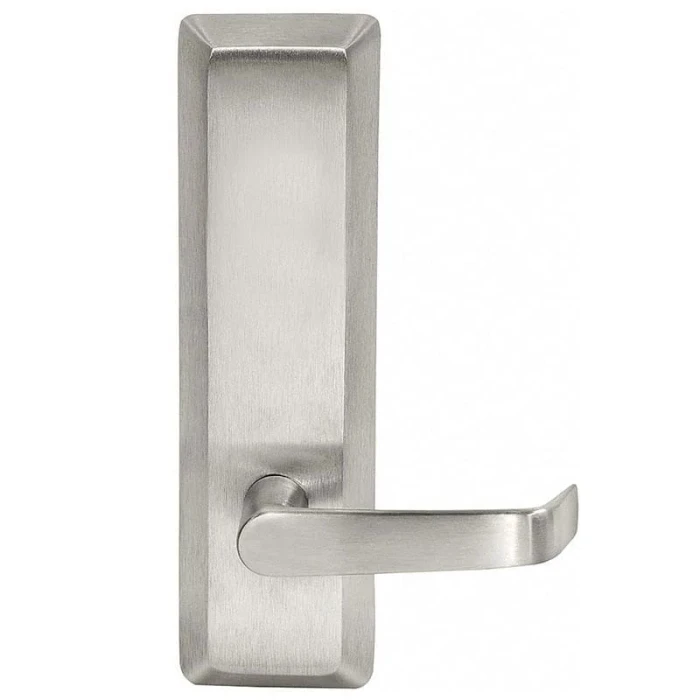

Corbin Russwin x910ET ED5200S/ED5200/ED5400/ED5800 Series Passage Function Heavy-Duty Exit Device Trim with Free Wheeling Vandal-Resistant Lever

Commercial-Grade Passage Lever Trim for Rim Exit Devices

Corbin Russwin, an ASSA ABLOY Group brand, presents this heavy-duty passage function exit device trim engineered for compatibility with the ED5200S, ED5200, ED5400, and ED5800 Series exit devices. Designed for commercial and institutional facilities, this ADA-compliant passage lever trim features a free wheeling vandal-resistant design and is through-bolted directly to the exit device for maximum security and stability. The passage function allows entry by trim when the latchbolt is retracted by lever, with the lever always active and no cylinder required. Backed by a 7-year limited warranty, this trim delivers the professional-grade reliability Corbin Russwin is known for.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device trim products deliver professional-grade reliability with a free wheeling vandal-resistant design, beveled edges, and through-bolted construction engineered for the rigors of commercial and institutional use. This trim is backed by a 7-year limited warranty, reflecting Corbin Russwin's commitment to lasting performance. As an ASSA ABLOY Group brand, Corbin Russwin remains a trusted name in commercial door hardware, providing ADA-compliant solutions for demanding applications where dependable performance is essential.
