Corbin Russwin ED5657T Grade 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,057.00
$1,788.35

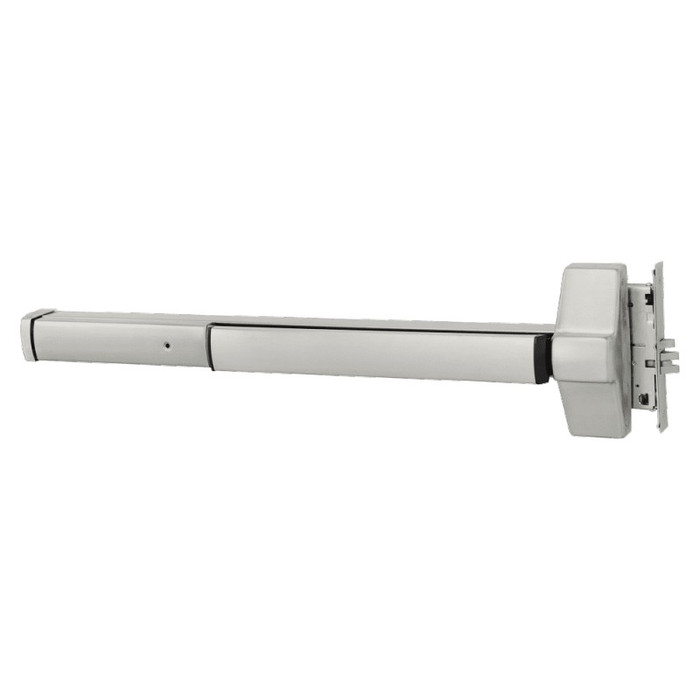

Corbin Russwin Corbin Russwin ED5657T Mortise Exit Device for use with Dummy or Nightlatch Lever Pull Trim (Not Included) COR-ED5657T

Corbin Russwin ED5657T Grade 1 Mortise Exit Device for use with Dummy or Nightlatch Lever Pull Trim (Not Included)

(No reviews yet) Write a Review

Model: ED5657T 630 RHR
$3,057.00
$1,788.35
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,057.00
$1,788.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5657T Mortise Exit Device for Dummy or Nightlatch Lever Pull Trim, Wide Stile, Grade 1

Commercial-Grade Wide Stile Mortise Exit Device for High-Traffic Life Safety Applications

The Corbin Russwin ED5657T is a professional-grade mortise exit device from the ED5000 Series, engineered for safe and easy egress in demanding commercial environments. Designed for wide stile doors with a minimum stile width of 4-1/2" (114mm), this device accommodates door thicknesses of 1-3/4" (44mm) standard, with optional configurations for 2" (51mm) and 2-1/4" (57mm). The standard 36" (914mm) bar fits doors from 30" to 36" (762mm–914mm), with optional 24" (610mm) and 48" (1219mm) bars available for broader door width compatibility. The mortise lock body is field reversible, and the device is backed by a 5-year limited warranty. Trim is not included and must be specified separately.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Retail Establishments and Shopping Complexes
  • Hotels and Hospitality Venues
  • Industrial, Factory, and Warehouse Facilities
  • Government and Municipal Buildings
  • Theaters and Assembly Occupancies

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices are engineered to meet rigorous life safety and security requirements, with testing procedures that go beyond industry standards. The ED5000 Series is backed by a 5-year limited warranty and has demonstrated exceptional durability through extensive abuse and cycle testing in both lab and field environments. With Grade 1 commercial certification, stainless steel latchbolt construction, and a full range of configurable options, the ED5657T delivers the dependable performance that demanding commercial applications require.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Subcategory:
Mortise
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
Product Type:
Exit Devices - Mortise
Lock Type:
Mortise
Keyed:
No
Keyed Function:
Non-Keyed
Handle Type:
Lever
Stile Type:
Wide Stile
Lock Function:
Dummy
Product Model:
ED5657T
Product Function:
Dummy
Door Hand Direction:
Reversible
Door Thickness Range:
1-3/4"
Product Length:
36"
Dogging Configuration:
Hex Key Dogging
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5657T 630 RHR – Frequently Asked Questions

1) Does the Corbin Russwin ED5657T come with the outside trim, or do I order that separately?
Trim is not included. The ED5657T is the mortise exit device only, set up for use with dummy or nightlatch lever pull trim, and that trim has to be specified and ordered separately. Plan on two line items to finish the opening: the device and the outside pull or lever trim.
2) What door thickness does the ED5657T mortise exit device fit?
1-3/4 inches (44mm) is the standard, which covers typical commercial hollow metal and wood doors. Corbin Russwin also offers option configurations for 2 inch (D200) and 2-1/4 inch (57mm, D214) doors, so a thicker door has to be called out on the order rather than field adjusted.
3) I have a 42 inch wide door. Which bar length do I order?
Order the 48 inch bar and field cut it. The 36 inch bar covers doors from 30 to 36 inches; beyond that the 48 inch size is the one to take, and the bar is designed to be field cut to the actual door width. Both 36 inch and 48 inch are offered.
4) Is the ED5657T handed, and can it be reversed in the field?
The mortise lock body is field reversible and the device itself is non-handed, but lever trim and double cylinder versions are handed. Because the ED5657T is set up for lever pull trim, hand is called out on the order as Left Hand Reverse or Right Hand Reverse. Exit devices are almost always on a reverse bevel door, which is why both options are the reverse hands.
5) Can I hold the door in a push-pull state during business hours?
Yes. Standard is single-point 1/4-turn hex key dogging, which depresses the touchbar and keeps the latch retracted. If you want a keyed staff-only version, order M52 cylinder dogging (cylinder ordered separately), and on fire rated openings order M51 less dogging, since dogging is not permitted on fire doors. Cylinder and electric dogging are also available.
6) Is this exit device approved for a fire rated stairwell door?
The ED5000 Series is UL/cUL listed as panic hardware and as 3-hour fire exit hardware, and it is NFPA 101 and NFPA 80 compliant plus California State Fire Marshal approved. It carries ANSI/BHMA A156.3 Grade 1. On a fire rated opening, specify the device less dogging (M51).
7) My opening is an aluminum narrow stile door - can I use the ED5657T?
No. The Corbin Russwin ED5657T is a wide stile device requiring a minimum stile width of 4-1/2 inches. For narrow stile openings, use a narrow stile mortise device such as the Adams Rite 8400 Series life-safety narrow stile mortise exit device for aluminum doors, the Von Duprin 5575-3ft narrow stile crossbar mortise device, or the Sargent 8304 narrow stile mortise device in night latch function.
8) What should I use instead of the ED5657T if I want a keyed nightlatch function built into the device?
The Corbin Russwin ED5657T is a non-keyed dummy function device and relies on separately specified dummy or nightlatch lever pull trim. If you want the nightlatch function designated on the device itself, the Sargent 8904 is a Grade 1 wide stile mortise exit device in night latch function with 24VAC/DC operation, and the Sargent 8304 offers night latch function in a narrow stile mortise body.
9) Will the ED5657T latch into my existing strike?
The device uses a stainless steel pullman-type latchbolt with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch, and it ships with a surface-mounted 3/8 inch roller strike with a positive locking plate and shims. The shims let you take up the gap, so in most retrofits you replace the old strike with the supplied roller strike rather than trying to reuse what is in the frame.
10) How much does the touchbar stick out into the door opening?
Projection is 3-1/4 inches (83mm) with the bar at rest and 2-3/4 inches (70mm) when dogged. Worth checking against the clear width you need at the opening and against anything mounted on the adjacent leaf or wall.
11) What is the difference between this mortise exit device and a rim exit device?
A mortise device like the ED5657T puts the lock body into a pocket cut in the door edge and latches into the frame at the strike, which gives a cleaner look and a stronger door-edge connection but requires mortise prep in the door. A rim device surface mounts on the door face and latches into a surface strike, so it is far easier to retrofit onto an unprepped door. Choose mortise when the door is already mortise prepped or is being ordered new; choose rim when you are replacing hardware on an existing door with no mortise pocket.
12) What are the Grade 1 wide stile mortise exit device alternatives if I cannot get the Corbin Russwin ED5657T?
Several wide stile Grade 1 mortise devices are comparable. The Von Duprin 9875-3FT and 8875-3FT are 36 inch wide stile mortise devices rated for 1-3/4 inch doors, though both are listed as not wood door compatible. The Falcon 25-M-EO is a 36 inch wide stile exit-only mortise device for 1-3/4 inch doors. For a fire rated wide stile device on wood or hollow metal, the Adams Rite 3300 Series is fire rated; the Adams Rite 8300 Series is the non-fire-rated equivalent. Note the exit-only models do not accept outside trim the way the ED5657T does.
13) Can I get this exit device electrified for access control?
Yes. The ED5000 Series offers delayed egress, electric latch retraction, and electric dogging options. Electric latch retraction is what you want to tie into a card reader for momentary or scheduled free access; electric dogging holds the bar depressed on a time schedule. Those are ordered as device options, so the electrified function has to be specified up front rather than added later.
14) The ED5657T needs trim ordered separately - is there a dummy trim I can pair from another brand?
The Corbin Russwin ED5657T is supplied as the device for use with dummy or nightlatch lever pull trim, which is not included. Corbin Russwin trim keeps the prep and finish matched to the device. As a cross-brand reference point for the same function, the Sargent 810 is a Grade 1 dummy pull exit device trim from the PE80 Series, intended for Sargent devices rather than as a drop-in on the ED5657T chassis.
15) I want a push pad style rather than the ED5657T touchbar - what are the options?
The Corbin Russwin ED5657T uses a touchbar with single point 1/4 turn hex key dogging on a wide stile mortise chassis. If the specification calls for a different actuator, the Von Duprin 9475/9575 Impact Series is a wide stile mortise lock exit device with a recessed push pad, while the Von Duprin 8875-3FT and 5575-3ft are crossbar mortise devices. All three are Grade 1.
16) Is the BEST Precision 2301 or Detex 30 a substitute for the ED5657T?
Both are mortise exit devices but neither matches the ED5657T configuration directly. The BEST Precision 2301 Series is an exit-only mortise device with heavy wrought construction, and the Detex 30 Series Advantex is a Grade 1 wide stile mortise device also in exit only function and not wood door compatible. The Corbin Russwin ED5657T is built to take dummy or nightlatch lever pull trim on the outside, so an exit-only device will not give you the outside pull.
17) I need electric latch retraction on a fire rated opening - is the ED5657T the right device?
The Corbin Russwin ED5657T is offered with electrified options including delayed egress, electric latch retraction, and electric dogging on a wide stile mortise chassis. If the opening calls instead for a vertical rod device, the Sargent 1256NB-8710G is an 84 inch fire rated surface mount vertical rod exit device with electric latch retraction, rated Grade 1 in a narrow stile configuration.
18) What finishes does the ED5657T mortise exit device come in?
Eleven finishes: 605 Bright Brass, 606 Satin Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Satin Bronze Oil-Rubbed, 619 Satin Nickel, 625 Bright Chrome, 629 Bright Stainless Steel, 630 Satin Stainless Steel, 722 Black Oxidized Bronze Oil-Rubbed, and BSP Black Suede Powder Coat. For matching a run of existing openings, 630 and 626-family satin finishes are the usual commercial standard, and the trim has to be ordered in the same finish since it is a separate item.
19) Do the lever trims for this device meet ADA requirements?
The ED5000 Series lever trims and pulls are ADA compliant, and Free Wheeling levers are available for vandal resistance. A PathLite photoluminescent touchpad cover is also offered, which helps with egress path visibility in a power failure. Since trim is a separate order, confirm the ADA lever trim is on the purchase order along with the device.
