Corbin Russwin Corbin Russwin ED5657AL Fire Rated Mortise Exit Device for use with Dummy or Nightlatch Lever Trim (Not Included) COR-ED5657AL

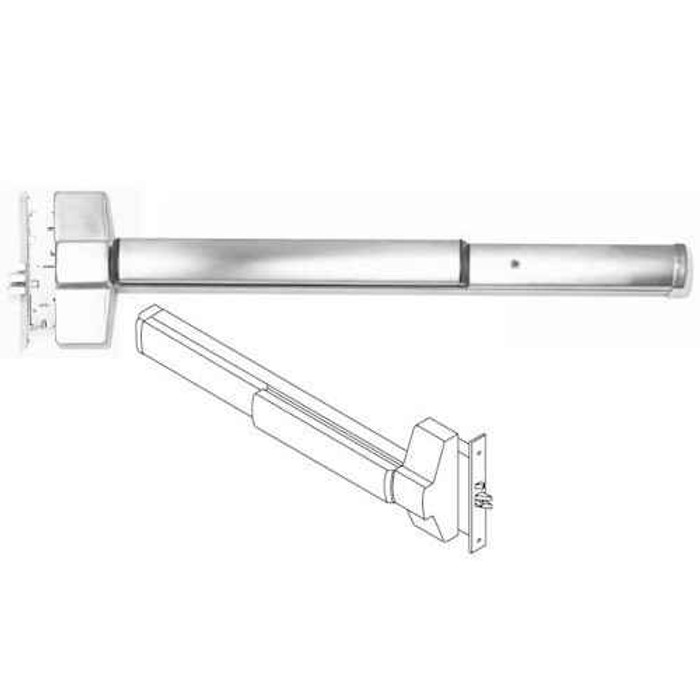

Corbin Russwin ED5657AL Grade 1 Fire Rated Mortise Exit Device for use with Dummy or Nightlatch Lever Trim (Not Included)

(No reviews yet) Write a Review

Model: ED5657AL 629 RHR
$3,402.00
$2,091.27
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,402.00
$2,091.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5657AL Fire Rated Mortise Exit Device for Wide Stile Doors with Hex Key Dogging

Commercial-Grade Fire Rated Mortise Exit Device for High-Traffic Applications

The Corbin Russwin ED5657AL is a fire rated mortise exit device from the ED5000 Series, engineered for wide stile commercial doors requiring reliable life-safety egress performance. Designed for doors with a minimum stile width of 4-1/2" (114mm), this device accommodates standard 1-3/4" (44mm) door thickness with optional configurations for 2" (51mm) and 2-1/4" (57mm) doors. The standard 36" (914mm) bar fits doors from 30" to 36" (762mm–914mm), and optional 24" (610mm) and 48" (1219mm) bars are available for 24" and 36"–48" doors respectively. Rated BHMA A156.2, Series 4000, Grade 2 and UL Listed with a 3-Hour Fire Rating, this device is backed by a 5-Year Limited Warranty and is ideal for schools, factories, hotels, theaters, offices, retail complexes, and government buildings.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Hotels and Hospitality Properties
  • Retail and Commercial Complexes
  • Industrial Facilities and Factories
  • Government and Municipal Buildings
  • Theaters and Assembly Occupancies

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices are engineered to exceed industry standards, with the ED5800 concealed vertical rod model independently certified to 3.25 million successful cycles—more than six times the standard requirement—demonstrating the exceptional durability built into every device in the series. The ED5657AL carries a BHMA A156.2, Series 4000, Grade 2, UL Listed 3-Hour Fire Rating and is backed by a 5-Year Limited Warranty, ensuring long-term reliability in the most demanding commercial life-safety applications. With a field-reversible mortise lock body, flexible bar length and door thickness options, and a full range of compatible trim and dogging configurations, Corbin Russwin delivers the professional-grade performance that architects, specifiers, and installers depend on.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Subcategory:
Mortise
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
Product Type:
Exit Devices - Mortise
Lock Type:
Mortise
Keyed:
No
Keyed Function:
Non-Keyed
Handle Type:
Lever
UL Listing Type:
BHMA A156.2, Series 4000, Grade 2, UL Listed (3 Hour Fire Rating)
Stile Type:
Wide Stile
Lock Function:
Dummy
Product Model:
ED5657AL
Product Function:
Dummy
Door Hand Direction:
Reversible
Door Thickness Range:
1-3/4"
Product Length:
36"
Dogging Configuration:
Hex Key Dogging
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5657AL 629 RHR – Frequently Asked Questions

1) Does the ED5657AL come with the lever trim, or do I order that separately?
Trim is a separate order. The ED5657AL is supplied as the mortise exit device for use with dummy or nightlatch lever trim, and that trim is not included. The device itself is non-keyed with a dummy function, so if you want key access from the outside you need to specify nightlatch lever trim and its cylinder as separate line items.
2) What bar length do I need for a 42 inch wide door?
Order the 48 inch bar. The standard 36 inch bar covers doors from 30 to 36 inches wide, and the 48 inch option covers 36 to 48 inch doors. The bar can also be field cut, so a 48 inch device can be trimmed to the exact opening.
3) Can I use this exit device on a fire rated door?
Yes. The ED5657AL is UL Listed fire exit hardware with a 3-hour fire rating, and the description lists NFPA 101 and NFPA 80 compliance. One caution on fire doors: mechanical dogging cannot be used on a fire rated opening, since the latch must project at all times. Order the M51 less dogging option for fire door installations.
4) Is the ED5657AL handed, and what does Left Hand Reverse mean on an exit device?
The device body is reversible, but this configuration is ordered as Left Hand Reverse or Right Hand Reverse because lever trim is handed. Exit devices use reverse bevel handing: stand outside the door, and if the hinges are on your right with the door pulling toward you, it is right hand reverse. Get the hand wrong and the lever will point the wrong way.
5) Will this latch into the strike already in my frame?
Plan on using the strike supplied with the device. The ED5000 mortise exit device latches with a stainless steel pullman latchbolt with a 3/4 inch throw and a deadlocking auxiliary latch, and it is prepped for a surface-mounted 3/8 inch roller strike with a positive locking plate and shims. A mortise exit device needs mortise lock body prep in the door edge, so it is not a drop-in over a rim device strike.
6) The ED5657AL needs a 4-1/2 inch stile - what mortise exit device works on a narrow stile aluminum door?
The ED5657AL requires a minimum stile width of 4-1/2 inches and is a wide stile device, so it will not fit a narrow stile aluminum door. For those openings, the Adams Rite 8400 Series is a Grade 1 narrow stile life-safety mortise exit device for aluminum doors, the Von Duprin 5575-3ft is a Grade 1 narrow stile crossbar mortise lock device for 1-3/4 inch doors and field reversible, and the Sargent 8304 is a Grade 1 narrow stile mortise device in night latch function.
7) What is the closest fire rated mortise exit device to the Corbin Russwin ED5657AL from another manufacturer?
The Adams Rite 3300 Series is the nearest match among the alternatives: it is a fire-rated Grade 1 mortise exit device for wide stile wood and hollow metal doors, the same fire-rated wide stile mortise category the ED5657AL occupies. The ED5657AL itself is a Grade 1 mortise exit device for wide stile doors with a 4-1/2 inch minimum stile width and hex key dogging.
8) Is the Sargent 810 a substitute for the Corbin Russwin ED5657AL?
No. The Sargent 810 is dummy pull exit device trim - the outside pull only, not a device. The ED5657AL is the mortise exit device itself, a Grade 1 wide stile unit whose dummy or nightlatch lever trim is ordered separately. If you are replacing a whole device, compare against a full mortise device such as the Adams Rite 3300 Series fire rated Grade 1 wide stile unit.
9) Will this fit a 2 inch thick door?
Not as standard. The ED5657AL is set up for 1-3/4 inch doors, which is the usual commercial thickness. Corbin Russwin publishes optional configurations for 2 inch (D200) and 2-1/4 inch (D214) doors in the ED5000 Series, so a thicker door needs that option called out on the order.
10) How much does this exit device stick out from the face of the door?
Projection is 3-1/4 inches in the active position and 2-3/4 inches when dogged. That matters in a corridor where clear width is tight, or where a door swings past a wall return or an adjacent door leaf.
11) What are my dogging choices on the ED5657AL, and which should I pick?
Three ways to order it: standard single point 1/4 turn hex key dogging, M52 cylinder dogging supplied less cylinder, or M51 less dogging. Hex key is the usual pick on a non-rated door where staff hold the latch retracted during business hours. Cylinder dogging suits buildings that want the same key controlling it, and you supply the mortise cylinder. Less dogging is what a fire door requires.
12) I need a wide stile mortise exit device but the door is not fire rated. What else could I use?
Several non-rated wide stile mortise devices are available. The Von Duprin 9875 smooth case and the 8875 crossbar are both Grade 1, non-handed, for 1-3/4 inch doors, and neither is fire rated, nor is either listed as wood door compatible. The Von Duprin 9475/9575 Impact Series uses a recessed push pad for abuse-prone openings. The Falcon 25-M-EO is a Grade 1 exit only wide stile device on a 36 inch bar. If you do want fire rating from another brand, the Adams Rite 3300 Series is a Grade 1 fire rated wide stile mortise device listed for wood and hollow metal doors.
13) Is the ED5657AL ADA compliant for a school or healthcare corridor?
The ED5000 Series lever trims and pulls are stated as complying with the Americans with Disabilities Act, and the device is ANSI/BHMA Grade 1. The touchpad releases with a push anywhere along the bar, which is what an egress door in an assembly or institutional occupancy needs. A photoluminescent PathLite touchpad cover is also offered if your egress path marking calls for it.
14) Can I get this exit device with electric latch retraction or delayed egress?
Yes, the ED5000 Series offers electrified options including delayed egress, electric latch retraction, and electric dogging. Those are configured options rather than something you add later, so specify the electrical function at order time along with the trim. If you need a ready-built electric latch retraction device in another line, the Sargent 1256NB-8710G is a fire rated surface vertical rod device with ELR, though it is narrow stile rather than wide.
15) Is a mortise exit device the right choice, or should I use a rim or vertical rod device?
A mortise device like the ED5657AL latches into the frame at the lock edge through a mortise pocket cut in the door, which gives a clean look and a deadlocking latch on a single door in a frame with a strike jamb. A rim device (ED5200 in the same series) surface mounts and is the simpler retrofit when you do not want to mortise the door. For a pair of doors with no center mullion you need vertical rods, which is the ED5400 surface vertical rod or ED5800 concealed vertical rod instead.
16) I do not need any outside trim - is there a simpler mortise exit device than the ED5657AL?
Yes. The ED5657AL is built to take dummy or nightlatch lever trim on the outside. If the opening needs no outside operation at all, the Falcon 25-M-EO is a Grade 1 exit-only wide stile mortise device, 36 inches, for 1-3/4 inch doors; the Detex 30 Series Advantex is a Grade 1 exit-only wide stile mortise device, not for wood doors; and the BEST Precision 2301 is a heavy wrought exit-only mortise device.
17) What should I use instead of the ED5657AL if the outside lever needs to unlock with a key and I want an electrified device?
The ED5657AL is a non-keyed dummy-function device taking dummy or nightlatch lever trim. Where the opening calls for a nightlatch wide stile mortise device with electrified operation, the Sargent 8904 is a Grade 1 wide stile mortise exit device in nightlatch function with 24VAC/DC operation. For a surface vertical rod opening with electric latch retraction instead of a mortise lock, the Sargent 1256NB-8710G is a Grade 1 fire rated 84 inch narrow stile device with electric latch retraction.
18) Which wide stile mortise exit device holds up best on an abuse-prone door compared to the ED5657AL?
The Von Duprin 9475/9575 Impact Series is a Grade 1 wide stile mortise lock exit device with a recessed push pad, built for openings that take abuse, though it is not fire rated. The ED5657AL is a Grade 1 wide stile mortise device with a touchpad-style bar and a UL Listed 3-hour fire rating, so on a labeled door the Corbin Russwin is the one that carries the rating.
19) What finishes does the Corbin Russwin ED5657AL come in for matching the rest of my building?
Eleven finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. 630 satin stainless is the common commercial standard if you are standardizing a fleet of openings.
How fast can I get the Corbin Russwin ED5657AL 629 RHR delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Corbin Russwin ED5657AL 629 RHR come with a warranty?
Absolutely. The Corbin Russwin ED5657AL 629 RHR is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Corbin Russwin ED5657AL 629 RHR?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Corbin Russwin ED5657AL 629 RHR from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
