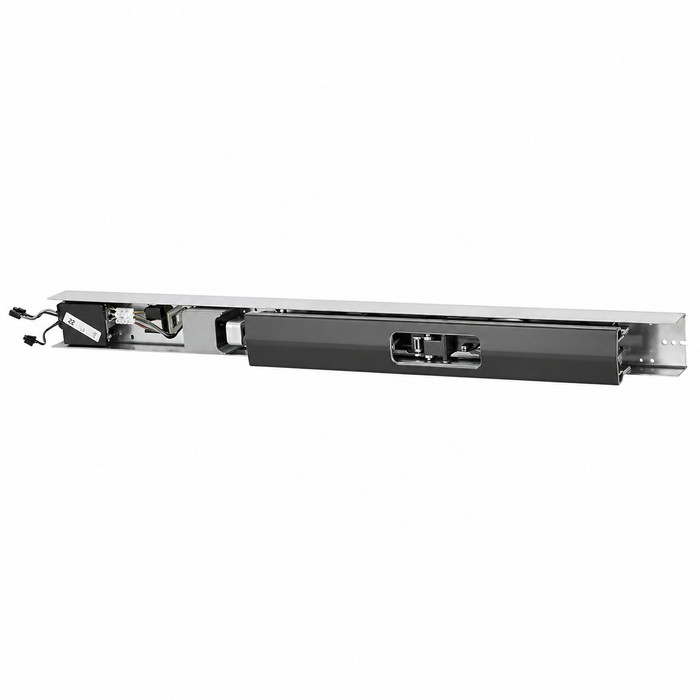

Corbin Russwin MELR Retrofit Kit for ED5000 Devices, Rail Assembly, No Switches, No Latch, with Controller, Touchbar End Cap

Corbin Russwin MELR Grade 1 Retrofit Kit for ED5000 Devices, Rail Assembly, No Switches, No Latch, with Controller, Touchbar End Cap

(No reviews yet) Write a Review

Model: CRMELR-36
$1,369.59
$784.91
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,369.59
$784.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin CRMELR-36 MELR Retrofit Kit for ED5000 Exit Devices with Rail Assembly, Controller, and Touchbar End Cap

Commercial-Grade Retrofit Solution for ED5000 Push Pad Exit Devices

The Corbin Russwin CRMELR-36 is a professional MELR Retrofit Kit engineered specifically for use with ED5000 Push Pad Exit Devices. This retrofit kit includes a complete rail assembly, controller, and touchbar end cap, and is configured with no switches and no latch, making it an ideal upgrade or replacement component for commercial and institutional door hardware installations. Corbin Russwin's commitment to ANSI/BHMA Grade 1 quality ensures this kit meets the rigorous demands of high-traffic commercial environments.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware products are manufactured to ANSI/BHMA Grade 1 standards, reflecting a longstanding dedication to high-quality commercial and institutional hardware. The CRMELR-36 MELR Retrofit Kit is engineered to integrate precisely with ED5000 Push Pad Exit Devices, delivering dependable performance in demanding commercial applications. When reliable retrofit solutions are essential, Corbin Russwin provides the professional-grade components that installers and facility managers trust.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Retrofit Kit
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Function:
Retrofit Kit
For Use With:
ED5000 Push pad Exit Device
Department:
Door Hardware

Corbin Russwin CRMELR-36 – Frequently Asked Questions

1) What does the Corbin Russwin CRMELR-36 retrofit kit actually include, and what do I still need to order?
The CRMELR kit is a rail assembly, the controller, and a touchbar end cap. It ships with no switches and no latch, so if your existing device needs a new latch or request-to-exit and latch-monitor switching, those come separately. It is a component-level upgrade for a device already hung on the door, not a complete exit device.
2) Will this Corbin Russwin MELR kit work on my existing exit device?
Only on ED5000 push pad exit devices. The kit is built for that chassis and rail, so an ED5000 series device already on the opening is what it retrofits. Put it on a Von Duprin, Precision, or any other maker's device and the rail and controller will not mate.
3) What is the narrowest door stile this ED5000 hardware will mount on?
4-1/2 inches (114mm) minimum stile width. That rules out aluminum storefront narrow stile doors, which typically run well under that. If your stile is narrower you need a narrow stile device family, not ED5000 hardware.
4) Does the ED5000 fit a 2 inch thick door, or only 1-3/4?
1-3/4 inch (44mm) is the standard thickness. Thicker doors are handled by suffix: D200 for 2 inch and D214 for 2-1/4 inch. That has to be specified when the device is ordered, so on a retrofit confirm which thickness option the device on your door was built for before you order rail components.
5) Will the ED5200 latch reach into my existing strike?
The rim latchbolt is a stainless steel pullman type with a 3/4 inch (19mm) throw and a deadlocking auxiliary latch. It works against the surface mounted 3/8 inch roller strike with a positive locking plate and shims, and the shims are what let you take up gap on a frame that is not perfectly aligned. A strike set for a different throw or a mortise style keeper will not do.
6) Should I use a rim exit device or a surface vertical rod on my pair of doors?
A rim device, the ED5200, latches into a single strike, so on a pair it needs a removable mullion between the leaves. The surface vertical rod version, the ED5400, latches at the head and the sill instead, which is how you secure a pair with no mullion and keep the full clear opening. Throws differ: SVR is 3/4 inch pullman at the top and a 5/8 inch deadbolt at the bottom.
7) Is the ED5000 approved for a fire rated opening?
The ED5000 is UL and cUL listed as panic and 3-hour fire exit hardware, meets NFPA 101 and NFPA 80, and is California State Fire Marshal approved. It is ANSI/BHMA A156.3 Grade 1. That combination is what most institutional and government specs call for on a labeled cross-corridor or stair door.
8) Is the CRMELR retrofit kit handed?
ED5000 devices are non-handed as standard, so the rail and touchbar hardware go on either hand. The exceptions are double cylinder devices and lever trim, which are handed. If you are only replacing the rail assembly, controller, and end cap, handing is not a decision you have to make.
9) How much does an ED5000 rim device stick out from the door face, and will it clear a wall on a 180 degree swing?
Projection is 3-1/4 inches (83mm) active and 2-3/4 inches (70mm) when dogged down. Use the 3-1/4 inch figure for clearance to door stops, adjacent leaves, and anything the touchbar could strike in the fully open position.
10) Can I mechanically dog an ED5000 open, and does the MELR option change that?
Standard dogging is single point 1/4 turn hex key. Cylinder dogging and electric dogging are available options instead. Note that a fire rated exit device cannot be dogged, so on a labeled opening the hold-open has to come from the electrified latch retraction and the fire alarm interface, not from the hex key.
11) What is the SecureBolt option on an ED5200S and when is it worth specifying?
SecureBolt swaps the pullman latch for a deadbolt style latchbolt, 3/4 inch (19mm) projection by 1 inch wide, positively deadlocked by an auxiliary bolt. It resists the loiding and pry attacks a beveled pullman is more open to, which is why it turns up on exterior and after-hours doors in retail and multi-tenant buildings.
12) Does the ED5000 trim meet ADA requirements for accessible egress?
Lever trims and pulls on the ED5000 comply with the ADA, and the touchbar itself is operable with a push. Free wheeling levers are offered on the trim, which is the usual answer for schools and other buildings where levers get hung on and torqued.
13) What other electrified options does the ED5000 offer besides motorized latch retraction?
Delayed egress, electric latch retraction, and electric dogging are all available on the ED5000 family. Latch retraction and electric dogging both let access control hold the device unlatched for scheduled hours; delayed egress is the one used on controlled exits where the door has to hold briefly before it releases. Which one you already have on the door determines whether an MELR rail and controller is the right retrofit.
14) What finish does the Corbin Russwin MELR retrofit kit come in?
606 satin brass. If the ED5000 devices already on your building are a different finish, the rail and end cap from this kit will not match them, so on a fleet of openings you are either standardizing on 606 or ordering the matching finish for the existing hardware.
15) Is there a photoluminescent touchpad option for the ED5000 for egress path marking?
Yes, PathLite is offered as a photoluminescent touchpad cover. It is the option that gets specified when the exit path has to stay identifiable with the power out, which comes up on stair and corridor doors in healthcare and high-rise work.
