Corbin Russwin Newport Inside Lever for CLX3352 Best SFIC 6/7-Pin

Corbin Russwin Newport Grade 1 Inside Lever for CLX3352 Best SFIC 6/7-Pin

(No reviews yet) Write a Review

Model: 860F315-NZD-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$187.69
$90.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

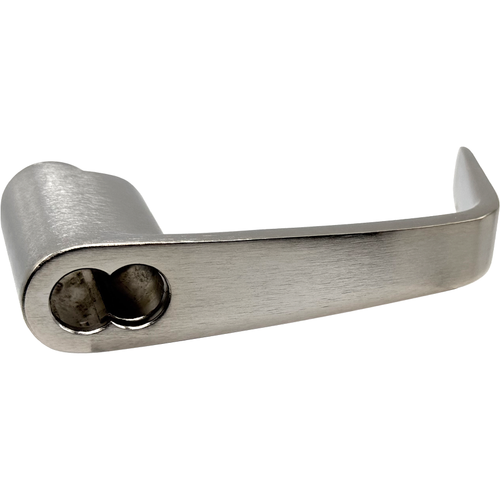

Corbin Russwin 860F315-NZD Newport Inside Lever for CLX3352 Best SFIC 6/7-Pin

Commercial-Grade Newport Lever Replacement Part for CLX3352 Cylindrical Locksets

The Corbin Russwin 860F315-NZD is a Newport-style inside lever designed specifically for use with the CLX3352 cylindrical lever lockset. This commercial-grade lever is prepped for Best SFIC 6/7-pin cylinder configurations, making it a precise replacement or upgrade component for compatible CLX3300 Series installations. Engineered for commercial door hardware applications, this lever delivers the refined Newport aesthetic alongside reliable mechanical performance expected from Corbin Russwin.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 cylindrical lock per A156.2 (2022) Series 4000
  • UL Cycle above and beyond: 20 Million Cycles (Verification ID: V875753)
  • Exceeds 3,100 in-lb abusive locked lever torque — 2.6× ANSI requirements
  • Exceeds 1,600 lbs offset lever pull — 8× ANSI requirements
  • Innovative Lever Release™ freewheeling design for vandal resistance
  • Lock chassis design supports all cylinder formats (fixed core to interchangeable core)
  • Patented adjustable push/turn button for easy door thickness adjustment
  • Available with BHSS behavioral health trim and VSL visual status indicators
  • EcoFlex® technology on CLX33900: up to 92% energy reduction (GreenCircle certified)
  • Available with 27 mechanical and 2 electrified functions
  • CLX3352 Classroom Intruder: locking from either side, always-free egress
  • ElectroLynx® 8-pin molex connector on electrified units
  • Ten-year limited mechanical warranty (two-year limited electrical)

Technical Specifications

  • Grade: ANSI/BHMA A156.2 (2022) Series 4000, Grade 1
  • Door Prep: ANSI/SDI A250.14
  • Handing: Non-handed
  • Door Thickness: 1-3/4" 2" (44–51mm) standard; optional 1-3/8" (D138) or over 2" up to 2-1/4" (D214)
  • Backset: 2-3/4" (70mm) standard; optional 2-3/8", 3-3/4", 5"
  • Minimum Stile: 4-1/2" (114mm)
  • Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) deadlocking fire latch
  • Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" standard
  • Strike: Wrought brass or stainless steel, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Electrified Voltage: 12VDC or 24VDC; range 10.2–26.4VDC (CLX33900)
  • Electrified Current: 10mA continuous; 500mA peak @ 12VDC or 24VDC
  • Operating Temperature: -13°F (-25°C) to 151°F (66°C) (electrified)
  • Certifications: ANSI/BHMA A156.2 Grade 1; UL/cUL 3-hour; UL294 (electrified); NFPA 80; ADA A117.1; Windstorm/Hurricane certified
  • Warranty: Ten-year limited mechanical; two-year limited electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware components are engineered to commercial-grade standards, delivering reliable performance in demanding, high-traffic environments. The Newport Inside Lever for CLX3352 is purpose-built for Best SFIC 6/7-pin cylinder compatibility, ensuring a precise fit within the CLX3300 Series cylindrical lockset platform. Backed by Corbin Russwin's reputation for professional-grade mechanical lock hardware, this component is a dependable choice for commercial door hardware maintenance and installation projects.

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lever
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Attribute:
Parts and Accessories
Product Model:
860F315-NZD
Lever Type Details:
Newport
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin 860F315-NZD-626 – Frequently Asked Questions

1) Will the Corbin Russwin 860F315-NZD Newport lever work with my Best SFIC cylinder?
The 860F315-NZD is prepped for Best SFIC 6-pin and 7-pin cylinder configurations, so a Best small format interchangeable core drops into it. It is the inside lever for the CLX3352 cylindrical lockset, and the CLX3300 chassis accepts all cylinder formats from fixed core through interchangeable core.
2) Is this Newport lever handed, or will it work on either a left or right hand door?
Non-handed. The Newport inside lever for the CLX3352 installs on either hand of door, so you do not need to specify handing when ordering a replacement.
3) What door thickness and backset does the CLX3352 lockset this lever belongs to fit?
Standard is 1-3/4 inch to 2 inch (44-51mm) door thickness with a 2-3/4 inch (70mm) backset. Thinner 1-3/8 inch doors use the D138 option, and doors over 2 inch up to 2-1/4 inch use D214. Backsets of 2-3/8 inch, 3-3/4 inch and 5 inch are also available. A patented adjustable push/turn button handles the door thickness adjustment.
4) Can I use a CLX3352 lockset on a narrow aluminum or glass door stile?
Only if the stile is at least 4-1/2 inches (114mm), which is the minimum stile for the CLX3300 Series cylindrical lockset. Narrower storefront stiles will not take this lock; you need a narrow stile device instead.
5) Will the CLX3352 latch into my existing ANSI strike?
The standard latchbolt is stainless steel with a 1/2 inch (13mm) throw, and the supplied strike is an ANSI curved lip, 4-7/8 x 1-1/4 inches with 1-1/4 inch lip to center, so it drops into a standard ANSI 4-7/8 frame prep. For fire openings there is an optional 3/4 inch (19mm) deadlocking fire latch. Door prep follows ANSI/SDI A250.14.
6) What does the CLX3352 classroom intruder function actually do?
CLX3352 is the Classroom Intruder function: the door can be locked from either side, inside or outside, using the key, and egress from the inside is always free. That is what lets a teacher secure a classroom without stepping into the corridor.
7) Is the Corbin Russwin CLX3300 lockset rated for a fire door and for ADA compliance?
Yes on both. The CLX3300 Series carries ANSI/BHMA A156.2 (2022) Series 4000 Grade 1, UL/cUL 3-hour fire rating, NFPA 80, and ADA A117.1 compliance. Electrified versions add UL294, and the series is also windstorm/hurricane certified.
8) Is this the complete lockset or just the lever?
Just the inside lever. The 860F315-NZD is the Newport-style inside lever trim for a CLX3352 cylindrical lockset, sold as a replacement or upgrade component. The chassis, latch, strike and cylinder are separate.
9) Is a lever lock like this durable enough for a school corridor or other high-abuse opening?
The CLX3300 platform is tested to 20 million cycles under UL, exceeds 3,100 in-lb of abusive locked lever torque (2.6 times the ANSI requirement) and over 1,600 lbs of offset lever pull (8 times ANSI). The Lever Release freewheeling design lets the lever spin free under abuse rather than break the chassis, which is why it holds up on student-traffic doors.
10) If I am specifying a CLX3300 lockset for a behavioral health or a room-status opening, what options exist?
The CLX3300 Series can be ordered with BHSS behavioral health trim for anti-ligature openings and with VSL visual status indicators that show locked/unlocked at a glance. Both are order options on the series, not something added after the fact.
11) What voltage do the electrified CLX3300 locks run on and how do they wire in?
Electrified versions take 12VDC or 24VDC, with an operating range of 10.2 to 26.4VDC on the CLX33900. Draw is 10mA continuous with a 500mA peak. They terminate in an ElectroLynx 8-pin molex connector, and the electrified units are rated from -13F (-25C) to 151F (66C). EcoFlex technology on the CLX33900 cuts energy use by up to 92%.
12) Can I keep one lock platform across a whole building with different functions per door?
Yes. The CLX3300 Series is offered in 27 mechanical and 2 electrified functions, all on the same chassis and the same door prep (ANSI/SDI A250.14), so classroom intruder, storeroom, office and electrified openings can be standardized on one platform with common trim and finish.
13) What finish does the 860F315-NZD Newport inside lever come in?
Satin chrome, BHMA 626. That is the common commercial finish, so it matches 626 exit devices, closers and cylindrical locks already hanging on the rest of the building.
