Corbin Russwin Princeton Inside Lever for CLX3352 Best SFIC 6/7-Pin

Corbin Russwin Princeton Grade 1 Inside Lever for CLX3352 Best SFIC 6/7-Pin

(No reviews yet) Write a Review

Model: 860F515-PZD-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$187.69
$90.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

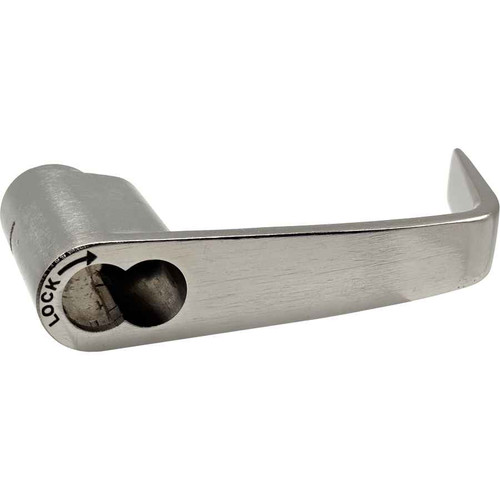

Corbin Russwin 860F515-PZD Princeton Inside Lever for CLX3352 Best SFIC 6/7-Pin

Commercial-Grade Princeton Lever Accessory for CLX3352 Cylindrical Locksets

The Corbin Russwin 860F515-PZD is a Princeton-style inside lever designed specifically for use with the CLX3352 cylindrical lever lockset. This PZ lever is factory-prepped for Best SFIC 6/7-pin small format interchangeable core cylinders, making it a precise replacement or configuration component for commercial door hardware installations. Engineered for commercial applications, this lever integrates seamlessly with the CLX3300 Series cylindrical lever lockset platform.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 cylindrical lock per A156.2 (2022) Series 4000
  • UL Cycle above and beyond: 20 Million Cycles (Verification ID: V875753)
  • Exceeds 3,100 in-lb abusive locked lever torque — 2.6× ANSI requirements
  • Exceeds 1,600 lbs offset lever pull — 8× ANSI requirements
  • Innovative Lever Release™ freewheeling design for vandal resistance
  • Lock chassis design supports all cylinder formats (fixed core to interchangeable core)
  • Patented adjustable push/turn button for easy door thickness adjustment
  • Available with BHSS behavioral health trim and VSL visual status indicators
  • EcoFlex® technology on CLX33900: up to 92% energy reduction (GreenCircle certified)
  • Available with 27 mechanical and 2 electrified functions
  • CLX3352 Classroom Intruder: locking from either side, always-free egress
  • ElectroLynx® 8-pin molex connector on electrified units
  • Ten-year limited mechanical warranty (two-year limited electrical)

Technical Specifications

  • Grade: ANSI/BHMA A156.2 (2022) Series 4000, Grade 1
  • Door Prep: ANSI/SDI A250.14
  • Handing: Non-handed
  • Door Thickness: 1-3/4" 2" (44–51mm) standard; optional 1-3/8" (D138) or over 2" up to 2-1/4" (D214)
  • Backset: 2-3/4" (70mm) standard; optional 2-3/8", 3-3/4", 5"
  • Minimum Stile: 4-1/2" (114mm)
  • Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) deadlocking fire latch
  • Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" standard
  • Strike: Wrought brass or stainless steel, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Electrified Voltage: 12VDC or 24VDC; range 10.2–26.4VDC (CLX33900)
  • Electrified Current: 10mA continuous; 500mA peak @ 12VDC or 24VDC
  • Operating Temperature: -13°F (-25°C) to 151°F (66°C) (electrified)
  • Certifications: ANSI/BHMA A156.2 Grade 1; UL/cUL 3-hour; UL294 (electrified); NFPA 80; ADA A117.1; Windstorm/Hurricane certified
  • Warranty: Ten-year limited mechanical; two-year limited electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware components are engineered to deliver consistent, commercial-grade performance as genuine OEM parts for the CLX3300 Series cylindrical lever lockset platform. The 860F515-PZD Princeton inside lever is purpose-built for Best SFIC 6/7-pin cylinder compatibility, ensuring reliable integration with existing master key systems. Designed for commercial applications where precise fit and dependable operation are essential.

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lever
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Attribute:
Parts and Accessories
Product Model:
860F515-PZD
Lever Type Details:
Princeton
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin 860F515-PZD-626 – Frequently Asked Questions

1) Is the Corbin Russwin 860F515-PZD a complete lockset or just the lever?
It's the inside lever only, Princeton style, for the CLX3352 cylindrical lockset. Buy it as a replacement or configuration piece when the lever itself is damaged or you're changing trim style, not as a full lock. Chassis, latch, strike and cylinder are separate.
2) Will this Princeton lever take my Best small format interchangeable cores?
Yes. The PZD lever is factory prepped for Best SFIC 6- and 7-pin small format interchangeable cores, so it drops into an existing Best-keyed master key system without a separate housing change. If your building runs full-size figure-8 or conventional Corbin Russwin cylinders, this is the wrong prep.
3) What door thickness and backset does the CLX3352 lockset this lever fits use?
Standard is 1-3/4 inch to 2 inch (44-51mm) door thickness with a 2-3/4 inch (70mm) backset. Thinner 1-3/8 inch doors use the D138 option, and over 2 inch up to 2-1/4 inch uses D214. Backsets of 2-3/8, 3-3/4 and 5 inches are also available. An adjustable push/turn button handles the thickness adjustment at install.
4) Will this lever fit a narrow aluminum stile door?
The lockset it belongs to needs a minimum stile of 4-1/2 inches (114mm), so typical narrow stile aluminum storefront doors are out. For those openings you want a narrow stile deadlatch or an exit device with narrow stile trim instead.
5) Is the CLX3352 lockset this lever goes on rated for a fire door?
Yes. The platform is UL/cUL 3-hour listed and meets NFPA 80, along with ANSI/BHMA A156.2 (2022) Series 4000 Grade 1, ADA A117.1, and windstorm/hurricane certification. Electrified versions add UL294. For a fire opening you'd specify the 3/4 inch (19mm) deadlocking fire latch rather than the standard 1/2 inch throw latchbolt.
6) What does the CLX3352 function actually do, and why does the inside lever matter?
CLX3352 is the Classroom Intruder function: it can be locked from either side of the door, and egress from the inside is always free. That's why the inside lever carries its own cylinder prep, in this case Best SFIC 6/7-pin, so a teacher can lock the door from inside the room without stepping into the corridor.
7) Do I need to order a handed lever for the inside of the door?
No handing to specify. The CLX3300 Series is non-handed, so the same Princeton inside lever works on a left or right hand door.
8) Is this lever trim strong enough for a school corridor that gets abused?
It's built for that. The CLX3300 platform exceeds 3,100 in-lb of abusive locked lever torque (2.6 times the ANSI requirement) and 1,600 lbs of offset lever pull (8 times ANSI), and the Lever Release freewheeling design lets the lever spin rather than break the chassis when someone hangs on it. UL cycle verification is 20 million cycles.
9) Will my existing ANSI strike still work if I'm swapping out the lock hardware?
The CLX3352 uses a standard ANSI curved lip strike, 4-7/8 x 1-1/4 inches with 1-1/4 inch lip to center, in wrought brass or stainless. Standard latchbolt throw is 1/2 inch (13mm). If your frame is already prepped to ANSI/SDI A250.14 with that strike, the hardware drops in.
10) Can the CLX3352 be ordered electrified for an access control tie-in?
The CLX3300 platform offers 27 mechanical and 2 electrified functions. Electrified units run 12VDC or 24VDC, 10mA continuous with a 500mA peak, and use an ElectroLynx 8-pin molex connector. Operating range on the CLX33900 is 10.2 to 26.4VDC, rated -13F to 151F. Note this Princeton lever itself is a mechanical trim component.
11) Is the Princeton lever suitable for a behavioral health or psychiatric unit door?
Standard Princeton trim is not the ligature-resistant option. The CLX3300 Series offers BHSS behavioral health trim, plus VSL visual status indicators, for those rooms. Specify BHSS on the lockset rather than a standard lever if the opening is in a patient area.
12) What finish does the 860F515-PZD Princeton lever come in?
Satin chrome, finish code 626. If the rest of your openings are 626, this matches; a 630 satin stainless or 613 oil rubbed opening will not blend with it.
