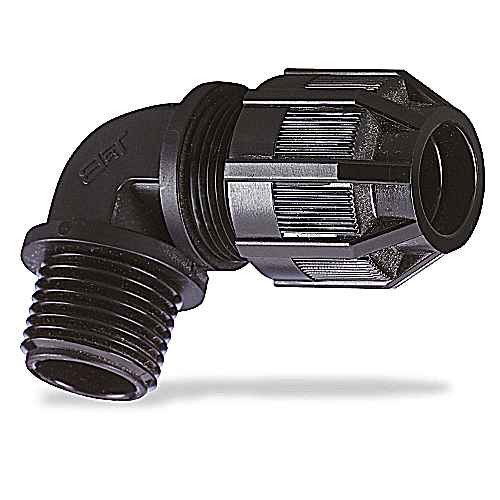

Cord Connectors-90 Degree
4970NM - spec sheet
Features
- Reduced overall size, fits into tighter spaces.
- Gland nut designed to restrict cable bending.
- Suitable for Ordinary, Wet or Dry locations.
- Extended range with superior strain relief.
- Provide a means for passing a cord cable into an enclosure through a bulkhead
4970NM - spec sheet
Manufacturer Resources
Product Specs
- Color:
- Black
- Colour:
- Black
- Conductor Range:
- 0.125 Inch/3.2mm to 0.375 Inch/9.5mm
- Degree Of Protection Ip :
- IP65
- Environmental Conditions:
- Ordinary, Wet, or Dry Locations
- Etim:
- EC000441 Cable screw gland
- Inner Dimensions Inches :
- 6x4.5x3
- Inner Quantity:
- 10
- Material:
- Polyamide/Nylon 6.6
- Material Quality:
- Polyamide (PA)
- Model:
- 90°-elbow
- Nominal Thread Size Inch Gas Pipe Thread:
- 3/4 inch
- Operating Temperature:
- -34-+105°C
- Outer Dimensions Inches :
- 12.8x10.7x6
- Outer Quantity:
- 50
- Product Group:
- Connectors
- Standard:
- UL E13938, CSA 52391
- Strain Relief:
- Y
- Suitable For Cable Diameter:
- 3.2-9.5mm
- Temperature Rating:
- -34 to +105 Degrees C
- Thread Length:
- 15.875mm
- Thread Type:
- NPT
- Type:
- Cord Connectors-90 Degree
- Unspsc:
- 39121431 Cable gland connector
- Weight Uom:
- 10 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Cord Connectors-90 Degree
