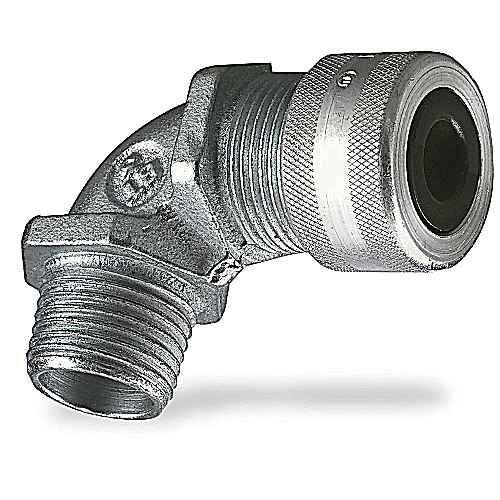

Cord Connectors-90 Degree
4971AL - spec sheet
Features
- Suitable for Ordinary, Wet or Dry locations.
- Gland nut designed to restrict cable bending.
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b).
- Provide a means for passing a cord cable into an enclosure through a bulkhead
- Reduced overall size, fits into tighter spaces.
- Extended range with superior strain relief.
4971AL - spec sheet
Manufacturer Resources
Product Specs
- Color:
- Metallic
- Colour:
- Natural colour
- Conductor Range:
- 0.310 to 0.560 Inch
- Environmental Conditions:
- Ordinary, Wet, or Dry Locations
- Etim:
- EC000441 Cable screw gland
- Inner Dimensions Inches :
- 6.25x4.75x3.25
- Inner Quantity:
- 10
- Material:
- Metal
- Material Quality:
- Aluminium
- Model:
- 90°-elbow
- Nominal Thread Size Inch Gas Pipe Thread:
- 3/4 inch
- Outer Dimensions Inches :
- 21.62x5.12x6.62
- Outer Quantity:
- 50
- Product Group:
- Connectors
- Standard:
- UL E13938, CSA 52391
- Suitable For Cable Diameter:
- 7.874-14.224mm
- Thread Length:
- 17.46mm
- Thread Type:
- NPT
- Type:
- Cord Connectors-90 Degree
- Unspsc:
- 39121431 Cable gland connector
- Weight Uom:
- 17.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Cord Connectors-90 Degree
