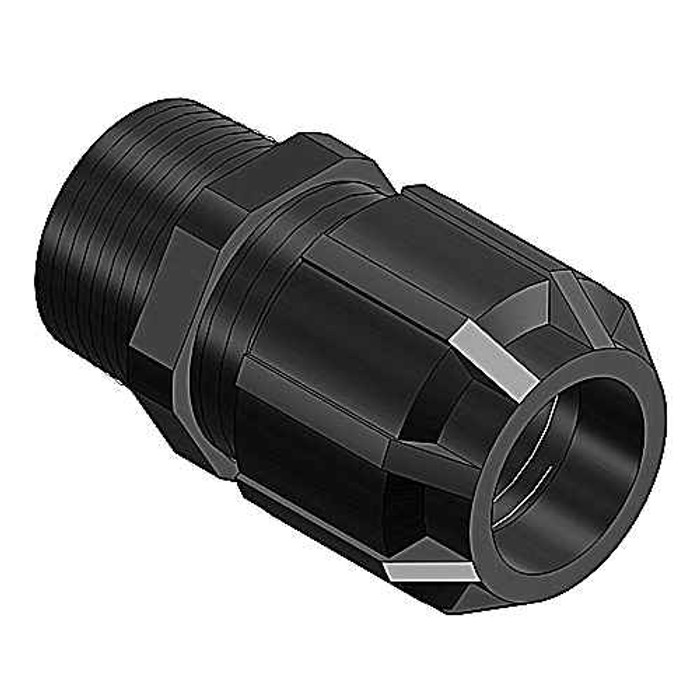

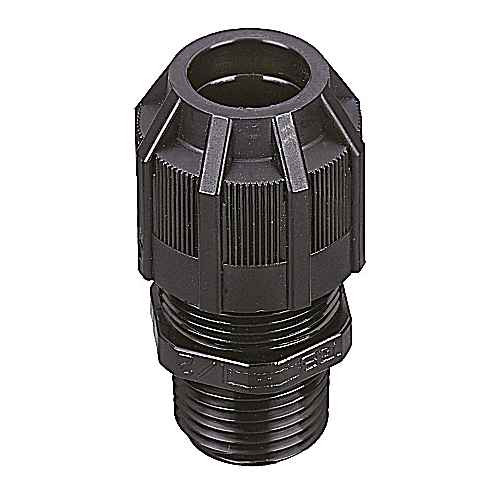

Thomas & Betts 3/4 Inch NPT Straight Cord Connector with Superior Strain Relief
Professional Cable Entry Solution with Extended Range Performance
The Thomas & Betts 3/4 inch NPT straight cord connector delivers reliable cable entry performance for electrical enclosures with superior strain relief design. Constructed from durable Polyamide/Nylon 6.6 material with IP65 protection rating, this connector accommodates conductor ranges from 0.310 to 0.560 inches (7.9-14.2mm) while operating reliably in temperatures from -34�C to +105�C. The gland nut design restricts cable bending to protect cable integrity in demanding applications.
Professional Features & Benefits
- 3/4 Inch NPT Threading: Standard pipe thread connection ensures secure mounting and compatibility with common electrical enclosures and junction boxes.
- Superior Strain Relief Design: Extended range strain relief with specialized gland nut prevents cable damage and maintains connection integrity under mechanical stress.
- IP65 Protection Rating: Sealed construction provides dust-tight and water-resistant performance for reliable operation in wet, dry, or ordinary locations.
- Wide Conductor Range: Accommodates cables from 0.310 to 0.560 inches (7.9-14.2mm) diameter, offering versatility for various cable sizes and applications.
- Polyamide/Nylon 6.6 Construction: High-strength thermoplastic material provides excellent chemical resistance, durability, and long-term performance.
- Extended Temperature Range: Operates reliably from -34�C to +105�C, suitable for both indoor and outdoor installations in varying climatic conditions.
- UL and CSA Listed: UL E13938 and CSA 52391 certifications ensure compliance with North American electrical safety standards.
Technical Specifications
- Color: Black
- Colour: Black
- Conductor Range: 0.310 Inch/7.9mm to 0.560 Inch/14.2mm
- Degree Of Protection Ip: IP65
- Department: Electrical
- Environmental Conditions: Ordinary, Wet, or Dry Locations
- Etim: EC000441 Cable screw gland
- Inner Dimensions Inches: 5x4.5x3
- Inner Quantity: 10
- Material: Polyamide/Nylon 6.6
- Material Quality: Polyamide (PA)
- Nominal Thread Size Inch Gas Pipe Thread: 3/4 inch
- Operating Temperature: -34-+105�C
- Outer Dimensions Inches: 24x11x4.1
- Outer Quantity: 100
- Product Details: Cord Connectors-Straight
- Product Group: Connectors
- Product Model: Straight
- Product Subgroup: Electrical Connectors
- Product Type: Cord Connectors-Straight
- Standard: UL E13938, CSA 52391
- Strain Relief: Y
- Suitable For Cable Diameter: 7.9-14.2mm
- Temperature Rating: -34 to +105 Degrees C
- Thread Length: 15.875mm
- Thread Type: NPT
- Unspsc: 39121431 Cable gland connector
- Weight Uom: 6.5 lbs. per 100
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Industrial Control Panels and Electrical Enclosures
- Commercial Building Electrical Systems
- Outdoor Electrical Equipment Installations
- Manufacturing Facility Power Distribution
- Process Control and Automation Systems
- Marine and Harsh Environment Applications
- Telecommunications Equipment Housings
Why Choose Thomas & Betts Quality?
Thomas & Betts cord connectors deliver proven reliability with UL E13938 and CSA 52391 certifications, ensuring compliance with rigorous North American safety standards. The IP65-rated construction and extended temperature range from -34�C to +105�C provide dependable performance in demanding environmental conditions, while the superior strain relief design protects cable integrity for long-term operational reliability.
Manufacturer Resources
Product Specs
- Colour:
- Black
- Conductor Range:
- 0.310 Inch/7.9mm to 0.560 Inch/14.2mm
- Degree Of Protection Ip :
- IP65
- Environmental Conditions:
- Ordinary, Wet, or Dry Locations
- Etim:
- EC000441 Cable screw gland
- Inner Dimensions Inches :
- 5x4.5x3
- Inner Quantity:
- 10
- Material:
- Polyamide/Nylon 6.6
- Material Quality:
- Polyamide (PA)
- Nominal Thread Size Inch Gas Pipe Thread:
- 3/4 inch
- Operating Temperature:
- -34-+105°C
- Outer Dimensions Inches :
- 24x11x4.1
- Outer Quantity:
- 100
- Product Group:
- Connectors
- Standard:
- UL E13938, CSA 52391
- Strain Relief:
- Y
- Suitable For Cable Diameter:
- 7.9-14.2mm
- Temperature Rating:
- -34 to +105 Degrees C
- Thread Length:
- 15.875mm
- Thread Type:
- NPT
- Unspsc:
- 39121431 Cable gland connector
- Weight Uom:
- 6.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Cord Connectors-Straight
- Product Model:
- Straight
- Product Details:
- Cord Connectors-Straight
- Product Color:
- Black
