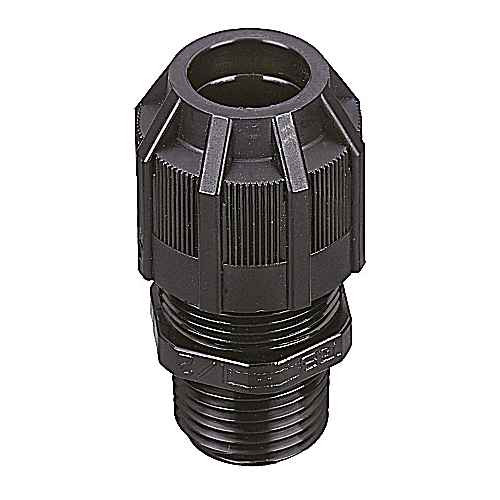

Thomas & Betts Straight Cord Connector 1/2 inch NPT IP65 Rated Cable Gland with Superior Strain Relief

Thomas & Betts Straight Cord Connector 1/2 inch NPT IP65 Rated Cable Gland with Superior Strain Relief

Professional Cable Management with Reduced Profile Design

The Thomas & Betts straight cord connector delivers reliable cable entry solutions with its reduced overall size that fits into tighter spaces. Constructed from durable Polyamide/Nylon 6.6 material with IP65 protection rating, this 1/2 inch NPT threaded connector provides superior strain relief for conductor ranges from 0.310 to 0.560 inches (7.9-14.2mm). The gland nut design restricts cable bending while maintaining secure connections in ordinary, wet, or dry locations with operating temperatures from -34�C to +105�C.

Professional Features & Benefits

• 1/2 inch NPT Threading: Standard pipe thread connection ensures compatibility with common electrical enclosures and junction boxes.
• IP65 Protection Rating: Provides dust-tight and water-resistant sealing for reliable performance in challenging environments.
• Superior Strain Relief Design: Extended range strain relief protects cables from damage while the gland nut restricts harmful cable bending.
• Polyamide/Nylon 6.6 Construction: Durable material withstands temperature extremes from -34�C to +105�C for long-term reliability.
• Reduced Profile Design: Compact overall size allows installation in tighter spaces where standard connectors may not fit.
• UL E13938 & CSA 52391 Listed: Meets rigorous safety standards for professional electrical installations.
• Versatile Location Rating: Suitable for ordinary, wet, or dry locations providing installation flexibility.

Technical Specifications

• Color: Black
• Colour: Black
• Conductor Range: 0.310 Inch/7.9mm to 0.560 Inch/14.2mm
• Degree Of Protection Ip: IP65
• Department: Electrical
• Environmental Conditions: Ordinary, Wet, or Dry Locations
• Etim: EC000441 Cable screw gland
• Inner Dimensions Inches: 6x5x4
• Inner Quantity: 25
• Material: Polyamide/Nylon 6.6
• Material Quality: Polyamide (PA)
• Nominal Thread Size Inch Gas Pipe Thread: 1/2 inch
• Operating Temperature: -34-+105�C
• Outer Dimensions Inches: 12.75x8.75x5.75
• Outer Quantity: 100
• Product Details: Cord Connectors-Straight
• Product Group: Connectors
• Product Model: Straight
• Product Subgroup: Electrical Connectors
• Product Type: Cord Connectors-Straight
• Standard: UL E13938, CSA 52391
• Strain Relief: Y
• Suitable For Cable Diameter: 7.9-14.2mm
• Temperature Rating: -34 to +105 Degrees C
• Thread Length: 15.875mm
• Thread Type: NPT
• Unspsc: 39121431 Cable gland connector
• Weight Uom: 4.5 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Electrical Enclosures
• Commercial Building Electrical Systems
• Manufacturing Equipment Cable Entry
• Outdoor Electrical Installations
• Process Control and Automation Systems
• Marine and Harsh Environment Applications
• Telecommunications Equipment Installations

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven reliability with UL E13938 and CSA 52391 listings ensuring compliance with rigorous safety standards. The durable Polyamide/Nylon 6.6 construction and IP65 protection rating provide long-term performance in demanding applications, while the superior strain relief design protects your cable investments from damage and premature failure.
