Leviton 303SS Corrosion Resistant Power Locking Inlet, 30A-125V, NEMA L5-30, Stainless Steel

(No reviews yet) Write a Review

Model: 303SS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.71
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

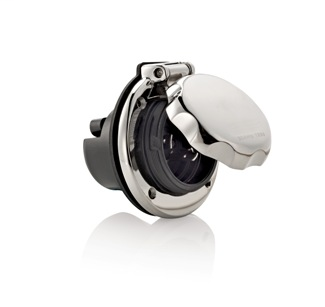

Leviton 303SS Corrosion Resistant Power Locking Inlet, 30A-125V, NEMA L5-30, Stainless Steel

The Leviton 303SS is a Corrosion Resistant Power Locking Inlet rated 30A-125V, 2-Pole 3-Wire, NEMA L5-30, engineered for demanding corrosive environments. It features a Polished Stainless Steel Quick-Lock cap and enclosure with rubber sealing to protect the connection point from moisture and contaminants. Built with a Marine Grade SS contact material and a Nylon enclosure rated V-0 per UL 94 for flammability resistance, this inlet is designed for reliable power connections in harsh-duty applications.

Key Features

  • Amperage Rating: 30 A for demanding power-locking connections.
  • Voltage Rating: 125 VAC, 2-Pole 3-Wire configuration, NEMA L5-30.
  • Durable Construction: Marine Grade SS contacts with a Polished Stainless Steel Quick-Lock cap and enclosure for corrosion resistance.
  • Enclosure Material: Nylon enclosure rated V-0 per UL 94, resisting flame propagation.
  • Sealing: Includes rubber sealing to guard against moisture intrusion at the connection.
  • Environment: Rated for Corrosive environments, ideal for marine, industrial, and outdoor power applications.
  • Quick-Lock Design: Polished stainless steel Quick-Lock cap secures the mating plug for a tight, reliable connection.

Certifications & Compliance

  • UL498 Listed, File 13393
  • CSA C22.2 No. 42 Certified, File LR-406
  • Flammability Rated V-0 per UL 94

Technical Specifications

  • Csa C22 2 No 42: File LR-406
  • Enclosure Material: Nylon
  • Amperage Rating: 30 A
  • Environment: Corrosive
  • Flammability Class: Rated V-0 per UL 94
  • Pole: 2
  • Ul498: File 13393
  • Wire Count: 3
  • Product Voltage: 125 VAC
  • Product Material: Marine Grade SS

Typical Applications

  • Marine and Dockside Power Connections
  • Corrosive and Wash-Down Industrial Environments
  • Outdoor Power Distribution Equipment
  • Portable Generator and Power Locking Applications
  • Food Processing and Chemical Plant Wiring

Why Leviton?

Leviton builds the 303SS with Marine Grade SS contacts, a Nylon enclosure rated V-0 per UL 94, and UL498/CSA C22.2 No. 42 certification for dependable, code-compliant performance. This corrosion resistant power locking inlet is engineered to hold up in harsh, corrosive environments while delivering a secure, sealed connection for professional electrical work.

[{"name": "Product Type", "value": "Power Inlet"}, {"name": "Product Material", "value": "Marine Grade SS"}, {"name": "Amperage Rating", "value": "30A"}, {"name": "Voltage Rating", "value": "125 VAC"}, {"name": "Configuration", "value": "2-Pole 3-Wire"}, {"name": "Finish", "value": "Polished Stainless Steel"}, {"name": "Listing", "value": "UL498"}, {"name": "Standards", "value": "CSA C22.2 No. 42"}]

Manufacturer Resources

Product Specs

Csa C22 2 No 42:
File LR-406
Enclosure Material:
Nylon
Product Group:
Wiring Devices
Department:
Electrical
Product Subgroup:
Plugs & Connectors
Amperage Rating:
30 A
Environment:
Corrosive
Flammability Class:
Rated V-0 per UL 94
Housing Gasket:
Rubber
Pole:
2
Ul498:
File 13393
Wire Count:
3
Product Voltage:
125 VAC
Product Material:
Marine Grade SS
Product Type:
Locking Flanged Inlet

Leviton 303SS – Frequently Asked Questions

1) Is this inlet suitable for a dock or a salt-air marine installation?
That is what it is built for. The contacts are Marine Grade stainless steel, the enclosure carries a polished stainless steel Quick-Lock cap, and a rubber housing gasket seals the connection point against moisture. Leviton rates the 303SS for corrosive environments, which covers dockside power, wash-down areas, and chemical or food processing plants.
2) Will the 303SS work on a 240 volt circuit?
No. It is rated 125 VAC, 2-pole 3-wire, which is a single hot, a neutral, and a ground. A 240V 30A twist-lock connection needs an L6-30 device such as the Eaton L6-30 two-pole three-wire locking plug and its matching inlet. Putting 240V across an L5-30 device is both a configuration mismatch and outside its rating.
3) What is the difference between the Leviton 303SS and the Eaton L6-30 locking plug for a 30A run?
They are different devices on both counts. The Leviton 303SS is a power inlet rated 125 VAC, 2-pole 3-wire, built for corrosive environments with Marine Grade SS contacts and a rubber housing gasket. The Eaton L530P is a locking plug in the L6-30 configuration, two-pole three-wire, with a nylon body. L6-30 is a 250V configuration and will not mate with a 125V L5-30 device, so the two are not interchangeable even though both are 30A two-pole three-wire. Choose by the voltage of the circuit and by whether you need a flanged inlet mounted on equipment or a cord-end plug.
4) I need the cord-end plug that goes with a 30A 125V inlet, not another inlet. What are my options?
The Leviton 303SS is the equipment-side inlet, so you still need a mating locking plug on the cord. Among locking plugs, the Eaton L530P is an L6-30 device and the Bryant 4722N is an L5-15P angle plug at 15A 125V, so neither matches an L5-30 125V configuration. Locking configurations are keyed by blade pattern, so the cord plug has to carry the same configuration designation as the inlet to engage.
5) My generator connection is 50A or 20A, not 30A. What should I be looking at instead of the 303SS?
The Leviton 303SS is fixed at 30 A, 125 VAC, 2-pole 3-wire, so it will not serve a circuit at another ampacity. For a 20A cord end, the Eaton 7411-C Safety Grip locking plug is rated 20A at 120/208V in a heavy-duty specification grade. For a 50A circuit, the Eaton 7765 industrial armored locking plug is rated 50A 600V/250Vdc with back-wiring terminals in an extra heavy duty build. Match the device to the breaker and conductor size on the circuit rather than adapting across ratings.
6) Why choose the stainless 303SS over a standard nylon locking device?
Corrosion. Standard industrial locking devices, like the Bryant 71020NP non-metallic plug or the Eaton Safety Grip 20A 120/208V, are built for dry or general industrial duty. The 303SS uses Marine Grade stainless contacts and a polished stainless Quick-Lock cap with a rubber seal, for salt spray, wash-down, and chemical exposure. If the device is indoors and dry, the stainless premium buys you nothing.
7) How many conductors do I need to land on a 30A 125V L5-30 inlet?
Three: hot, neutral, and equipment ground. The 303SS is a 2-pole 3-wire device at 30 A, 125 VAC. Size the branch conductors for the 30 amp rating and pull a separate ground; there is no fourth terminal for a second hot.
8) Does the 303SS inlet come sealed, or do I need a separate weatherproof cover?
Sealing is built in. The housing uses a rubber gasket and the polished stainless Quick-Lock cap closes over the face to keep moisture and contaminants out of the connection when nothing is plugged in. The enclosure body itself is nylon rated V-0 per UL 94.
9) I need a 50 amp locking device, not 30 amp. What should I look at?
The 303SS tops out at 30 A, so it is the wrong device. For heavier duty, the Eaton 7765 industrial armored locking plug is rated 50A at 600V/250Vdc with back-wiring, classed extra heavy duty. Match the NEMA configuration on your cord before ordering, since a 50A device will not mate with an L5-30 face.
10) For a wash-down or dockside application, what makes the 303SS different from a standard nylon locking device?
The Leviton 303SS is specified for corrosive environments and uses Marine Grade SS contact material with a rubber housing gasket at the connection point, while its enclosure is nylon rated V-0 per UL 94. By contrast, the Bryant 71020NP is a non-metallic 7 Series locking plug and the Eaton L530P is a nylon-bodied commercial grade device, neither of which is described with a corrosion-environment rating. For salt spray, chemical exposure, or regular wash-down, the stainless contact material and gasketed housing are the deciding specs.
