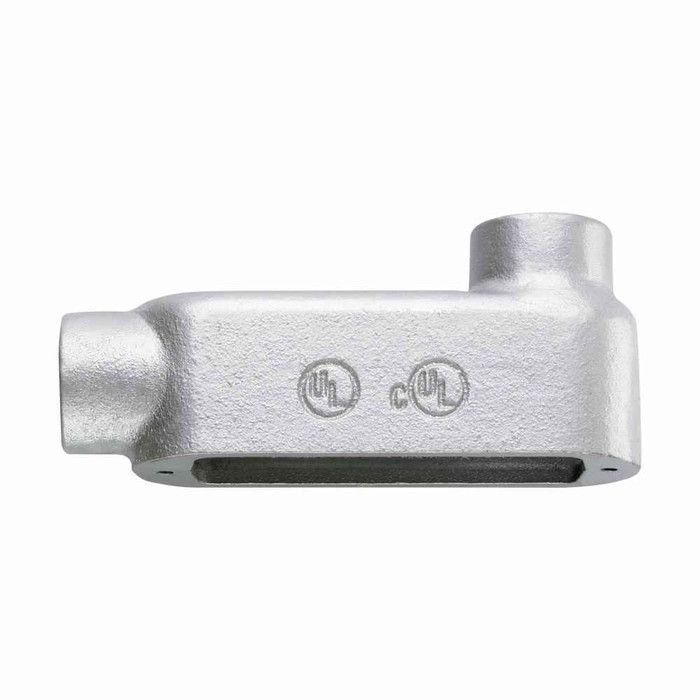

Eaton Crouse-Hinds 2" LB Condulet Form 5 Outlet Body, Malleable Iron with Built-in Rollers

Eaton Crouse-Hinds 2" LB Condulet Form 5 Outlet Body

Heavy-Duty Malleable Iron Construction with Built-in Wire Pulling Rollers

The Eaton Crouse-Hinds 2" LB Condulet Form 5 Outlet Body is a premium-grade conduit fitting engineered for demanding commercial and industrial electrical installations. This malleable iron outlet body delivers superior strength and durability with integrated wire pulling rollers that significantly reduce installation time and protect conductors during wire pulling operations.

Key Features & Benefits

Superior Material Construction

• Malleable Iron Body - Provides exceptional strength that exceeds steel construction, ensuring decades of reliable service in harsh environments
• Precision Cast Design - Delivers consistent dimensional accuracy and smooth interior surfaces for optimal conductor protection
• Corrosion Resistant Finish - Factory-applied coating protects against environmental degradation in outdoor and industrial applications
• Heavy-Duty Wall Thickness - Engineered to withstand mechanical stress and impact in demanding installations

Installation Efficiency Features

• Built-in Wire Pulling Rollers - Integrated rollers reduce friction during wire pulling, protecting conductor insulation and reducing installation time
• LB Shape Configuration - 90-degree elbow design provides optimal access for wire pulling and maintenance in tight spaces
• Removable Cover - Large access opening simplifies wire installation, splicing, and future maintenance operations
• Standard Threading - Compatible with rigid conduit, IMC, and threaded fittings for versatile system integration

Code Compliance & Safety

• NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements for conduit outlet bodies
• Form 5 Classification - Designed for ordinary/non-hazardous locations with standard environmental protection
• Grounding Continuity - Ensures reliable electrical grounding path through the conduit system
• Professional Grade Quality - Manufactured to exceed industry standards for commercial and industrial applications

Technical Specifications

This 2-inch trade size LB condulet features malleable iron construction with overall dimensions of 10.5" length, 4.42" height, and 3.12" width, weighing 5.34 pounds for substantial durability. The Form 5 design is rated for ordinary/non-hazardous locations and complies with NEC/CEC standards. The LB shape provides a 90-degree turn with optimal wire pulling access, while the built-in rollers facilitate smooth conductor installation in 2-inch rigid conduit and IMC systems.

Installation Process

1. Thread the condulet body onto the conduit system using appropriate pipe dope or thread sealant
2. Ensure proper alignment of the LB opening for optimal wire pulling access
3. Secure the assembly with appropriate conduit supports within NEC/CEC spacing requirements
4. Remove the cover and utilize the built-in rollers to guide conductors through the 90-degree turn
5. Pull conductors smoothly, allowing the rollers to protect insulation during the pulling process
6. Complete connections and reinstall the cover with proper gasket sealing

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, hospitals, and educational facilities
• Industrial Facilities - Manufacturing plants, processing facilities, and heavy industrial installations
• Municipal Infrastructure - Government buildings, schools, and public utility installations
• Equipment Connections - Motor control centers, switchgear, and electrical distribution panels
• Outdoor Installations - Weather-exposed conduit runs requiring durable outlet body access
• Maintenance Access Points - Long conduit runs requiring intermediate pulling and splicing access
• Direction Changes - 90-degree turns in rigid conduit and IMC systems
• Heavy-Duty Applications - High-vibration environments and mechanically demanding installations

Condulet Outlet Body System Benefits

Condulet outlet bodies provide superior access and flexibility compared to standard conduit elbows, allowing for wire pulling, splicing, and system modifications without disrupting the entire conduit run. The removable cover design enables future circuit additions or maintenance while maintaining system integrity and code compliance.

Why Choose Malleable Iron with Built-in Rollers?

Malleable iron construction delivers exceptional strength and longevity that surpasses steel alternatives, while the integrated wire pulling rollers represent a significant advancement in installation efficiency. This combination reduces labor costs, protects valuable conductors, and ensures decades of reliable service in the most demanding electrical environments. Trusted by electrical professionals for over 100 years, Eaton Crouse-Hinds continues to innovate with practical solutions that enhance both installation efficiency and long-term performance.
