Eaton Crouse-Hinds 3" LB Condulet Form 5 Outlet Body, Malleable Iron with Built-in Rollers

Eaton Crouse-Hinds 3" LB Condulet Form 5 Outlet Body

Heavy-Duty Malleable Iron Construction with Built-in Wire Pulling Rollers

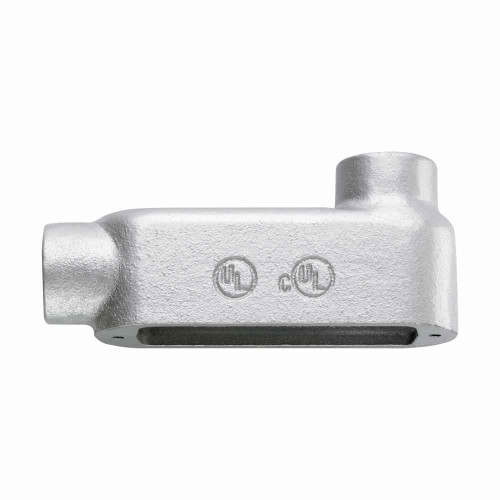

The Eaton Crouse-Hinds 3" LB Condulet Form 5 Outlet Body is a premium-grade conduit fitting engineered for demanding commercial and industrial electrical installations. This malleable iron outlet body delivers superior strength and durability with integrated wire pulling rollers that significantly reduce installation time and effort for electrical contractors working with large conductor runs.

Key Features & Benefits

Superior Material Construction

• Malleable Iron Body - Provides exceptional strength that exceeds steel construction, ensuring decades of reliable service in heavy-duty applications
• Corrosion Resistant Finish - Factory-applied protective coating withstands harsh environmental conditions and extends service life
• Precision Manufacturing - Dimensional accuracy ensures proper fit with rigid and IMC conduit systems
• Professional-Grade Threading - Machine-cut threads provide secure, long-lasting connections that maintain system integrity

Installation Efficiency Features

• Built-in Wire Pulling Rollers - Integrated rollers eliminate wire damage during pulling operations and reduce installation labor by up to 40%
• Large Wire Capacity - Generous internal volume accommodates multiple large conductors with proper fill ratios
• Removable Cover - Easy access for wire pulling, splicing, and future system modifications
• LB Configuration - Right-angle design provides 90-degree conduit routing with optimal wire bending radius

Code Compliance & Safety

• NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements for conduit outlet bodies
• Ordinary Location Rated - Approved for standard commercial and industrial electrical environments
• Grounding Continuity - Maintains electrical grounding path through the conduit system for enhanced safety

Technical Specifications

This 3-inch trade size LB condulet features malleable iron construction with overall dimensions of 13.87" length, 5.9" height, and 4.31" width, weighing 11.6 pounds for substantial durability. The Form 5 design incorporates built-in wire pulling rollers that protect conductors during installation while the LB shape provides 90-degree conduit routing. Compatible with 3-inch rigid and IMC conduit systems, this outlet body maintains NEC/CEC compliance for ordinary location installations and provides the large internal volume required for multiple large conductor applications.

Installation Process

1. Verify conduit alignment and ensure proper support within 3 feet of the outlet body per NEC requirements
2. Apply approved pipe thread compound to conduit threads and thread into outlet body hubs hand-tight plus 1-2 additional turns
3. Remove the cover by loosening the cover screws and lifting away from the body
4. Install fish tape or pulling system, utilizing the built-in rollers to guide conductors smoothly through the 90-degree bend
5. Pull conductors through the system, allowing rollers to prevent wire jacket damage and reduce pulling tension
6. Make necessary splices or connections within the outlet body, maintaining proper wire fill ratios
7. Reinstall cover with gasket properly seated to maintain environmental protection
8. Verify all connections are secure and grounding continuity is maintained throughout the system

Applications

Perfect for:

• Industrial Manufacturing Facilities - Motor control centers, machinery connections, and heavy equipment power distribution
• Commercial Buildings - Office complexes, retail centers, hospitals, and educational facilities requiring robust electrical infrastructure
• Municipal Infrastructure - Government buildings, water treatment plants, and public utility installations
• Data Centers - High-capacity power distribution systems and equipment room electrical feeds
• Manufacturing Plants - Process equipment connections, conveyor systems, and production line power distribution
• Warehouse Facilities - Material handling equipment, lighting circuits, and HVAC system connections
• Outdoor Installations - Equipment yards, substations, and exterior building electrical systems
• Heavy-Duty Conduit Runs - Large conductor installations requiring multiple wire changes and junction points

Condulet Outlet Body System Benefits

Condulet outlet bodies provide superior versatility compared to standard conduit fittings by offering accessible junction points for wire pulling, splicing, and system modifications. The removable cover design allows for easy maintenance and future circuit additions without disrupting the entire conduit run. This accessibility reduces long-term maintenance costs and provides flexibility for evolving electrical system requirements in commercial and industrial facilities.

Why Choose Built-in Wire Pulling Rollers?

The integrated roller system in this Form 5 condulet dramatically reduces wire pulling effort while protecting valuable conductors from damage during installation. This feature is particularly beneficial when working with expensive large gauge conductors or sensitive control cables where jacket damage could compromise system performance. Professional electrical contractors rely on these roller-equipped outlet bodies to improve installation efficiency, reduce labor costs, and ensure reliable long-term system operation in demanding commercial and industrial applications.
