Eaton Crouse-Hinds 1" LL Form 5 Condulet Outlet Body, Malleable Iron

Eaton Crouse-Hinds 1" LL Form 5 Condulet Outlet Body, Malleable Iron

Professional-Grade Conduit Routing Solution for Complex Electrical Installations

The Eaton Crouse-Hinds 1" LL Form 5 Condulet Outlet Body is a premium conduit routing solution engineered for professional electrical installations requiring precise directional changes. This malleable iron condulet delivers superior strength and durability for commercial and industrial electrical systems where reliable conduit connections are critical.

Key Features & Benefits

Superior Material Construction

• Malleable Iron Construction - Provides exceptional strength that exceeds steel alternatives, ensuring long-term reliability in demanding applications
• Corrosion Resistant Finish - Factory applied coating protects against environmental factors and extends service life
• Precision Cast Design - Ensures consistent dimensions and smooth interior surfaces for optimal wire pulling
• Professional Grade Quality - Engineered to meet the demanding requirements of commercial and industrial installations

Installation Efficiency

• LL Shape Configuration - Enables 90-degree directional changes with straight-through access for wire pulling and splicing
• Removable Cover Design - Provides convenient access for wire installation, maintenance, and future modifications
• Standard Threading - Compatible with rigid conduit, IMC, and threaded fittings for versatile system integration
• Compact Profile - Space-efficient design minimizes installation footprint while maximizing functionality

Code Compliance & Safety

• NEC/CEC Compliant - Meets National Electrical Code and Canadian Electrical Code requirements for conduit systems
• Grounding Continuity - Maintains electrical grounding path through the conduit system for enhanced safety
• Form 5 Classification - Designed for ordinary locations with standard environmental protection
• Professional Installation Standards - Engineered to support proper conduit system design and installation practices

Technical Specifications

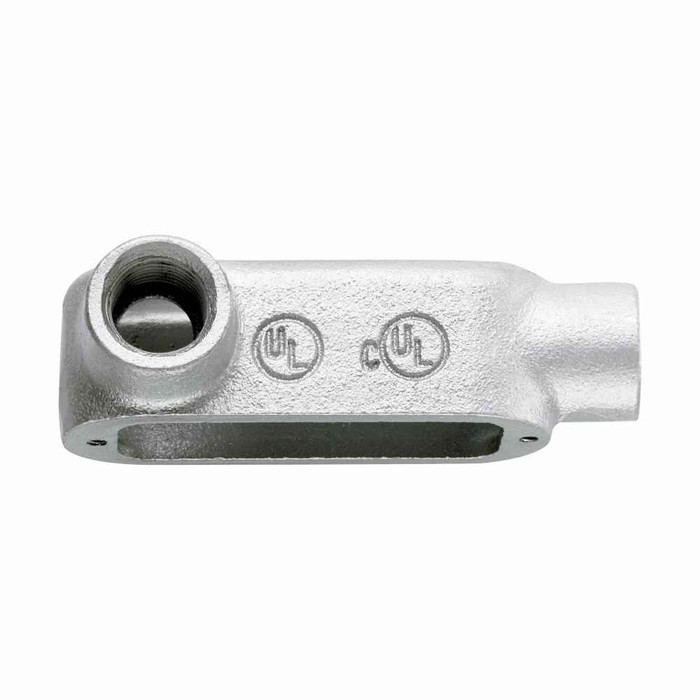

This 1-inch trade size LL condulet features malleable iron construction with overall dimensions of 6.2" length, 2.65" height, and 1.9" width, weighing 1.38 pounds for substantial durability. The LL shape configuration provides two openings positioned at 90 degrees to each other, enabling efficient conduit routing in confined spaces. Compatible with 1-inch rigid conduit, IMC, and threaded conduit systems, this Form 5 condulet is rated for ordinary/non-hazardous locations and complies with NEC/CEC standards for professional electrical installations.

Installation Process

1. Plan conduit route and verify proper support spacing per NEC/CEC requirements
2. Thread rigid conduit or IMC into condulet openings using appropriate thread compound
3. Ensure all connections are tight and maintain proper grounding continuity
4. Remove cover plate and install conductors through the conduit system
5. Make necessary wire connections or splices within the condulet body
6. Replace cover plate with gasket to maintain environmental protection
7. Verify all connections are secure and properly supported

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail facilities, hospitals, and educational institutions
• Industrial Facilities - Manufacturing plants, processing facilities, and heavy industrial applications
• Equipment Connections - Motor control centers, switchgear, and electrical distribution panels
• Conduit Direction Changes - 90-degree turns in rigid conduit and IMC systems
• Junction Points - Wire splicing and connection points in conduit runs
• Maintenance Access - Locations requiring future access for wire modifications or additions
• Space-Constrained Installations - Areas where compact conduit routing solutions are essential
• Municipal Infrastructure - Government buildings, schools, and public facility electrical systems

Condulet System Benefits

Condulet outlet bodies provide superior flexibility compared to standard conduit elbows by offering removable access for wire installation and maintenance. The LL configuration enables efficient 90-degree directional changes while maintaining straight-through wire pulling capabilities, reducing installation time and improving system serviceability. This design eliminates the need for multiple fittings and reduces potential failure points in the conduit system.

Why Choose Malleable Iron Construction?

Malleable iron construction delivers exceptional strength that exceeds standard steel alternatives, providing superior impact resistance and long-term durability in demanding electrical environments. This premium material choice ensures reliable performance for decades of service, making it the preferred solution for electrical contractors who demand professional-grade quality and dependable results in critical electrical installations.
