Eaton Crouse-Hinds 3/4" LL Form 5 Condulet Outlet Body, Malleable Iron

Eaton Crouse-Hinds 3/4" LL Form 5 Condulet Outlet Body, Malleable Iron

Professional-Grade Conduit Routing Solution for Complex Electrical Installations

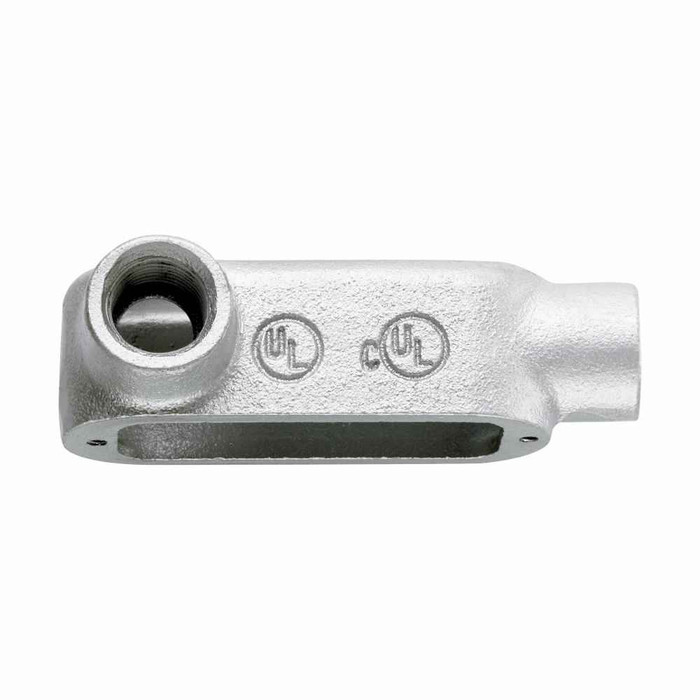

The Eaton Crouse-Hinds 3/4" LL Form 5 Condulet Outlet Body is a premium malleable iron conduit fitting engineered for professional electrical installations requiring precise conduit routing and wire pulling access. This heavy-duty LL-shaped condulet delivers superior strength and durability for commercial and industrial electrical systems where reliable conduit connections are critical.

Key Features & Benefits

Superior Material Construction

• Malleable Iron Body - Stronger than steel construction provides exceptional impact resistance and long-term durability
• Precision Cast Design - Smooth interior surfaces facilitate easy wire pulling and reduce conductor damage
• Corrosion Resistant Finish - Factory applied coating ensures decades of reliable service in demanding environments
• Professional Grade Threading - Precision machined threads ensure secure, leak-resistant connections with rigid and IMC conduit

Installation Efficiency

• LL Shape Configuration - Provides 90-degree conduit routing with convenient wire access for complex installations
• Removable Cover - Easy access for wire pulling, splicing, and system maintenance without conduit disconnection
• Standard 3/4" Trade Size - Compatible with all standard 3/4" rigid and IMC conduit systems
• NEC/CEC Compliant - Meets all electrical code requirements for conduit outlet body installations

System Reliability

• Form 5 Design - Engineered for ordinary locations with proven performance in commercial applications
• Secure Wire Management - Internal design prevents wire damage during installation and service
• Weather Resistant - Suitable for both indoor and outdoor electrical installations

Technical Specifications

This condulet features a 3/4" trade size with LL shape configuration, measuring 5.37" in length, 2.25" in height, and 1.7" in width. The malleable iron construction weighs 0.95 pounds, providing substantial durability while remaining manageable for installation. The Form 5 design is rated for ordinary/non-hazardous locations and complies with NEC/CEC standards for conduit outlet body applications. The precision-cast body ensures smooth wire pulling and secure conduit connections.

Installation Process

1. Select appropriate location ensuring adequate clearance for cover removal and wire access
2. Thread condulet body onto existing conduit run, ensuring full thread engagement
3. Install connecting conduit section to complete the LL-shaped routing configuration
4. Pull conductors through the system, utilizing the condulet's smooth interior design
5. Secure cover with appropriate gasket if required for environmental protection
6. Verify all connections are tight and properly grounded per electrical code requirements

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, and institutional facilities
• Industrial Installations - Manufacturing plants, processing facilities, and heavy equipment connections
• Equipment Connections - Motor control centers, switchgear, and electrical panel feeds
• Conduit Direction Changes - 90-degree routing around structural obstacles and equipment
• Wire Pulling Access Points - Long conduit runs requiring intermediate access for conductor installation
• System Maintenance Points - Locations where future wire changes or additions are anticipated
• Outdoor Electrical Systems - Weather-exposed installations requiring durable conduit fittings
• Municipal Infrastructure - Schools, government buildings, and public facility electrical systems

Condulet System Benefits

Condulet outlet bodies provide superior wire access compared to standard conduit elbows, making them essential for professional electrical installations. The removable cover design allows for easy conductor pulling, splicing access, and system modifications without disrupting the entire conduit run. This accessibility significantly reduces installation time and maintenance costs while ensuring code compliance for conduit fill requirements.

Why Choose Malleable Iron Construction?

Malleable iron offers exceptional strength advantages over standard steel fittings, providing superior impact resistance and dimensional stability under mechanical stress. This premium material choice ensures the condulet maintains its structural integrity and threading precision throughout decades of service, making it the preferred choice of electrical contractors for critical commercial and industrial applications where reliability cannot be compromised.
