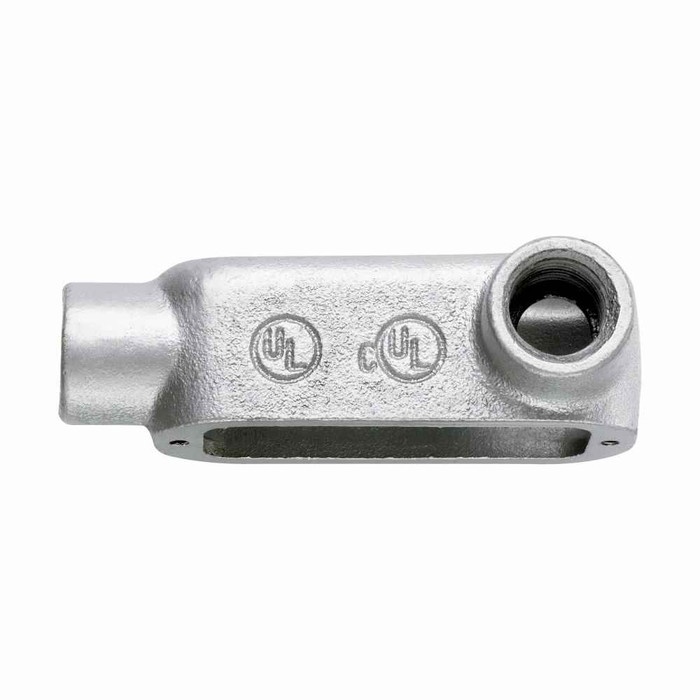

Eaton Crouse-Hinds 3/4" LR Condulet Form 5 Outlet Body, Malleable Iron

Eaton Crouse-Hinds 3/4" LR Condulet Form 5 Outlet Body, Malleable Iron

Professional-Grade Conduit Routing Solution for Commercial & Industrial Applications

The Eaton Crouse-Hinds 3/4" LR Condulet Form 5 Outlet Body is a premium malleable iron conduit fitting engineered for reliable conduit system routing and wire pulling access. This heavy-duty LR-shaped outlet body delivers superior strength and durability for commercial and industrial electrical installations where conduit direction changes are required.

Key Features & Benefits

Superior Material Construction

• Malleable Iron Construction - Stronger than steel with exceptional impact resistance and dimensional stability
• Corrosion-Resistant Finish - Factory-applied coating protects against environmental degradation
• Precision Threading - Machine-cut threads ensure secure, leak-resistant connections
• Heavy-Duty Design - Engineered for decades of reliable service in demanding environments

Installation & Access Benefits

• Wire Pulling Access - Removable cover provides convenient access for wire installation and maintenance
• LR Configuration - Left-right orientation enables efficient conduit routing around obstacles
• Secure Cover Design - Threaded cover ensures environmental protection and system integrity
• Professional Installation - Standard 3/4" trade size fits seamlessly into existing conduit systems

Code Compliance & Safety

• NEC/CEC Compliant - Meets National Electrical Code and Canadian Electrical Code requirements
• Ordinary Location Rated - Approved for standard commercial and industrial environments
• Grounding Continuity - Maintains electrical grounding path throughout conduit system
• Professional Standards - Manufactured to exceed industry performance requirements

Technical Specifications

This Form 5 Condulet features 3/4" trade size threading compatible with rigid conduit, IMC, and EMT systems. The LR shape configuration measures 5.37" in length, 2.25" in height, and 1.7" in width, with a total weight of 1 pound. The malleable iron construction provides superior strength compared to steel alternatives, while the threaded cover design ensures secure access for wire pulling and system maintenance. Suitable for ordinary/non-hazardous locations per NEC/CEC standards.

Installation Process

1. Verify conduit alignment and measure required routing path for proper LR orientation
2. Apply approved thread compound to conduit threads for weather-resistant seal
3. Thread conduit into outlet body hubs, ensuring full engagement and proper alignment
4. Install conduit support within required distances per NEC/CEC specifications
5. Remove threaded cover and pull wires through conduit system using outlet body access
6. Replace and tighten cover securely to maintain environmental protection

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, hospitals, and educational facilities
• Industrial Facilities - Manufacturing plants, processing facilities, and heavy equipment installations
• Equipment Connections - Motor control centers, switchgear, and electrical panel connections
• Conduit Direction Changes - Routing around structural obstacles, beams, and building elements
• Wire Pulling Access Points - Strategic locations for cable installation and future maintenance
• Municipal Infrastructure - Schools, government buildings, and public facility electrical systems
• Maintenance Access - Long conduit runs requiring intermediate wire pulling points
• System Expansion - Future-proofing electrical installations for additional circuits

Condulet System Benefits

Condulet outlet bodies provide superior functionality compared to standard conduit fittings by offering removable access covers for wire pulling and maintenance. The Form 5 design ensures maximum internal space for wire management while maintaining compact external dimensions. This LR configuration specifically addresses left-right routing challenges common in commercial and industrial installations where conduit must navigate around structural elements or equipment.

Why Choose Malleable Iron Construction?

Malleable iron offers significant advantages over standard steel construction, providing superior impact resistance, dimensional stability, and long-term durability. This material choice ensures the outlet body maintains structural integrity under mechanical stress while resisting deformation from temperature cycling. The precision casting process delivers consistent threading and smooth internal surfaces that facilitate wire pulling and reduce installation time for electrical contractors.
