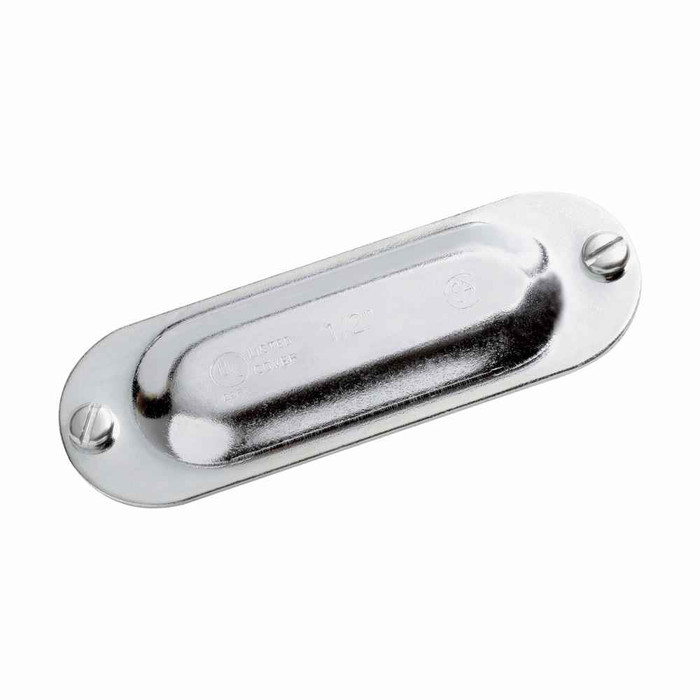

Eaton Crouse-Hinds 1/2" Condulet Form 5 Cover, Sheet Steel
Professional-Grade Condulet Cover for Secure Electrical Connections
The Eaton Crouse-Hinds 1/2" Condulet Form 5 Cover is a professional-grade electrical component engineered for secure conduit system installations. This sheet steel cover delivers reliable protection and easy access for 1/2" condulet bodies in commercial and industrial electrical applications.
Key Features & Benefits
Durable Construction
- Sheet Steel Material - Provides excellent strength and impact resistance for long-term durability
- Precision Manufacturing - Ensures proper fit and seal with condulet bodies for reliable performance
- Corrosion Resistant Finish - Protects against environmental factors in demanding installations
- Professional Grade Quality - Built to Eaton Crouse-Hinds standards for decades of reliable service
Installation Efficiency
- Form 5 Design - Standard configuration for easy identification and installation
- Secure Fastening - Reliable attachment system ensures covers stay in place
- Easy Access - Removable design allows for convenient wire pulling and maintenance
- Compact Profile - Low-profile design minimizes space requirements in tight installations
System Compatibility
- 1/2" Trade Size - Compatible with standard 1/2" condulet bodies and conduit systems
- Universal Fit - Works with Eaton Crouse-Hinds condulet body assemblies
- Code Compliant - Meets electrical code requirements for condulet installations
Technical Specifications
This Form 5 cover is designed for 1/2" trade size condulet bodies and features sheet steel construction for optimal strength-to-weight ratio. The cover measures 3.875 inches in length, 1.313 inches in width, and 0.25 inches in height, with a lightweight 0.09 lb design that doesn't add unnecessary bulk to installations. The precision-manufactured design ensures proper sealing and protection for electrical connections within condulet bodies.
Installation Process
- Verify condulet body is properly installed and secured to conduit system
- Ensure all electrical connections are complete and properly terminated
- Clean the condulet body sealing surface to remove any debris or contamination
- Position the Form 5 cover over the condulet body opening
- Secure the cover using appropriate fasteners, ensuring even pressure distribution
- Verify cover is properly seated and sealed against environmental intrusion
Applications
Perfect for:
- Commercial Buildings - Office complexes, retail spaces, and healthcare facilities
- Industrial Facilities - Manufacturing plants, processing facilities, and warehouses
- Institutional Projects - Schools, government buildings, and municipal facilities
- Conduit Junction Points - Where conduit runs change direction or branch
- Wire Pulling Access - Locations requiring periodic access for maintenance
- Equipment Connections - Motor control centers and electrical panel connections
- Outdoor Installations - Weather-exposed condulet assemblies requiring protection
- Maintenance Access Points - Strategic locations for system troubleshooting and repairs
Condulet System Benefits
Condulet covers are essential components that provide secure protection for electrical connections while maintaining easy access for maintenance and modifications. Unlike permanent junction methods, condulet systems with proper covers allow electrical contractors to make changes and additions without extensive conduit modifications, reducing labor costs and system downtime.
Why Choose Sheet Steel Construction?
Sheet steel offers the ideal balance of strength, durability, and cost-effectiveness for condulet covers. This material provides excellent impact resistance and dimensional stability while maintaining the lightweight characteristics needed for easy installation and handling. Eaton Crouse-Hinds sheet steel covers are engineered with proper thickness to ensure long-term performance without unnecessary weight or bulk in electrical installations.
Manufacturer Resources
Product Specs
- Product Height:
- .25 in
- Product Length Depth:
- 3.875 in
- Product Weight:
- .09 lb
- Product Width:
- 1.313 in
- Product Type:
- Form 5 Cover
- Product Group:
- Electrical Covers
- Department:
- Electrical
- Product Subgroup:
- Form 5 Cover
