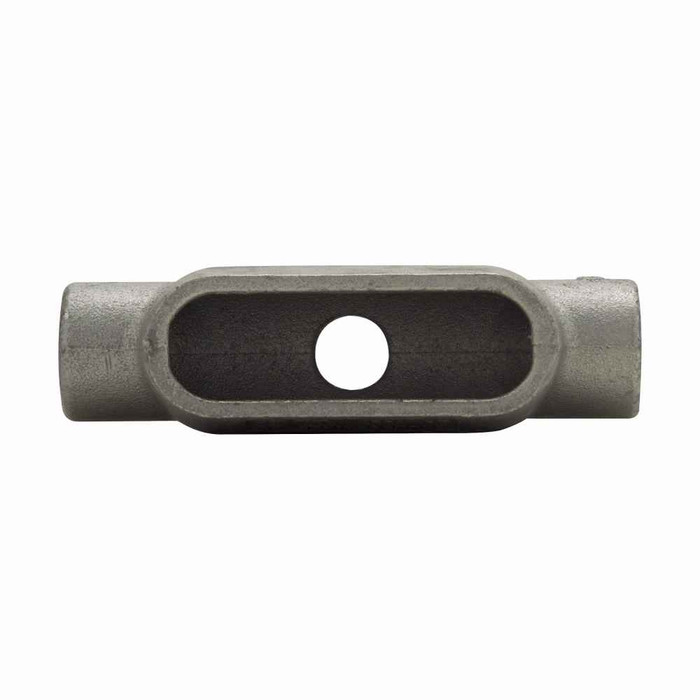

Eaton Crouse-Hinds 3/4" TB Condulet Form 7 Outlet Body, Feraloy Iron Alloy
Professional-Grade Conduit Outlet Body for Superior Electrical System Performance
The Eaton Crouse-Hinds 3/4" TB Condulet Form 7 Outlet Body is a premium conduit outlet body engineered for demanding commercial and industrial electrical installations. This Feraloy iron alloy TB-shaped outlet body delivers exceptional strength and durability for professional electrical contractors requiring reliable conduit system connections.
Key Features & Benefits
Superior Material Construction
- Feraloy Iron Alloy Construction - Advanced metallurgy provides superior strength and corrosion resistance compared to standard materials
- Form 7 Design - Engineered for maximum durability in demanding electrical environments
- NEMA 12 Rating - Provides protection against dust, falling dirt, and dripping non-corrosive liquids
- Precision Manufacturing - Consistent dimensional accuracy ensures reliable conduit connections
Professional Installation Advantages
- TB Shape Configuration - Optimized design for specific conduit routing requirements
- 3/4" Trade Size - Perfect for standard commercial and industrial conduit systems
- NEC/CEC Compliant - Meets all applicable electrical code requirements
- Compact Dimensions - 6.25" length x 2.88" height x 1.75" width for efficient space utilization
Long-Term Reliability
- Ordinary/Non-Hazardous Location Rated - Suitable for standard commercial and industrial environments
- Robust 1.65 lb Construction - Substantial build quality ensures decades of reliable service
- Crouse-Hinds Heritage - Backed by over 100 years of electrical innovation and contractor trust
Technical Specifications
This condulet features 3/4" trade size compatibility with Feraloy iron alloy construction in a TB shape configuration. The outlet body measures 6.25" in length, 2.88" in height, and 1.75" in width, with a substantial 1.65 lb weight indicating robust construction. NEMA 12 rating provides protection against dust and dripping liquids, while NEC/CEC compliance ensures code-compliant installations in ordinary/non-hazardous locations.
Installation Process
- Verify conduit system layout and ensure proper support spacing per NEC/CEC requirements
- Thread conduit connections hand-tight, then wrench-tighten an additional 1-2 turns
- Install conductors through the outlet body, maintaining proper fill ratios
- Secure cover plate with appropriate gasket for environmental protection
- Verify all connections are tight and properly grounded per electrical code
- Test system continuity and insulation resistance before energizing
Applications
Perfect for:
- Commercial Buildings - Office complexes, retail centers, and healthcare facilities
- Industrial Facilities - Manufacturing plants, processing facilities, and warehouses
- Institutional Projects - Schools, government buildings, and municipal infrastructure
- Equipment Connections - Motor control centers, switchgear, and distribution panels
- Conduit System Extensions - Branch circuits and feeder routing applications
- Maintenance Access Points - Strategic locations requiring future conductor access
- Direction Changes - Complex conduit routing in confined spaces
- Junction Points - Multiple conduit runs requiring reliable connections
Condulet System Benefits
Condulet outlet bodies provide superior access for conductor installation and maintenance compared to standard conduit fittings. The removable cover design allows for easy conductor pulling, splicing access, and system modifications without disturbing the entire conduit run. This TB configuration offers specific geometric advantages for complex routing situations where standard fittings cannot accommodate the required conduit angles.
Why Choose Feraloy Iron Alloy?
Feraloy iron alloy represents advanced metallurgical engineering that delivers superior performance compared to standard materials. This proprietary alloy provides enhanced corrosion resistance, superior mechanical strength, and improved dimensional stability under thermal cycling. The result is a condulet that maintains reliable performance throughout decades of service, reducing maintenance costs and ensuring long-term electrical system integrity.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Material:
- Feraloy iron alloy
- Nema Rating:
- 12
- Product Height:
- 2.88 in
- Product Length Depth:
- 6.25 in
- Product Weight:
- 1.65 lb
- Product Width:
- 1.75 in
- Shape:
- TB
- Standards Type:
- NEC/CEC
- Trade Size:
- 3/4"
- Product Type:
- Conduit Outlet Body
- Product Group:
- Electrical Fitting
- Department:
- Electrical
- Product Subgroup:
- Conduit Outlet Body
