Eaton Crouse-Hinds 4" Grounding Bushing, Malleable Iron, Set Screw, Rigid/IMC

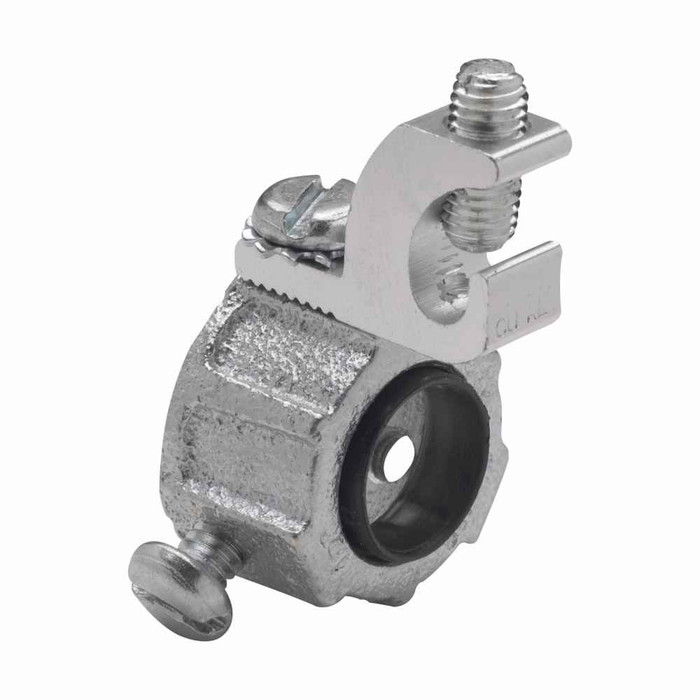

Eaton Crouse-Hinds 4" HGLS Grounding Bushing

Professional-Grade Malleable Iron Construction for Superior Grounding Performance

The Eaton Crouse-Hinds 4" HGLS Grounding Bushing is a premium threadless grounding solution engineered for rigid and IMC conduit systems. This malleable iron grounding bushing delivers superior mechanical strength and reliable electrical continuity for commercial and industrial electrical installations requiring robust grounding performance.

Key Features & Benefits

Superior Construction & Durability

• Malleable Iron Body - Provides exceptional strength and impact resistance, significantly stronger than standard steel alternatives
• Set Screw Design - Ensures secure mechanical connection to conduit without threading requirements
• Threadless Installation - Eliminates threading needs while maintaining reliable conduit connection
• 150°C Temperature Rating - Handles high-temperature applications in demanding electrical environments

Electrical Performance

• Aluminum Grounding Lug - Accommodates #3/0-6 AWG grounding conductors with excellent conductivity
• Reliable Grounding Path - Ensures continuous electrical grounding from conduit system to equipment
• NEC/CEC Compliant - Meets all applicable electrical code requirements for grounding applications
• Professional-Grade Performance - Engineered for decades of reliable service in critical electrical systems

Installation Efficiency

• 4" Trade Size - Perfect fit for large conduit runs in commercial and industrial applications
• Threadless Design - Reduces installation time while ensuring secure conduit connection
• Set Screw Attachment - Simple, reliable connection method preferred by electrical contractors
• Versatile Compatibility - Works with both rigid steel and IMC conduit systems

Technical Specifications

This 4" trade size grounding bushing features malleable iron construction with a threadless design for rigid and IMC conduit applications. The integrated aluminum grounding lug accommodates #3/0 through 6 AWG grounding conductors, while the set screw connection method ensures reliable mechanical attachment. With a 150°C temperature rating and NEC/CEC compliance, this bushing measures 5.06" in length and depth with a 1.13" height, weighing 0.9 pounds for substantial durability in demanding electrical environments.

Installation Process

1. Verify conduit end is cut square and deburred for proper bushing fit
2. Slide the grounding bushing over the conduit end until fully seated
3. Tighten the set screw securely against the conduit to establish mechanical connection
4. Strip grounding conductor to appropriate length per manufacturer specifications
5. Insert grounding conductor into aluminum lug and tighten connection screw
6. Verify secure mechanical and electrical connections before energizing system

Applications

Perfect for:

• Commercial Electrical Systems - Office buildings, retail centers, hospitals, and educational facilities
• Industrial Installations - Manufacturing plants, processing facilities, and heavy industrial applications
• Equipment Grounding - Motor control centers, switchgear, and electrical distribution panels
• Service Entrance Applications - Main electrical service connections requiring reliable grounding
• Municipal Infrastructure - Government buildings, schools, and public facility electrical systems
• High-Temperature Environments - Applications up to 150°C where standard bushings may fail
• Large Conduit Runs - 4" rigid and IMC conduit systems in commercial and industrial settings
• Code-Critical Installations - Projects requiring strict NEC/CEC compliance for grounding systems

Grounding Bushing System Benefits

Grounding bushings provide essential electrical safety by ensuring continuous grounding paths in conduit systems. Unlike standard bushings that only provide mechanical protection, grounding bushings like the HGLS series create reliable electrical connections between the conduit system and equipment grounding conductors. This dual function eliminates the need for separate grounding components while ensuring code compliance and electrical safety in commercial and industrial installations.

Why Choose Malleable Iron Construction?

Malleable iron offers superior mechanical properties compared to standard steel or aluminum alternatives, providing exceptional impact resistance and long-term durability. The threadless design with set screw connection eliminates potential threading failures while maintaining secure conduit attachment. Combined with Eaton Crouse-Hinds' century of electrical innovation, this grounding bushing delivers the reliability and performance that electrical professionals demand for critical grounding applications in commercial and industrial electrical systems.
