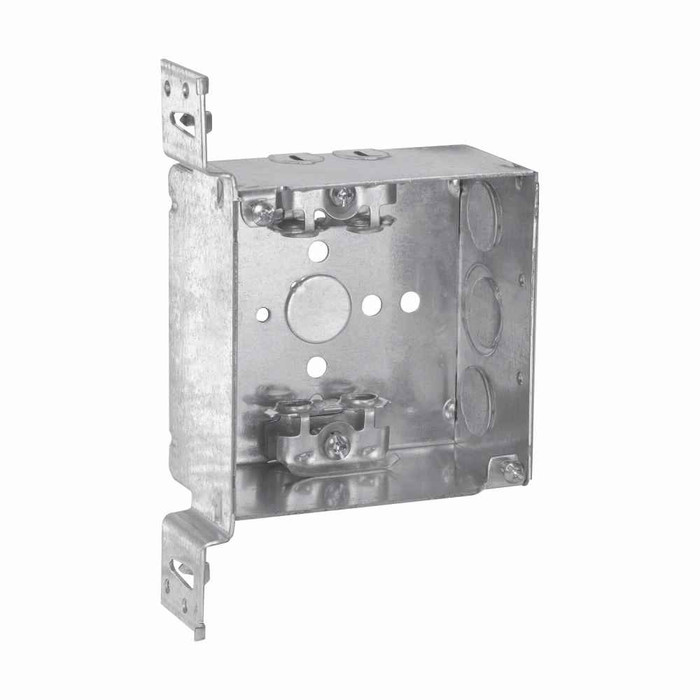

Eaton Crouse-Hinds 4" Square Outlet Box, VMS, Welded Steel, 2-1/8" Deep, 30.3 Cu In, with 4 AC/MC Clamps

Eaton Crouse-Hinds 4" Square Steel Outlet Box with AC/MC Clamps

Professional-Grade Steel Construction with Integrated Cable Management

The Eaton Crouse-Hinds 4" Square Steel Outlet Box is a professional-grade electrical enclosure engineered for commercial and industrial wiring applications. This welded steel outlet box delivers superior strength and durability with integrated AC/MC cable clamps for streamlined installations in ordinary locations.

Key Features & Benefits

Superior Construction & Durability

• Welded Steel Construction - Provides exceptional strength and long-term reliability in demanding electrical environments
• 30.3 Cubic Inch Capacity - Generous interior space accommodates multiple conductors and connections per NEC fill requirements
• 2-1/8" Depth - Optimal depth for standard wall construction while providing adequate wire management space
• Professional-Grade Materials - Steel construction ensures dimensional stability and resistance to impact damage

Integrated Cable Management System

• Built-in AC/MC Cable Clamps - Four integrated clamps secure armored cable and metal-clad cable without additional hardware
• Multiple Conduit Entries - Pre-configured with 1/2" and 3/4" knockouts for flexible conduit routing options
• Versatile Entry Configuration - Two 1/2" entries plus one 3/4" entry accommodate mixed conduit sizes in single installation
• Secure Cable Retention - Eliminates need for separate cable connectors on AC/MC cable runs

Installation Efficiency

• Standard 4" Square Footprint - Compatible with all standard 4" square covers and device configurations
• Pre-Punched Mounting Holes - Facilitates quick and secure mounting to wall studs or structural members
• NEC/CEC Compliant Design - Meets all code requirements for outlet box installations in ordinary locations

Technical Specifications

This outlet box features a standard 4" x 4" footprint with 2-1/8" depth, providing 30.3 cubic inches of interior capacity for conductor and splice accommodation. The welded steel construction ensures superior strength compared to drawn boxes, while the integrated AC/MC cable clamps eliminate the need for separate cable connectors. Multiple conduit entries include two 1/2" knockouts and one 3/4" knockout for flexible installation options. The box is designed for ordinary/non-hazardous locations and complies with NEC/CEC standards for outlet box installations.

Installation Process

1. Select appropriate mounting location ensuring adequate clearance for cover installation and conductor access
2. Secure box to structural member using appropriate fasteners through pre-punched mounting holes
3. Remove required knockouts for conduit entries using standard knockout tools
4. Install conduit connections at knockout locations using appropriate connectors for conduit type
5. Route AC/MC cables through integrated clamps, ensuring proper cable support and strain relief
6. Complete conductor connections and install appropriate 4" square cover or device configuration

Applications

Perfect for:

• Commercial Office Buildings - Outlet and switch installations in standard wall construction
• Industrial Facilities - Control device mounting and junction applications in manufacturing environments
• Retail Installations - Point-of-sale power outlets and lighting control applications
• Educational Facilities - Classroom and laboratory electrical device installations
• Healthcare Facilities - Patient room and common area electrical outlet installations
• Mixed Cable Systems - Applications requiring both rigid conduit and AC/MC cable connections
• Renovation Projects - Upgrade installations where integrated cable clamps simplify retrofit work
• Multi-Gang Configurations - Foundation for multiple device installations using appropriate covers

Square Outlet Box System Benefits

Square outlet boxes provide superior capacity and flexibility compared to standard rectangular boxes, making them ideal for applications requiring multiple conductors or complex wiring configurations. The 4" square format accommodates single devices, multiple devices, or serves as junction points for conductor splicing. The generous 30.3 cubic inch capacity ensures compliance with NEC fill requirements even in high-conductor-count applications, while the multiple knockout options provide maximum flexibility for conduit routing in complex electrical systems.

Why Choose Integrated AC/MC Cable Clamps?

The integrated AC/MC cable clamp system eliminates the need for separate cable connectors, reducing material costs and installation time while ensuring secure cable retention. This design is particularly valuable in mixed wiring systems where both rigid conduit and flexible cable methods are used, providing contractors with a single box solution that accommodates multiple wiring methods. The welded steel construction provides the strength and durability demanded by electrical professionals, backed by Eaton Crouse-Hinds' century of electrical innovation and quality.
