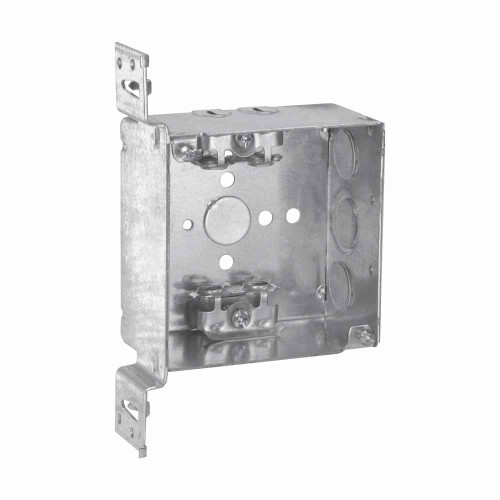

Eaton Crouse-Hinds 4" Square Steel Outlet Box with AC/MC Clamps
Professional-Grade Steel Construction with Integrated Cable Management
The Eaton Crouse-Hinds 4" Square Steel Outlet Box is a professional-grade electrical enclosure engineered for commercial and industrial wiring applications. This welded steel outlet box delivers superior strength and durability with integrated AC/MC cable clamps for streamlined installations in ordinary locations.
Key Features & Benefits
Superior Steel Construction
- Welded Steel Design - Provides exceptional structural integrity and long-term reliability in demanding electrical environments
- 22 Cubic Inch Capacity - Generous interior volume accommodates multiple conductors and connections per NEC fill requirements
- 1-1/2" Depth - Optimal depth for standard wall installations while providing adequate wire management space
- Corrosion-Resistant Finish - Steel construction with protective coating ensures decades of reliable service
Integrated Cable Management
- Built-in AC/MC Clamps - Four integrated clamps secure armored cable and metal-clad cable without additional hardware
- Multiple Knockouts - Pre-punched 1/2" and 3/4" knockouts provide flexible conduit entry options
- Professional Installation - Eliminates need for separate cable connectors, reducing installation time and material costs
Code Compliance & Safety
- NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements for outlet boxes
- Ordinary Location Rated - Approved for standard commercial and industrial electrical installations
- Proper Grounding - Steel construction provides excellent grounding continuity throughout the electrical system
Technical Specifications
This 4-inch square outlet box features welded steel construction with 1-1/2 inch depth and 22.0 cubic inch internal capacity. The box includes four integrated AC/MC cable clamps and multiple knockout configurations including two 1/2-inch, one 1/2-inch, and one 3/4-inch end knockout. Weighing 0.89 pounds, this professional-grade enclosure measures 4 inches by 4 inches and complies with NEC/CEC standards for ordinary location installations.
Installation Process
- Select appropriate mounting location ensuring adequate clearance for box depth and cable routing
- Remove required knockouts using standard knockout punch or hammer and punch set
- Secure box to structural support using appropriate fasteners for mounting surface
- Insert AC or MC cables through knockouts and secure with integrated cable clamps
- Make electrical connections following NEC/CEC requirements and manufacturer specifications
- Install appropriate cover plate or device mounting hardware as required
Applications
Perfect for:
- Commercial Buildings - Office complexes, retail spaces, and professional facilities requiring reliable outlet boxes
- Industrial Facilities - Manufacturing plants, warehouses, and processing facilities with armored cable systems
- Institutional Projects - Schools, hospitals, and government buildings with stringent electrical requirements
- Equipment Connections - Motor control centers, electrical panels, and machinery connection points
- Branch Circuit Extensions - Adding outlets and junction points in existing electrical systems
- Renovation Projects - Upgrading electrical systems in commercial and industrial buildings
- Heavy-Duty Applications - Environments requiring superior mechanical protection and durability
- AC/MC Cable Systems - Installations utilizing armored cable or metal-clad cable wiring methods
Steel Outlet Box System Benefits
Steel outlet boxes provide superior mechanical strength compared to plastic alternatives, making them ideal for commercial and industrial applications where durability is critical. The welded construction eliminates weak points found in stamped boxes, while the steel material provides excellent grounding continuity and electromagnetic shielding. Integrated AC/MC clamps eliminate the need for separate cable connectors, reducing installation time and ensuring secure cable terminations that meet code requirements.
Why Choose Integrated AC/MC Clamps?
The integrated AC/MC cable clamps in this Eaton Crouse-Hinds outlet box provide significant installation advantages over traditional knockout-and-connector methods. These built-in clamps ensure proper cable support and strain relief while eliminating the need to stock separate cable connectors. The result is faster installations, reduced material costs, and consistent code-compliant cable terminations that electrical professionals can trust for long-term reliability.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Box Size:
- 4"
- Material:
- Steel
- Product Height:
- 1.5 in
- Product Length Depth:
- 4 in
- Product Weight:
- .89 lb
- Product Width:
- 4 in
- Standards Type:
- NEC/CEC
- Product Type:
- Outlet Boxes
- Product Group:
- Electrical Boxes
- Department:
- Electrical
- Product Subgroup:
- Outlet Boxes
