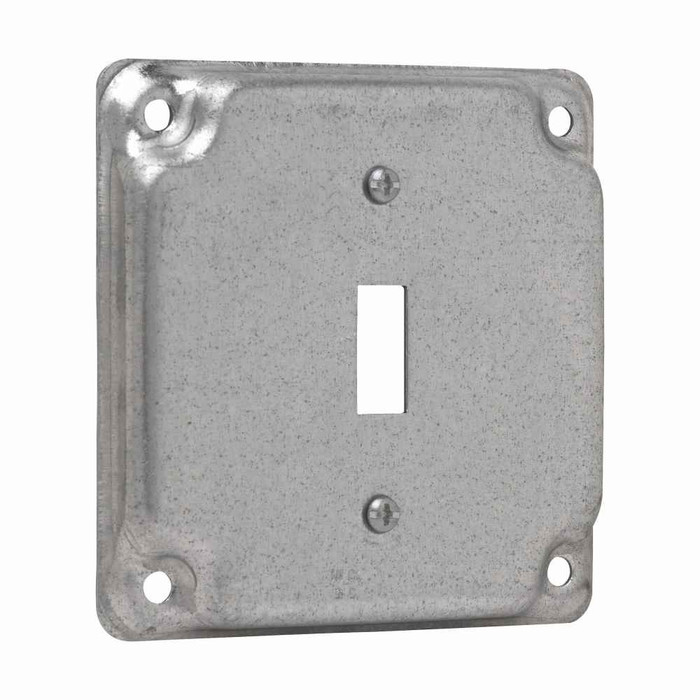

Eaton Crouse-Hinds 4" Square Surface Cover, Steel, Single Toggle Switch
Professional-Grade Steel Surface Cover for Reliable Switch Protection
The Eaton Crouse-Hinds 4" Square Surface Cover is a professional-grade steel surface cover engineered for single toggle switch applications in commercial and industrial electrical installations. This raised surface steel cover delivers superior protection and professional appearance with 5.5 cubic inch capacity for reliable electrical connections in ordinary locations.
Key Features & Benefits
Superior Steel Construction
- Heavy-duty steel material - Provides exceptional durability and impact resistance for long-term service life
- Raised surface design - Offers enhanced protection and professional finished appearance
- Precision manufacturing - Ensures proper fit and alignment with standard 4" square boxes
- Corrosion-resistant finish - Maintains appearance and performance in demanding environments
Electrical Performance
- 5.5 cubic inch capacity - Provides ample space for wire connections and switch mounting
- Single toggle switch configuration - Optimized opening size for standard toggle switches
- NEC/CEC compliant design - Meets electrical code requirements for ordinary locations
- Professional wire management - Adequate depth for proper conductor routing and termination
Installation Efficiency
- Standard 4" square compatibility - Works with all standard 4" square electrical boxes
- Precise switch opening - Eliminates field modifications and ensures clean installation
- Secure mounting system - Reliable attachment to box for permanent installation
- Contractor-friendly design - Reduces installation time with proper fit and finish
Technical Specifications
This surface cover features a 4" x 4" steel construction with raised surface profile and 0.5" depth. The cover provides 5.5 cubic inches of internal capacity and weighs 0.35 pounds for easy handling. Designed specifically for single toggle switch applications in ordinary/non-hazardous locations, meeting NEC/CEC standards for commercial and industrial electrical installations.
Installation Process
- Verify 4" square box is properly mounted and level
- Install toggle switch in cover opening with appropriate mounting hardware
- Route conductors through box and make proper wire connections
- Carefully fold conductors into box ensuring adequate clearance
- Position cover over box ensuring proper alignment
- Secure cover to box using appropriate mounting screws
Applications
Perfect for:
- Commercial Buildings - Office complexes, retail stores, restaurants, and healthcare facilities
- Industrial Facilities - Manufacturing plants, warehouses, and processing facilities
- Institutional Projects - Schools, government buildings, and municipal facilities
- Surface-Mounted Installations - Areas where recessed mounting is not practical
- Equipment Control Panels - Motor control centers and electrical distribution systems
- Utility Applications - Electrical rooms, mechanical spaces, and service areas
- Renovation Projects - Upgrading existing electrical systems with surface mounting
- Heavy-Duty Environments - Areas requiring robust switch protection and durability
Surface Cover System Benefits
Surface covers provide essential protection for electrical devices while offering installation flexibility in both new construction and retrofit applications. The raised surface design protects switches from physical damage while providing professional appearance. Steel construction ensures long-term durability in demanding commercial and industrial environments where reliability is critical.
Why Choose Steel Construction?
Steel surface covers offer superior strength and impact resistance compared to plastic alternatives, making them ideal for high-traffic areas and industrial environments. The robust construction withstands physical abuse while maintaining electrical integrity. Eaton Crouse-Hinds steel covers provide the durability and professional appearance that electrical contractors trust for long-term performance in demanding applications.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Box Size:
- 4"
- Material:
- Steel
- Product Height:
- .5 in
- Product Length Depth:
- 4 in
- Product Weight:
- .35 lb
- Product Width:
- 4 in
- Standards Type:
- NEC/CEC
- Type:
- For one toggle switch
- Product Type:
- Surface Covers
- Product Group:
- Electrical Covers
- Department:
- Electrical
- Product Subgroup:
- Surface Covers
