Blackburn L70 CU 1COND 1HL MOUNT 14-4 SLOT SCREW

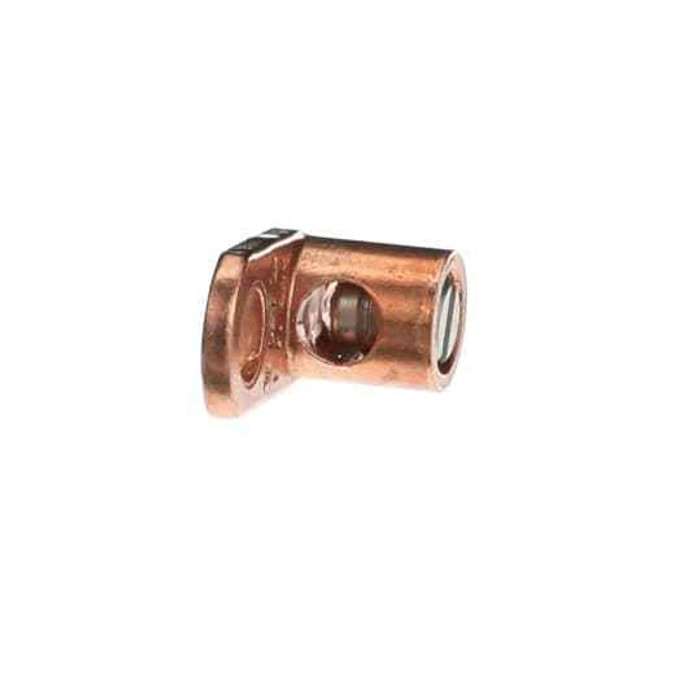

Blackburn L70 Copper Mechanical Connector 14-4 AWG Single Conductor with Mounting Hardware

(No reviews yet) Write a Review

Model: L70
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$62.13
$6.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn L70 Copper Mechanical Connector 14-4 AWG Single Conductor with Mounting Hardware

Professional Copper Electrical Connection Solution

The Blackburn L70 copper mechanical connector delivers reliable single conductor connections for 14-4 AWG wire applications. This professional-grade copper connector features slot screw mounting hardware and UL E9809 listing, ensuring secure electrical connections in wire and cable management systems.

Professional Features & Benefits

  • 14-4 AWG Wire Range: Accommodates a wide range of conductor sizes for versatile installation applications
  • Copper Construction: Provides excellent conductivity and corrosion resistance for long-term reliability
  • Single Conductor Design: Optimized for individual wire connections with secure mechanical attachment
  • Slot Screw Mounting: Features integrated mounting hardware for easy installation and service access
  • UL E9809 Listed: Meets rigorous safety and performance standards for professional electrical applications
  • Mechanical Connection Type: Delivers dependable wire termination without requiring specialized tools

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Insulation Material: None
  • Material: Copper
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Copper Connectors
  • Rohs Date: 9AKK108466A3880
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Type2: Mechanical connectors

Professional Applications

  • Residential Electrical Systems
  • Commercial Building Wiring
  • Industrial Control Panels
  • Electrical Distribution Equipment
  • Wire Management Systems
  • Professional Electrical Installations

Why Choose Blackburn Quality?

Blackburn copper mechanical connectors provide dependable performance with UL E9809 listing and robust copper construction. The L70 connector delivers professional-grade reliability for demanding electrical connection applications where secure wire termination is essential.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Insulation Material:
None
Product Group:
Wire & Cable Management
Product Type:
Copper Connectors
Rohs Date:
9AKK108466A3880
Selling Unit Of Measure:
each
Standards:
UL E9809
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Copper

Blackburn L70 – Frequently Asked Questions

1) What wire sizes does the Blackburn L70 mechanical connector accept?
The L70 takes a single conductor from 14 AWG up to 4 AWG, so one lug covers most branch circuit and feeder grounding conductors you run into on a panel or equipment ground bar. It is a one-conductor, one-hole mount lug, so each wire needs its own connector.
2) Can I use the L70 connector on aluminum conductors?
No. The L70 is a copper-bodied connector specified for copper conductors. For aluminum or dual-rated work you need a lug marked AL9CU or similar; putting bare aluminum into a copper-only lug is a code and corrosion problem.
3) Do I need a crimp tool or die set to install the Blackburn L70?
No crimper needed. It is a mechanical set screw connector with a slotted screw, so a flat blade screwdriver torqued to the marking on the lug is all the installation takes. That also means you can back the screw out and re-terminate during service without cutting the conductor back.
4) Does the Blackburn L70 come with mounting hardware, and how is it fastened?
It ships as a one-hole mount lug with mounting hardware included. The single hole bolts it to a ground bar, enclosure pad, or panel surface; you supply the bonding screw or stud if the equipment does not already have one.
5) Is the L70 lug insulated, or do I need to cover the termination?
Bare metal, no insulation on the body. For grounding and bonding inside an enclosure that is normal, but if the conductor is a live phase in an accessible location you will need to provide your own boot or barrier to keep it out of reach.
6) How is the Blackburn L70 sold, individually or in packs?
Sold each, one connector per unit, under manufacturer part number L70. If you are landing multiple conductors on a bar, count one L70 per wire since it is a single conductor lug.
7) Will a copper mechanical connector like the L70 hold up in a damp or corrosive panel location?
The body is copper, which resists corrosion and keeps conductivity stable over time on copper-to-copper terminations. There is no plating or insulation involved, so avoid direct contact with dissimilar metals such as bare aluminum at the mounting pad to prevent galvanic corrosion.
