Blackburn L35 CU 1COND 1HL MOUNT 14-8 SLOT SCREW

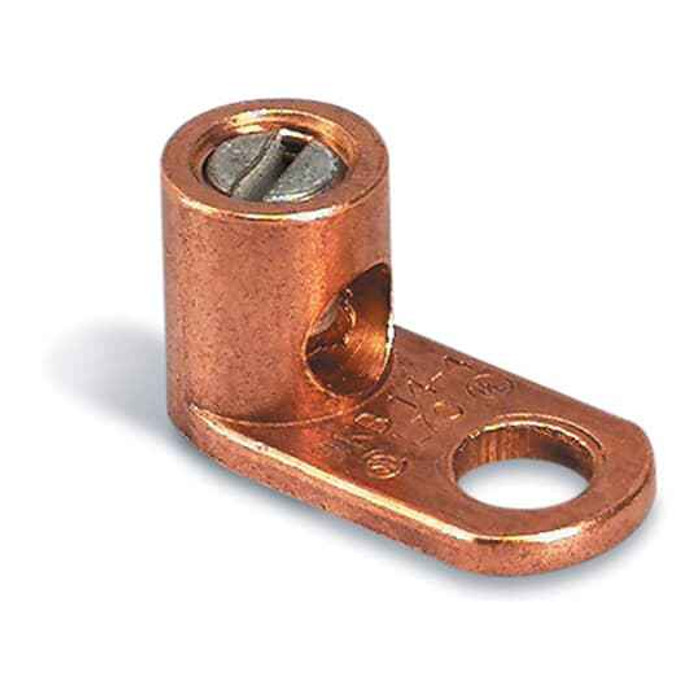

Blackburn L35 Copper Mechanical Connector 1-Conductor 1-Hole Mount 14-8 AWG Slot Screw Terminal

(No reviews yet) Write a Review

Model: L35
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.91
$3.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn L35 Copper Mechanical Connector 1-Conductor 1-Hole Mount 14-8 AWG Slot Screw Terminal

Professional Copper Connector for Reliable Wire Termination

The Blackburn L35 copper mechanical connector delivers professional-grade wire termination for 14-8 AWG conductors. This single-conductor, single-hole mount connector features durable copper construction with slot screw terminal design for secure electrical connections in professional installations.

Professional Features & Benefits

  • 14-8 AWG Wire Range: Accommodates common wire sizes for versatile installation applications
  • Copper Construction: Provides excellent conductivity and corrosion resistance for long-term reliability
  • 1-Hole Mount Design: Enables secure mechanical mounting with simplified installation process
  • Slot Screw Terminal: Allows easy wire insertion and secure clamping for dependable connections
  • UL Listed (E9809): Meets rigorous safety standards for professional electrical installations
  • Single Conductor Configuration: Optimized design for individual wire termination applications

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Material: Copper
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Copper Connectors
  • Rohs Date: 9AKK108466A3880
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Type2: Mechanical connectors

Professional Applications

  • Electrical Panel Connections
  • Control Cabinet Wiring
  • Industrial Equipment Terminations
  • Commercial Building Systems
  • Maintenance and Repair Projects
  • Professional Electrical Installations

Why Choose Blackburn Quality?

Blackburn mechanical connectors deliver proven reliability with UL listing and durable copper construction. The L35 connector provides professional-grade performance for demanding electrical applications where secure wire termination is essential.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Product Group:
Wire & Cable Management
Product Type:
Copper Connectors
Rohs Date:
9AKK108466A3880
Selling Unit Of Measure:
each
Standards:
UL E9809
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Copper

Blackburn L35 – Frequently Asked Questions

1) What wire sizes does the Blackburn L35 copper connector accept?
The L35 takes a single conductor from 14 AWG up to 8 AWG. It is a one-conductor lug, so one wire per connector; if you are landing two conductors at the same point you need a two-conductor body instead.
2) Is the Blackburn L35 lug UL listed for electrical inspection?
Yes, the L35 carries UL listing under file E9809. That is the reference an inspector or spec reviewer will want for a mechanical connector in a panel or control cabinet.
3) Can I use the Blackburn L35 on aluminum conductors?
No. The L35 body is copper and it is catalogued as a copper mechanical connector, so use it with copper conductors only. For aluminum or mixed copper/aluminum runs you need a dual-rated AL9CU connector.
4) How does the L35 mount to a ground bar or panel?
It is a one-hole mount lug, so it lands on a single bolt or screw through the panel, bus, or equipment pad. One fastener means it can rotate under torque, so snug it against a flat surface and hold the body while you tighten. For a connection that must not rotate, use a two-hole lug.
5) What is the manufacturer part number for the Blackburn 14-8 AWG copper lug?
The part number is L35, from Blackburn. That is the number to quote to a distributor or put on a submittal for the one-conductor, one-hole copper mechanical connector covering 14 through 8 AWG.
6) What kind of screw does the Blackburn L35 use to clamp the wire?
A slot screw terminal. You drive it with a flat blade screwdriver, no hex key or Allen wrench needed, which matters if you are working a panel with limited access and want to keep your tool count down.
7) Is the Blackburn L35 sold individually or in a bag?
The L35 is sold each, so quantity one gets you one connector. Order per termination point when you are counting up a panel job.
8) Where is the Blackburn L35 connector made?
Manufactured in Mexico. Useful if your project has country-of-origin reporting or procurement documentation requirements.
