Blackburn L250H CU 1COND 1HL MOUNT 6STR-250 ALN HEX

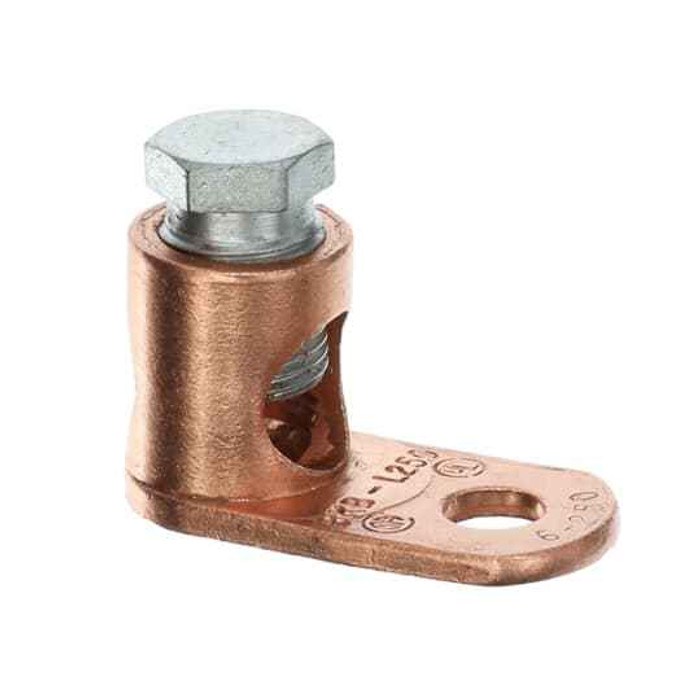

Blackburn Copper Mechanical Connector 1-Conductor 1-Hole Mount 6-Strand 250 MCM Aluminum Hex

(No reviews yet) Write a Review

Model: L250H
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$57.61
$14.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn Copper Mechanical Connector 1-Conductor 1-Hole Mount 6-Strand 250 MCM Aluminum Hex

Professional Copper Connector for Reliable Electrical Connections

The Blackburn copper mechanical connector delivers professional-grade electrical connections with single-conductor, single-hole mounting design. This 6-strand 250 MCM aluminum hex connector features durable copper construction for reliable performance in electrical installations and wire management applications.

Professional Features & Benefits

  • Copper Construction: Provides excellent conductivity and corrosion resistance for long-lasting electrical connections
  • 1-Conductor Design: Optimized for single-wire applications with secure mechanical connection
  • 1-Hole Mount Configuration: Simplifies installation with single mounting point for efficient setup
  • 6-Strand 250 MCM Capacity: Accommodates aluminum hex conductors up to 250 MCM for versatile wire management
  • UL Listed: Meets UL E9809 standards ensuring safety and compliance in electrical installations
  • Mechanical Connection Type: Provides secure, maintenance-free connection without requiring special tools

Technical Specifications

  • Country Of Origin: Mexico (MX)
  • Department: Electrical
  • Material: Copper
  • Product Group: Wire & Cable Management
  • Product Subgroup: Connectors
  • Product Type: Copper Connectors
  • Rohs Date: 9AKK108466A3880
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Type2: Mechanical connectors

Professional Applications

  • Electrical Panel Connections
  • Wire Management Systems
  • Commercial Electrical Installations
  • Industrial Wiring Applications
  • Utility Connection Points
  • Professional Electrical Contracting
  • Maintenance and Repair Operations

Why Choose Blackburn Quality?

Blackburn copper mechanical connectors provide reliable electrical connections backed by UL listing and professional-grade copper construction. The durable design ensures long-term performance in demanding electrical applications with consistent connectivity and corrosion resistance.

Manufacturer Resources

Product Specs

Country Of Origin:
Mexico (MX)
Product Group:
Wire & Cable Management
Product Type:
Copper Connectors
Rohs Date:
9AKK108466A3880
Selling Unit Of Measure:
each
Standards:
UL E9809
Type2:
Mechanical connectors
Department:
Electrical
Product Subgroup:
Connectors
Product Material:
Copper

Blackburn L250H – Frequently Asked Questions

1) What wire range does the Blackburn L250H mechanical lug take?
The Blackburn L250H accepts a single conductor in the 6 AWG through 250 MCM range, stranded. One conductor per lug, so a branch circuit that needs two runs landed needs either two lugs or a two-conductor body.
2) Can I use the L250H with aluminum conductors, or is it copper only?
Both. The lug body is copper, and it is rated for aluminum conductors as well, which is what the AL/CU hex designation in the L250H description covers. On aluminum, brush and apply an oxide inhibitor before landing the conductor per normal practice.
3) Is the Blackburn L250H UL listed for panel and service equipment work?
Yes. It carries UL file E9809, which is what an inspector looks for on a mechanical lug landing a feeder in a panel, gutter, or utility connection point.
4) How does the L250H mount, and how many bolt holes does it have?
One-hole mount. A single bolt or stud secures the lug pad to the bus or ground bar, which keeps the footprint small but means the lug can rotate under torque until the bolt is fully tight. If your bus prep has two holes on a fixed center, you need a two-hole lug instead.
5) Do I need a crimp tool or die set for the L250H?
No. It is a mechanical connector, tightened with a hex socket or Allen wrench on the setscrew, so no crimper, die set, or hydraulic tool is required. That makes it the usual choice for field terminations and MRO repairs where a compression tool is not on the truck.
6) Should I use a mechanical lug like the L250H or a compression lug on a 250 MCM feeder?
A mechanical lug is the practical pick when you are working in place, may need to re-terminate later, or do not want to carry a hydraulic crimper and 250 MCM dies. It installs with a wrench and can be removed. A compression lug gives a permanent one-shot termination and is preferred where vibration or spec calls for it. For panel connections, wire management, and maintenance work, the L250H covers it.
7) Is the L250H sold individually or in a bag of multiples?
Sold each, one lug per unit. Order the quantity you need, counting one lug per conductor being landed.
8) Where is the Blackburn L250H made?
Mexico. Relevant if you are bidding work with domestic-sourcing or country-of-origin documentation requirements on the submittal.
