CU COMP CONN C-CRIMP No6-No4 8-9
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- C-Tap
- Replacement Product Id New :
- 7TAA269830R0014
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Sub Brand Label:
- Blackburn
- Type2:
- Electrical taps
- Department:
- Electrical
- Product Subgroup:
- Tap Connectors
- Product Material:
- Copper
Blackburn BC48 – Frequently Asked Questions
1) What wire sizes does the Blackburn BC48 C-tap connector take?

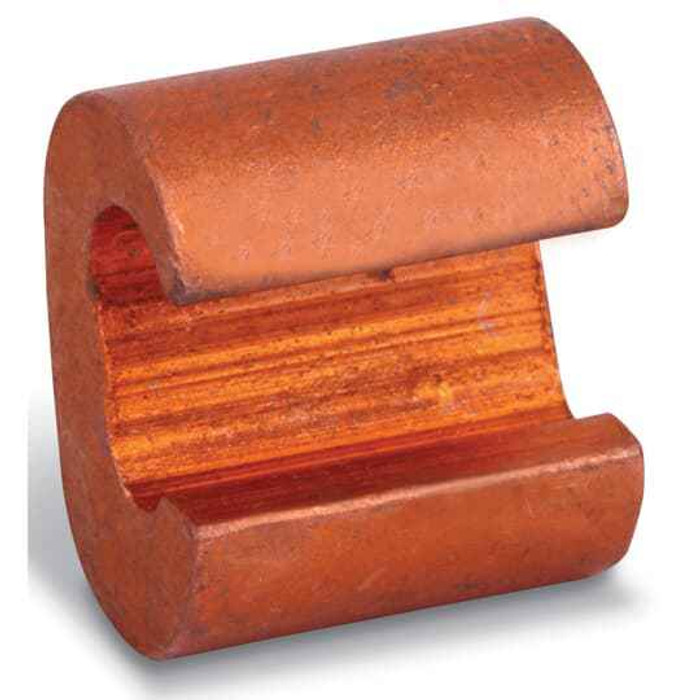

The BC48 is sized for a No. 6 run with a No. 4 tap, per its CU COMP CONN C-CRIMP No6-No4 designation. It is a copper compression C-tap, so both conductors must be copper, and it is crimped, not bolted, meaning you need a compression tool with the matching die to make the connection.
2) Can I use a copper C-tap like the BC48 on aluminum conductors?
No. The BC48 is a copper-bodied compression connector intended for copper conductors only. For aluminum or copper-to-aluminum taps you need a connector rated AL9CU or an aluminum-bodied tap, not this one.
3) Does the BC48 C-tap need to be insulated after crimping?
Yes. The BC48 is a bare copper compression C-tap with no insulation of its own, so the finished connection has to be covered with tape, a heat-shrink or cold-shrink sleeve, or an insulating cover suited to the circuit voltage.
4) I have a drawing calling out part 7TAA269830R0014 for a copper tap. Is the BC48 the same part?
Yes. 7TAA269830R0014 is the current replacement product ID for the Blackburn BC48, so a spec or older order referencing that number is filled by this connector.
5) Should I use a compression C-tap like the BC48 or a split-bolt for a service tap?
A compression C-tap such as the BC48 is crimped once with a die tool and stays put, so it suits underground, pedestal, and buried or inaccessible splices where nothing will be retorqued later. A split-bolt is mechanical and can be taken apart, which is the better choice when you want a reworkable connection or do not have the crimp tool and die on site.
6) Is the BC48 sold individually or in a bag of connectors?
Each. The selling unit on the BC48 is a single connector, so order the exact count of taps your job needs rather than a bulk pack.
7) Where is the Blackburn BC48 tap connector made?
The BC48 is made in the United States, which matters on federal, municipal, and other domestic-preference jobs where the electrical bill of materials has to show country of origin.
How fast can I get the Blackburn BC48 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Blackburn BC48 come with a warranty?
Absolutely. The Blackburn BC48 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Blackburn BC48?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
