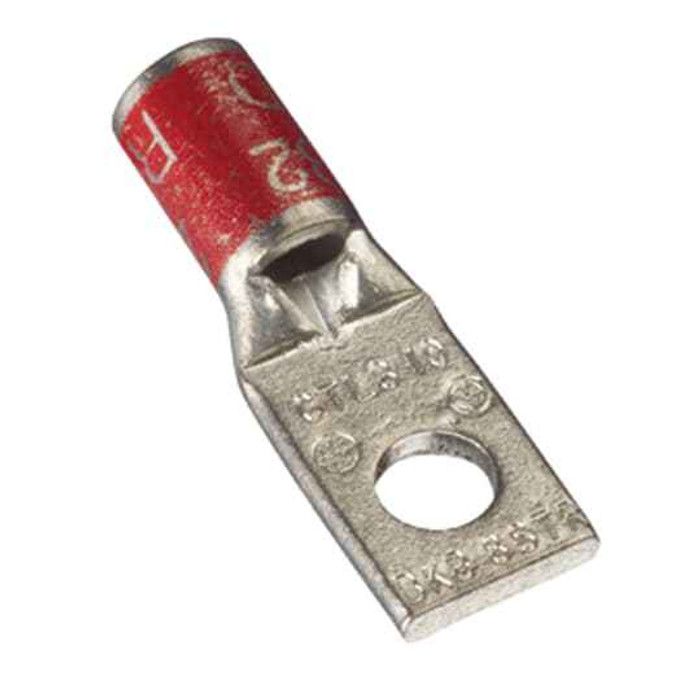

CU TP 1HL LUG SHRTBRL 3/0 1/2B ORG
Manufacturer Resources
Product Specs
- Cable Size:
- 3/0 AWG
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire Termination
- Product Type:
- Standard Barrel
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Stud Size:
- 1/2 in
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Department:
- Electrical
- Product Subgroup:
- Lugs
- Product Color:
- Orange
- Product Material:
- Copper
Blackburn CTL30-12 – Frequently Asked Questions
1) What wire size does the Blackburn CTL30-12 lug take?
The CTL30-12 is sized for a single 3/0 AWG conductor. It's a one-hole, one-conductor compression lug, so each termination needs its own lug, and they're sold individually. Running 4/0 or 2 AWG means a different part number in the CTL family.
2) Can I use the CTL30-12 on aluminum conductor?
No. The CTL30-12 is a copper compression lug intended for copper conductor. For aluminum or dual-rated runs you need a lug marked AL9CU. Using a copper-only barrel on aluminum is not a listed combination.
3) What does the orange color on this Blackburn lug mean?
Orange is the die color code for this barrel. The lug body is marked orange so the installer can match it to the correct compression die set and nest in the crimp tool, and an inspector can verify the right die was used from the indent color. It is a crimp lug, not a mechanical set-screw type.
4) What is a short barrel lug good for, and when should I use a long barrel instead?
A short barrel takes a single crimp and keeps the overall length down, which matters when you're terminating inside a crowded panel, gutter, or CT cabinet where bending radius and clearance to the enclosure wall are tight. Long barrel versions take two crimps and give more pullout strength, which is what you want on vibrating equipment or where the spec calls for a two-indent termination. The CTL30-12 is the short barrel type.
5) Does the CTL30-12 come with the bolt and hardware to land it?
No. The lug is the copper terminal only, sold as a single piece. The 1/2 inch bolt, nut, Belleville or flat washer for the stud connection, plus any antioxidant compound and heat shrink or tape for the barrel, are separate. Crimping also needs the correct die for the orange color code.
6) How many CTL30-12 lugs do I need to order for a three phase plus neutral feeder?
One per conductor at each end. Each lug terminates a single 3/0 conductor, and they ship each, not in packs. A 3/0 three-phase-plus-neutral feeder terminated both ends is eight lugs, plus whatever the ground needs.
7) What is the country of origin on the Blackburn CTL30-12 for my submittal?
Manufactured in Mexico. That's the origin to list on procurement paperwork; note it is not a domestic-source part if your project carries a Buy American requirement.
