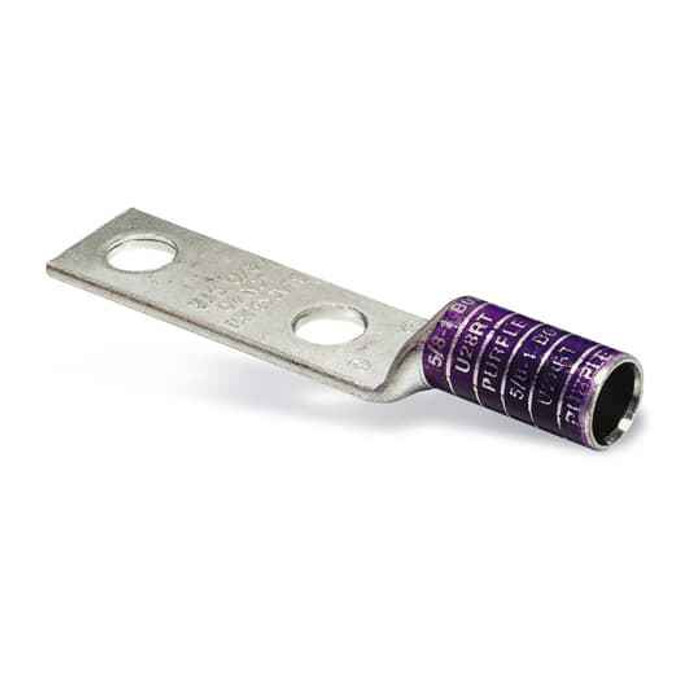

CU TP 2HL LUG LONG BRL 1000 1/2B
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire Termination
- Product Type:
- Long Barrel
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Stud Size:
- 1/2 in
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Voltage Rating:
- 35 kV
- Department:
- Electrical
- Product Subgroup:
- Lugs
- Product Material:
- Copper
Blackburn LCN99 – Frequently Asked Questions
1) What size stud or bolt does the Blackburn LCN99 compression lug land on?
The LCN99 lug has a 1/2 inch stud hole, so it bolts to a 1/2 inch stud, busbar tap, or breaker pad. It's a two-hole pad, which resists rotation on the connection and is what most switchgear and panel terminations call for at this size.
2) Is the Blackburn LCN99 lug rated for medium voltage cable terminations?
It carries a 35 kV voltage rating, so it's suitable for medium voltage terminations as well as low voltage work. It's UL listed under file E9809.
3) What conductor size does the Blackburn LCN99 long barrel lug take?
The LCN99 is sized for 1000 kcmil conductor. It's a compression lug, so it's crimped onto the cable with the matching die, not bolted or set-screwed.
4) Can I use a copper lug like the LCN99 on aluminum cable?
No. The LCN99 is copper bodied and intended for copper conductor. For aluminum or dual-rated runs you need a lug marked AL9CU or an aluminum-bodied compression lug with the correct die.
5) What is the advantage of a long barrel lug over a standard barrel on a 1000 kcmil run?
A long barrel takes two crimps instead of one, which gives more contact area and better pull-out strength on large conductor. That's why it's the common choice on 1000 kcmil feeders and medium voltage terminations. Standard barrel lugs are fine on smaller conductor in low voltage panels.
6) Do I need anything besides the LCN99 lug to make the termination?
The lug itself is just the connector. You supply the 1/2 inch bolt hardware for the two-hole pad, and you need a hydraulic crimper with the correct die for a 1000 kcmil copper long barrel lug. Nothing is packed with the lug.
7) Does the Blackburn LCN99 come in a pack or is it sold individually?
It's sold each, so you order one lug per termination. On a three phase feeder with a neutral, that's four per end.
8) Where is the Blackburn LCN99 lug made?
Country of origin is Mexico. It's a Blackburn branded compression cable lug.
