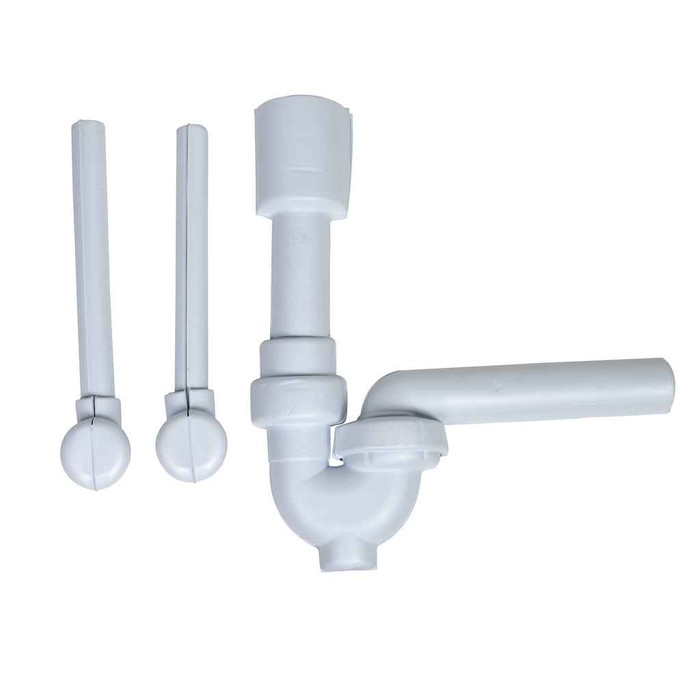

Dearborn® Full Cover Kit, Straight Grid Drain, Two Supply Line and Valve Covers
ADA101 - spec sheet
Features
- Clean appearance and aesthetics
- Easily accommodates supply line offsets
- For warranty product details, refer to the Oatey Limited warranty document
- Product can be painted with latex based coatings
- Certified antimicrobial per ISO 846 Method C
- Covers 1-1/4" & 1-1/2" plastic or brass tubular with or without cleanouts
- Secure Fit Hook and Loop design
- Fast and easy installation
- Easy to cut and size
- Will not fade or discolor
ADA101 - spec sheet
Manufacturer Resources
Product Specs
- Kit Type:
- Brass & Plastic Tubular Cover Kit
- Volume:
- 0.248
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Drainage Products
- Product Type:
- Drain
- Product Finish:
- White
- Product Material:
- EVA Foam
- Product Weight:
- 0.57
OATEY ADA101 – Frequently Asked Questions
1) Will the Oatey ADA101 cover kit fit 1-1/2 inch tubular P-trap and supply lines?
Yes. The Dearborn ADA101 kit covers 1-1/4 inch and 1-1/2 inch tubular, in either plastic or brass, and it works over tubular with or without cleanouts. It's a straight grid drain kit with two supply line and valve covers, so one kit handles the trap arm plus both hot and cold stops under a lavatory.
2) What does the ADA101 undersink cover kit actually do?
It insulates and conceals the exposed drain and supply piping under a wall-hung or ADA lavatory so a wheelchair user's legs can't contact hot or abrasive pipe. The Dearborn ADA101 is a full kit: a straight grid drain cover plus two supply line and valve covers, molded in white EVA foam with a hook-and-loop closure you wrap around existing pipe. No pipe work required.
3) My supply stops aren't square to the wall. Will these covers still work?
They will. The ADA101 supply covers accommodate offsets in the supply lines, and the foam is easy to cut and size on site, so you can trim to length and work around angled or off-center stops. The hook-and-loop closure lets you open and reclose them for service without cutting anything off the pipe.
4) Is this pipe insulation kit antimicrobial for healthcare and school restrooms?
The ADA101 is certified antimicrobial per ISO 846 Method C. That plus the wipeable EVA foam surface is why it turns up in healthcare, education, and high-traffic public restroom specs.
5) Do I need a different Oatey kit for an offset or P-trap grid drain?
The ADA101 is the straight grid drain version, meaning the drain cover is shaped for a straight tailpiece and trap run. If the lavatory has an offset grid drain arrangement, order the Dearborn kit built for that configuration instead; the straight cover won't wrap a bent drain cleanly.
6) Does the ADA101 come with everything, or do I have to buy the drain cover separately?
It's a full cover kit. One ADA101 carton, MPN ADA101, contains the straight grid drain cover and both supply line and valve covers. Nothing else is needed to dress a standard lavatory rough-in, and the kit ships at 0.57 lb.
7) Will these covers work over brass tubular, or only plastic?
Both. The kit is listed as a brass and plastic tubular cover kit and covers either material in 1-1/4 inch or 1-1/2 inch. That matters on retrofits where the existing trap is chrome-plated brass and you don't want to repipe just to add ADA protection.
8) Can I paint the Oatey ADA101 covers to match the restroom?
Yes, latex based coatings can be applied. Out of the box they are white and the material will not fade or discolor, so many facilities leave them as-is in a commercial restroom.
