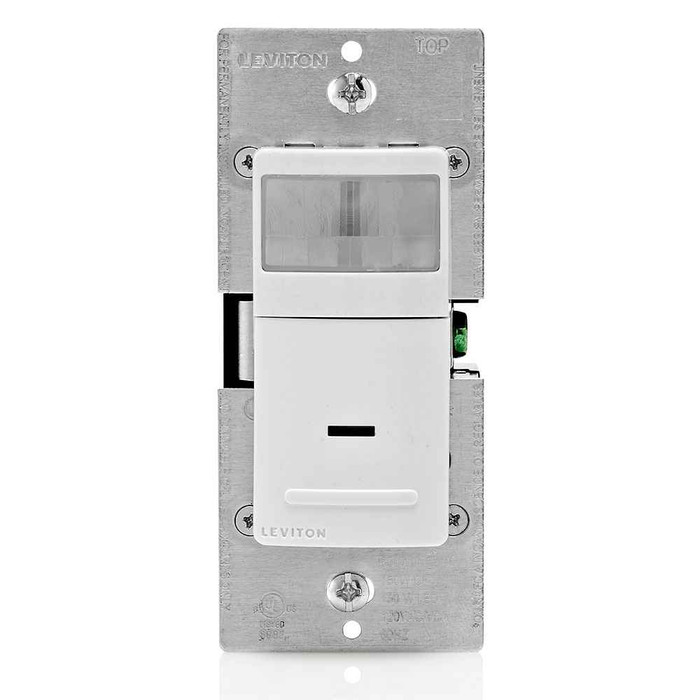

Decora Motion Sensor In-Wall Remote Switch, White, Ivory, Light Almond
Features
- 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
- Low-Profile design eliminates an obtrusive "scanning device" look. Elegant compliments any interior and coordinates with Leviton's popular line of Decora® wiring devices.
- Segmented fresnel lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected.
- Manual ON/Automatic OFF operation in accordance with California Title 24 2005 requirements when used with IPV15.
- Requires a neutral (white) wire connection.
- Automatic ON/Automatic OFF operation when used with IPS15.
- Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds, 10 minutes, 20 minutes and 30 minutes.
- UL Listed and CSA Certified, complies with California Title 24 2005 Energy Code and FCC regulations.
- LED Indicator Light flashes when sensor detects motion to verify detection is active.
- Convenient push-button provides Manual ON/OFF light switching at any time.
Manufacturer Resources
Product Specs
- California Title 24:
- Yes
- Color:
- White, Ivory, Light Almond
- Coverage Sq Ft :
- 900
- Frequency:
- 60Hz
- Neutral Wire Connection:
- Required
- Ordering Notes:
- Wallplate Sold Separately
- Product Line:
- IPV0R
- Sensor Type:
- Wall Switch
- Switch Type:
- Single-Pole
- Technology:
- Passive Infrared
- Voltage:
- 120 VAC
- Product Group:
- Electrical
