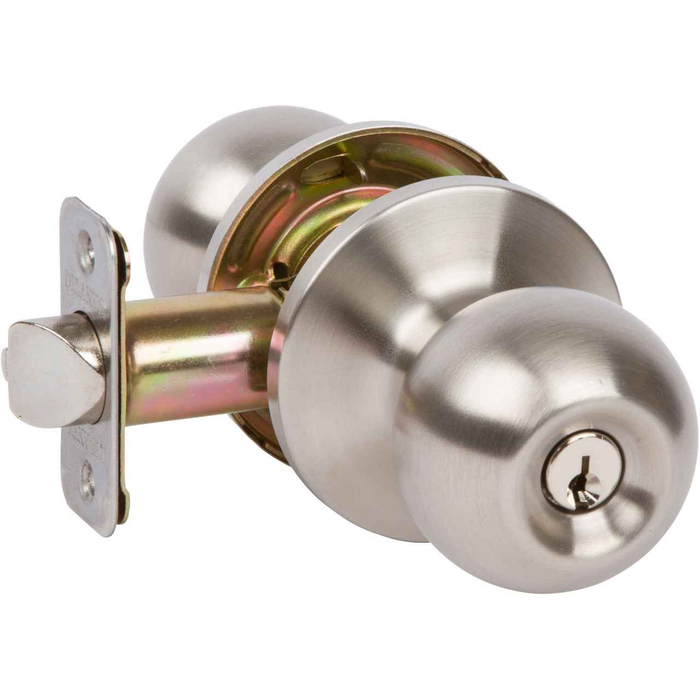

Delaney Belton - Grade 3 Entrance Knobset

Delaney Belton - Grade 3 Entrance Knobset

(No reviews yet) Write a Review

Model: D11322
$29.00
$23.35
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$29.00
$23.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delaney Belton Keyed Entry Single Cylinder Door Knobset

The entry function has a button on the inside which can lock the outside lever until a key is used outside or the knob is rotated inside. The inside latch is always free making it panic proof. The Belton Series features round knobs with a functional, commercial appearance.



Features:

  • Combination screws for wood or metal door mounting
  • Works well for functional decor
  • Concealed mounting screws



Specifications:

  • Backset: Fits 2-3/4" and 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Faceplate: 1" x 2.25" Round Corner
  • Door Thickness: Standard from 1-3/8" to 2"
  • Cylinder: 6 Pin Schlage C Keyway
  • Function: Single Cylinder
  • Latch: 1/2" throw
  • Strike: 2-1/4" T-strike



Technical Specification Download

Product Specs

Subcategory:
Bored Locksets
Series:
Belton
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Function:
Entrance
Product Type:
Knobsets
Grade:
Grade 3
Product Attribute:
Cylindrical Locks
Product Function:
Entrance
Product Category:
Mechanical Locks
Department:
Door Hardware

Delaney Hardware D11322 – Frequently Asked Questions

1) Will the Belton knob latch into the strike plate already in my jamb?
It depends what is in the jamb now. The Belton ships with a 2-1/4 inch T-strike and the latch has a 1/2 inch throw, which is the normal residential cylindrical pattern. If your frame is prepped for a round-corner or full-lip strike instead of a T-strike, the latch will still throw into the mortise but you may want to swap the strike to get clean coverage of the old cutout.
2) Can I key the Delaney Belton to match my existing Kwikset or Schlage keys?
Yes, within the two keyways offered. The Belton is ordered in either KW1 5-pin or SC1 5-pin, so it can be keyed to match existing Kwikset-keyway or Schlage-keyway cylinders on the property. You also choose keyed different or keyed alike at order time, which is how you set up one key across a group of units or doors.
3) The opening is a commercial corridor with heavy traffic - what keyed knob should be used instead of a Grade 3 residential entrance set?
The Delaney Belton is a Grade 3 set catalogued for residential use. For heavier traffic, step up to the BEST 8K Series, a Grade 1 heavy duty single cylinder entrance knob lock, or the Corbin Russwin CK4851, a Grade 1 entrance/office cylindrical knob lock with conventional cylinder for doors 1-3/8 inch to 2 inch. A Grade 2 middle option is the Dexter C2000 entry/office keyed ball knob for 1-3/8 inch to 1-3/4 inch doors, or the Callan Edgewood Grade 2 entrance knobset.
4) What is a direct equivalent to the Delaney Belton Grade 3 entrance knobset from another brand?
The Delaney Belton is a Grade 3 keyed entrance cylindrical knobset. Closest like-for-like options are the Callan Canova and Callan Santo, both Grade 3 entrance knobsets, and the Cal-Royal BER00, a Grade 3 entrance/office knob lock with a Kwikset keyway for doors 1-3/8 inch to 1-3/4 inch. Pamex FTF Baron is also a Grade 3 entrance/office knob lockset for 1-3/8 inch to 1-3/4 inch doors, and the Kwikset 400P-CP is a Grade 3 keyed entry knob for the same thickness range. The Belton itself covers a wider 1-3/8 inch to 2 inch door thickness, so confirm thickness before swapping.
5) Which knob products look like a substitute for the Belton entrance knobset but will not lock the door?
Dummy trim has no latch and no cylinder at all, so it cannot replace the Belton's keyed entrance function: that includes the BEST 6K single dummy trim, Schlage A170 single dummy trim, Cal-Royal BA40 dummy knob, Bravura Biloxi dummy knobset, Omnia 434/0 and 458/0 single dummy latchsets, and the Emtek Hammered Egg and Georgetown dummy pairs. Exit device trims such as the Sargent 28C-KNOB and Imperial USA ED-BKL580 knob trim are also not bored locksets - they mount to an exit device, not a 2-1/8 inch cross bore.
6) The door needs to stay locked from outside at all times and not be left unlocked by a push button - what should replace the Belton?
The Belton's entrance function uses an inside button that holds the outside knob locked until a key is used or the inside knob is turned, which means staff can leave it unlocked. Where the outside must always require a key, use a storeroom function instead: the Sargent 6G04 is a Grade 2 storeroom/closet knob lock with single cylinder, and the Sargent 8XG04 is a Grade 1 heavy duty storeroom/closet single cylinder knob lock with 2-3/4 inch backset, matching the Belton's 2-3/4 inch backset prep.
7) We key our buildings to Kwikset - which keyed entrance knobs match that keyway?
The Delaney Belton is offered in KW1 5-pin and SC1 5-pin keyways, so KW1 covers a Kwikset-keyed property. Among other keyed entrance knobs, the Cal-Royal BER00 is a Grade 3 entrance/office knob lock supplied with a Kwikset keyway. If the property is keyed to Schlage instead, the Belton in SC1 covers that side.
8) What does the entrance function on the Belton knobset actually do when someone is inside?
There is a push button on the inside knob that locks the outside knob. Once pushed, the outside knob stays locked until a key is used from outside or the inside knob is turned, which releases it. The inside knob is always free to retract the latch, so nobody gets shut in. That makes it a normal front door, apartment entry, or office door function rather than a storeroom lock that stays locked at all times.
9) What do I have to specify when ordering the Belton entrance knobset?
Three things. Finish, which comes in US32D Stainless Steel, US12P Tuscany Bronze, or US19 Black. Keyway, either KW1 5-pin or SC1 5-pin. And keying, keyed different or keyed alike. Nothing else is required to complete the set; combination screws for wood or metal doors are included and the mounting screws are concealed once assembled.
10) I need matching Belton knobs for the bedroom and closet doors too, not just the entry.
The Belton knobset covered here is the keyed entrance function only, so it is the wrong part for a bathroom or a closet. For matched non-keyed functions in the same Grade 3 residential class, the Pamex FTF Baron is offered in privacy and passage, and Cal-Royal's BER20 is a Grade 3 privacy knob. If you want the whole opening set from one series, pick a series that publishes entrance, privacy, and passage together rather than mixing.
11) Will the Belton knobset mount on a hollow metal door or only wood?
Both. The Belton ships with combination screws that work for wood or metal door mounting, and it uses standard cylindrical prep, 2-1/8 inch cross bore with a 1 inch edge bore. On a hollow metal door confirm the existing prep is on a 2-3/4 inch backset, since the latch is not adjustable.
12) We do not need a key on this door - what is the non-keyed version to use instead of the Belton entrance knobset?
The Belton is an entrance function with a keyed outside cylinder, so for an interior hall or closet door use a passage knob instead: the Pamex FTF Baron passage knobset is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Dexter C2000 passage ball knob is Grade 2 for the same range. Arrow MK01 and RK01 are Grade 2 non-keyed passage knobs for 1-3/8 inch to 1-3/4 inch doors. For a bath or bedroom needing a thumbturn, the Pamex FTF privacy knobset and Cal-Royal BER20 are both Grade 3 privacy functions.
13) Is there an entrance knob that suits a 2 inch thick door better than a lock rated to 1-3/4 inch?
The Delaney Belton covers standard doors from 1-3/8 inch to 2 inch, so it already spans thicker slabs. Other options listing the same 1-3/8 inch to 2 inch range are the Corbin Russwin CK4851 Grade 1 entrance/office knob lock, the Deltana 3381 Egg Knob entry, and the Deltana 6171 Round Knob entry. By contrast, the Deltana 6901 Portland Knob entry is listed to 1-3/4 inch.
14) Is there a keyed entrance knob and deadbolt combination instead of buying the knobset alone?
The Delaney Belton is sold as a single cylinder entrance knobset on its own, so a deadbolt would be a separate order. If a packaged set is preferred, the Schlage Residential F500 Plymouth with Georgian knob is a combo pack with adjustable backsets and dual strikes for doors 1-3/8 inch to 1-3/4 inch.
15) Is there a knob option for a fire-rated opening if the Belton entrance set is not suitable?
For openings where a fire rating must be documented, the Falcon W101 Grade 2 medium duty cylindrical knob lock with 2-3/4 inch backset and the Falcon X101 Grade 1 heavy duty knobset with interchangeable core both carry a fire rating; the X101 also covers doors 1-3/8 inch to 2-1/4 inch. Both are passage/closet latch function rather than keyed entrance, so pair them with the right function for the door.
16) What is a keyless alternative to a keyed entrance knob for a shared access door?
Instead of the Belton's 6 pin keyed cylinder, the Lockey 3830 is a mechanical keyless combination knob lock with auto-locking passage function for doors 1 3/16 inch to 2 inch. It removes key management entirely, which suits a shared or rotating-access door where keys would otherwise circulate.
17) Is there another Grade 3 keyed entry knob for a rental turn if the Belton finish does not match?
The Belton comes in US32D Stainless Steel, US12P Tuscany Bronze and US19 Black. If none of those match the other doors, the Master Lock BC Series is a Grade 3 keyed entry biscuit knob, the Kwikset 400P Polo keyed entry knob ships with a 6AL latch and RCS strike, and the Pamex FT3 Saturn knob lockset is Grade 3 for doors 1-3/8 inch to 1-3/4 inch.
18) What finishes does the Delaney Belton entrance knob come in, and will it blend with existing hardware?
Three finishes: US32D Stainless Steel, US12P Tuscany Bronze, and US19 Black. US32D is the satin stainless look that pairs with most commercial-appearing hardware, US19 is flat black, and US12P is a darker bronze tone. The Belton's round knob and plain rose read as functional rather than decorative, which is why it tends to get specified where the rest of the building hardware is utilitarian.
19) Which round knob entrance sets have a decorative rather than commercial look?
The Belton series uses round knobs with a functional, commercial appearance. For a more decorative interior, the Deltana 3381 Egg Knob and Deltana 6171 Round Knob are entry function knobs for doors 1-3/8 inch to 2 inch, and the Omnia 434/PA is a solid brass egg-shaped passage latchset with 3 inch projection. The Omnia and Deltana pieces change the trim styling; confirm the function matches the door.
