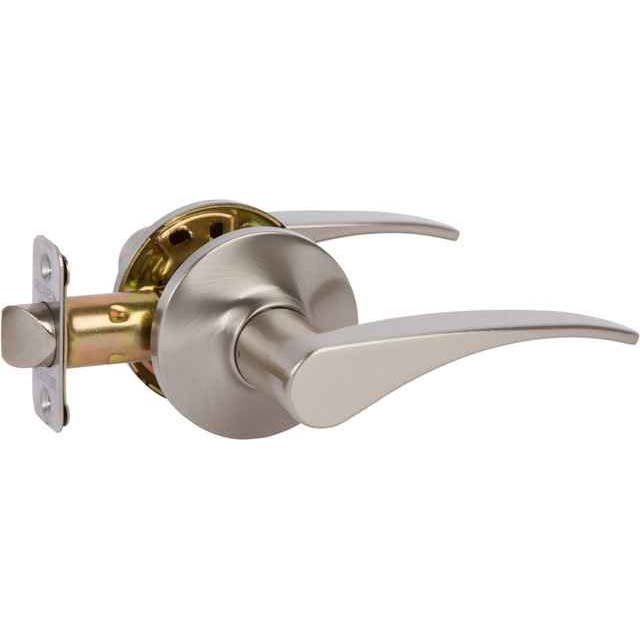

Delaney Dayton Passage Door Leverset
Clean, modern, and contemporary. The Dayton lever is a complement to a wide selection of interior designs. The passage set lever lock is commonly used on closet doors and any other door that does not need to be locked at any time.
Features:
- Universal installation feature with adjustable latch
- Fits both left-hand and right-hand doors eliminating the need to determine swing of door
- Easy installation requiring only a screwdriver
- Instructions included
- Fits on both wood and metal doors 1 3/8 in. - 1 ¾ in. thick
- Mounting hardware included
Specifications:
- Backset: 2-3/4", 2-3/8"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Handle Style: Lever
- Latch Face: Round Corner
- Strikes: Full Lip Round Corner
- Door Thickness: Adjustable from 1-3/8" to 1-3/4"
- Lever Length: 4-1/8"
- Projection: 2-5/16"
Manufacturer Resources
Product Specs
- Subcategory:
- Bored Locksets
- Series:
- Dayton
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Passage
- Product Type:
- Leverset
- Grade:
- Grade 3
- Product Attribute:
- Cylindrical Locks
- Product Function:
- Passage/Hall/Closet
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Delaney Hardware D24720 – Frequently Asked Questions
1) Will the Delaney Dayton passage leverset fit a 1-3/8 inch interior door?
Yes. The Dayton passage lever adjusts from 1-3/8 inches to 1-3/4 inches thick, so it covers both older interior doors and standard 1-3/4 inch doors, on wood or metal.
2) Does the Dayton lever drop into an existing 2-1/8 inch bore, and which backset does it use?
It uses a 2-1/8 inch cross bore with a 1 inch edge bore, which is the standard residential prep, and the latch is adjustable for either a 2-3/8 inch or 2-3/4 inch backset. If your door is already bored for a knob or lever, no new boring is needed.
3) Do I need to order the Dayton lever in left hand or right hand?
No handing to specify. The Dayton is a universal, non-handed lever that works on left hand and right hand doors, so one part covers every opening in the building.
4) Can the Dayton passage leverset be locked for a bedroom or bathroom?
No. Passage function means the lever always retracts the latch from both sides, with no button, no key, no cylinder. It suits closets, halls and pantry doors. For a bathroom or bedroom you need a privacy set, such as the Cal-Royal INDLEV-20 privacy leverset with a red/green occupancy indicator, which also adjusts 1-3/8 to 1-3/4 inches.
5) Is the Delaney Dayton lever rated for a commercial building or apartment corridor?
It is a Grade 3 residential lockset. That is fine for apartment interiors, closets and hall doors, but for commercial traffic you want a heavier duty leverset, like the Cal-Royal INDLEV-20, which we list as a standard duty commercial grade lever.
6) What lever should I use on a bathroom or restroom door instead of the Delaney Dayton passage lever?
The Delaney Dayton is a passage function lever, so it has no locking mechanism at all and is intended for closet, hall, and other doors that never need to be secured. For a door that needs to be locked from inside, the Cal-Royal INDLEV-20 is a privacy indicator leverset with a red/green occupancy indicator, which shows at a glance whether the room is in use. Both cover the same door prep range, with door thickness adjustable from 1-3/8 inch to 1-3/4 inch.
7) Is the Delaney Dayton passage leverset suitable for a commercial corridor, or should I look at a commercial-duty lever?
The Delaney Dayton passage leverset is a Grade 3 lever classified for residential use. Where a commercial-duty lever is called for, the Cal-Royal INDLEV-20 is rated standard duty commercial grade. Note that the INDLEV-20 is a privacy indicator function rather than passage, so it is a duty-level alternative rather than a function-for-function swap.
8) Will the Dayton latch work with the strike plates already in my door frames?
The Dayton ships with a full lip round corner strike and a round corner latch face. If your existing frames are prepped for square corner faceplates or a T-strike, the round corner parts will not sit flush and the frame mortise needs reworking or you should match the existing corner style.
9) How far does the Dayton lever stick out from the door face, and how long is the lever?
Projection is 2-5/16 inches off the face and the lever itself is 4-1/8 inches long. Worth checking where a door swings back against a wall or where two doors are close together in a corner.
10) Do I need anything else to install the Dayton leverset?
No extra parts. Mounting hardware, the strike, and instructions are all in the box, and a screwdriver is the only tool required. For a door with no existing prep you would still need a 2-1/8 inch bore and a 1 inch edge bore.
11) Will the Cal-Royal INDLEV-20 fit the same door prep as the Delaney Dayton lever?
Both levers are built for standard cylindrical bored-lock prep and both accept 2-3/8 inch and 2-3/4 inch backsets, and both adjust for door thicknesses of 1-3/8 inch to 1-3/4 inch. The Dayton uses a 2-1/8 inch cross bore, 1 inch edge bore, round corner latch face and full lip round corner strike. The functional difference is what happens at the lever: the Dayton is passage and always free, while the INDLEV-20 locks and displays a red/green occupancy indicator.
12) What finishes does the Delaney Dayton passage lever come in?
Three: US15 Satin Nickel, US26 Polished Chrome, and US19 Black. Satin nickel and black are the usual matches for contemporary interior packages when you are standardizing a whole unit.
