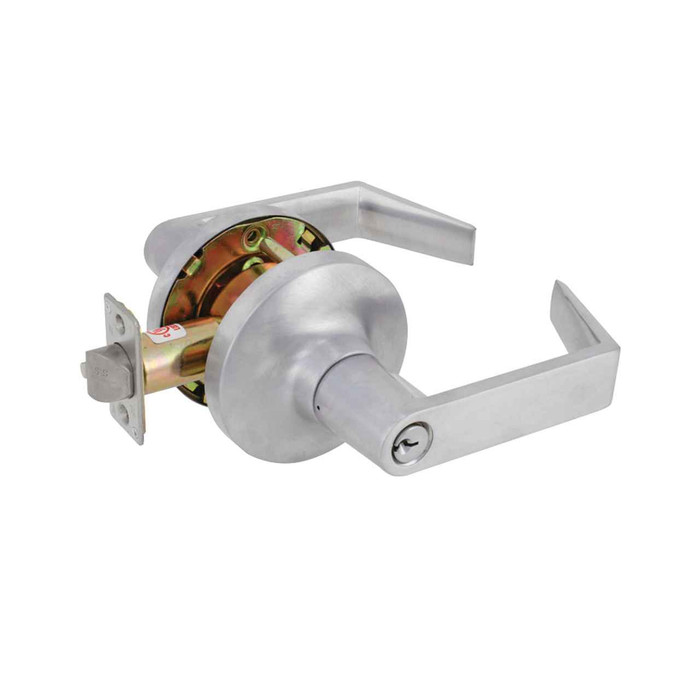

Delaney F Series - CT Style Grade 1 Entrance Cylindrical Leverset

Delaney F Series - CT Style Keyed Entrance Door Leverset

Product Technologies:

Keyed Entry Function: Delaney keyed entry knobs and levers are able to be locked from the exterior with a key, and then locked or unlocked from the inside with a turn-button.

Inside pushbutton locks outside lever. Turning inside lever or using outside key releases inside button automatically. Closing door does not release button. Button is fixed in the locked position by turning to horizontal position.

Features:

• Independent Torsion Spring
• Removable Through Bolts
• Concealed Mounting Screws
• Anti-Friction Latch Retractor
• Clutch Function Panic Proof - Push/Turn

Specifications:

Backset: 2-3/4” UL Latch standard, 2-3/8” optional
Door Thickness: 1-3/8” ~ 2”. Adjustable mounting plate
Cylinder: SC4 6-pin standard, KW1 5-pin optional, SC1 5-pin optional
Interchangable Core: Optional small-format 6-pin available
Strikes: 4-7/8” ANSI Strike standard (9109)
Door Handing: Not required

Door Prep:

• Cross bore: 2-1/8”
• Edge bore: 1”
• Latch face: 1-1/8” x 2-1/4”
• Dummies are surface mounted

Latches:

• Entrance: 2-3/4” (F9070T) standard. 2-3/8” (F9060T) optional
• Pass/Priv: 2-3/4” (F9073T) standard 2-3/8” (F9063T) optional
• Faceplate: 1-1/8” x 2-1/4” square corner
• Bolt: 1/2” Stainless Steel throw. Meets 3-Hr. Fire Rating

ANSI & Federal Standards:

• Meets & exceeds requirements of BHMA/ANSI A156.2 Series 4000, GR1, 800,000 Cycles.
• Meets FF-H-106C Federal Standard.
