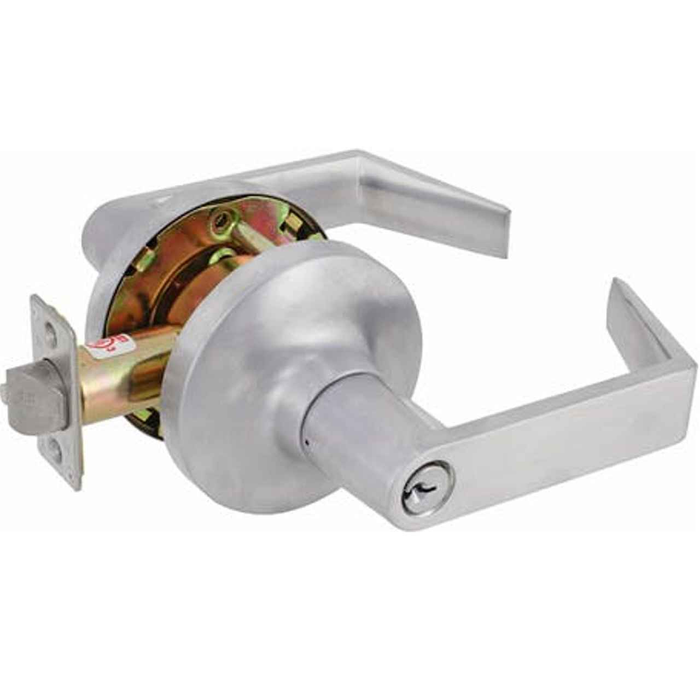

Delaney E Series - CT Style Keyed Entrance Door Leverset
Product Technologies:
Keyed Entry Function: Delaney keyed entry knobs and levers are able to be locked from the exterior with a key, and then locked or unlocked from the inside with a turn-button.
Inside pushbutton locks outside lever. Turning inside lever or using outside key releases inside button automatically. Closing door does not release button. Button is fixed in the locked position by turning to horizontal position.
Features:
- Independent Torsion Spring
- Removable Through Bolts
- Concealed Mounting Screws
- Anti-Friction Latch Retractor
- Clutch Function Panic Proof - Push/Turn
- Panic Proof - Push/Turn
Specifications:
Backset: 2-3/4” UL Latch standard, 2-3/8” optional
Door Thickness: 1-3/8” ~ 2”. Adjustable mounting plate
Cylinder: SC4 6-pin standard, KW1 5-pin optional, SC1 5-pin optional
Interchangable Core: Optional small-format 6-pin available
Strikes: 4-7/8” ANSI Strike standard (9109)
Door Prep:
- Cross bore: 2-1/8”
- Edge bore: 1”
- Latch face: 2-3/4”: 1-1/8” x 2-1/4”, 2-3/8”: 1” x 2-1/4”
- Dummies are surface mounted
Latches:
- Entrance: 2-3/4” (E9070T) standard. 2-3/8” (E9060T) optional
- Pass/Priv: 2-3/4” (E9073T) standard. 2-3/8” (E9063T) optional
- Faceplate: 2-3/4”: 1-1/8” x 2-1/4”. 2-3/8”: 1” x 2-1/4” Sq. Corner
- Bolt: 1/2” Stainless Steel throw. Meets 3-Hr. Fire Rating
ANSI & Federal Standards:
- Meets & exceeds requirements of BHMA/ANSI A156.2 Series 4000, GR2, 400,000 Cycles.
- Meets FF-H-106C Federal Standard.
Manufacturer Resources
Product Specs
- Subcategory:
- Bored Locksets
- Series:
- E Series
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Commercial
- Lock Function:
- Entrance
- Product Type:
- Leverset
- Grade:
- Grade 2
- Product Attribute:
- Cylindrical Locks
- Product Function:
- Entrance
- Product Finish:
- US26D Dull Chrome
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Delaney Hardware 3V5002 – Frequently Asked Questions
1) Will a Delaney E Series lever drop into the existing 2-1/8 inch bore on my door?
It should. The E Series CT is a bored cylindrical lockset prepped for a 2-1/8 inch cross bore and a 1 inch edge bore, which is the standard prep already cut in most doors that have a cylindrical knob or lever in them. The latch face prep depends on backset: 1-1/8 x 2-1/4 inches for the 2-3/4 inch backset latch, 1 x 2-1/4 inches for the 2-3/8 inch backset latch, square corner either way.
2) Which backset do I order on the Delaney E Series entrance lever, 2-3/8 or 2-3/4?
Backset is a required selection, and you measure it from the door edge to the center of the bore. The E Series CT ships 2-3/4 inches as standard with the E9070T entrance latch, which is the usual commercial backset. The 2-3/8 inch option uses the E9060T latch and is the one to pick on residential-depth doors. Get it wrong and the lever will not line up with the hole in the door.
3) Will the Delaney E Series latch work with the strike already in my frame?
The bolt has a 1/2 inch stainless steel throw and the lock ships with a 4-7/8 inch ANSI strike (9109), which is the tall lip strike used in commercial hollow metal frames. If your frame is already prepped for a 4-7/8 inch ANSI strike, the included one drops straight in. If your frame carries a small residential T-strike or a full lip strike, the frame prep will not match and you will be filling and re-cutting the jamb.
4) Can I get the Delaney E Series leverset keyed alike with the rest of my building?
Yes. Keying is a required choice at order: keyed different, keyed alike, or a key charge for custom keying. Keyway is a separate required choice, SC4 6-pin as standard with KW1 5-pin and SC1 5-pin available, so a property manager can match whatever keyway the rest of the doors already run.
5) Does the Delaney E Series lever come in a small format interchangeable core version?
It does. Two cylinder configurations are sold: a standard cylinder, or an SFIC version that takes a small-format 6-pin interchangeable core. The SFIC version ships less core, meaning you supply and drop in your own core, which is how facilities running a master-keyed SFIC system keep the whole site on one core stock. Pick the SFIC option and set keyway and keying to None, since the core carries those.
6) Is the Delaney E Series CT leverset rated for a commercial building or is it residential grade?
Commercial. The E Series CT meets and exceeds BHMA/ANSI A156.2 Series 4000 Grade 2 at 400,000 cycles, and it meets the FF-H-106C federal standard, which matters if you are buying for a government facility. Grade 2 at 400,000 cycles suits offices, multi-family corridors and light commercial traffic; a heavy public entrance seeing constant use is a Grade 1 application.
7) I need a bathroom or office privacy lever, not a keyed one. Is this the right Delaney?
No. The E Series CT in this configuration is an entrance function, keyed on the outside. For a privacy opening you want the pass/privacy latch version instead. If your requirement is a restroom door where staff need to see occupancy at a glance, the Cal-Royal INDLEV-20 is a privacy leverset with a red/green occupancy indicator that adjusts for 1-3/8 to 1-3/4 inch doors and offers both 2-3/8 and 2-3/4 inch backsets.
8) What lever should I use on a restroom or exam room door instead of the Delaney E Series CT entrance leverset?
Use the Cal-Royal INDLEV-20 privacy indicator leverset. The Delaney E Series CT lever is an entrance function, keyed from the outside and locked or unlocked by a turn-button inside, which is what you want on an office or tenant entry door but not on a room where an occupant needs to see at a glance whether it is in use. The INDLEV-20 is a privacy function with a red/green occupancy indicator, so a facility can tell an occupied restroom, exam room, or changing room from an open one without trying the lever. Both are cylindrical levers offered in 2-3/8 inch and 2-3/4 inch backset, so the door prep is the same family of hole pattern and the choice is purely about how the room needs to lock.
9) Is the Cal-Royal INDLEV-20 a substitute for a Delaney E Series CT entrance leverset?
No. They look alike on the door but they lock differently. The Delaney E Series CT is a keyed entrance lever: a key on the outside, a turn-button inside, and a cylinder ordered as SC4 6-pin standard, KW1 5-pin, or SC1 5-pin, plus a small-format 6-pin interchangeable core version if the building keys to an SFIC system. The Cal-Royal INDLEV-20 is a privacy function with an occupancy indicator and no keyway to bring into a master key system. If the opening has to be secured against the public or keyed to a building master, the INDLEV-20 will not do that job regardless of how similar the trim looks.
10) What does the keyed entry function actually do on a Delaney E Series lever?
Outside lever locks and unlocks by key. Inside, a pushbutton in the lever locks the outside lever. Turning the inside lever or using the outside key releases that button automatically, so nobody gets locked in. Closing the door does not release it. If you want the outside lever to stay locked through repeated use, turn the button to horizontal and it stays fixed in the locked position, which is what you want on a storeroom-style opening or a back door.
11) Can I use the Delaney E Series entrance leverset on a fire rated door?
The latch bolt meets a 3-hour fire rating, so the latching hardware itself is suited to a rated opening. Note the entrance function keeps the door latched at all times and the inside lever always retracts the latch, which is the behavior a rated egress opening needs.
12) Will the Delaney E Series lever hold up to people yanking down on it, or will it break?
The trim is built for abuse. An independent torsion spring keeps the lever from sagging, and a clutch mechanism means force applied to a locked outside lever spins the lever rather than transmitting into the lock body, which is the panic-proof push/turn behavior. It also uses concealed mounting screws and removable through bolts, so the exterior side gives an attacker nothing to unscrew.
13) How is the Delaney E Series entrance lever different from the Cal-Royal INDLEV-20 privacy lever?
Different functions for different openings. The Delaney E Series CT is a keyed entrance lockset, Grade 2 to ANSI A156.2 Series 4000, fitting doors 1-3/8 to 2 inches. The Cal-Royal INDLEV-20 is a privacy leverset with a red/green occupancy indicator, listed as standard duty commercial and adjustable for 1-3/8 to 1-3/4 inch doors. Use the Delaney where the door has to be secured with a key; use the Cal-Royal where the door only needs to be held private and staff need to read whether it is occupied. Note the Delaney handles thicker doors, up to 2 inches.
14) Is the Delaney E Series CT leverset handed, and do I need to specify left or right?
No handing to specify. It is a bored cylindrical lockset, and cylindrical levers are reversible in the field, so the same part serves a left hand or right hand door. What you do have to specify at order is backset, keyway and keying.
15) Which cylindrical lever covers a 2 inch thick door, the Delaney E Series CT or the Cal-Royal INDLEV-20?
The Delaney E Series CT entrance leverset fits doors from 1-3/8 inch to 2 inch on an adjustable mounting plate. The Cal-Royal INDLEV-20 privacy indicator lever adjusts from 1-3/8 inch to 1-3/4 inch. On a standard 1-3/4 inch commercial door either one lands inside its range, so the decision goes back to function. On a thicker leaf, such as a built-up or clad door running to 2 inch, the Delaney range is the one that reaches it.
16) I need a Grade 2 rated lever for a school corridor door - does the Cal-Royal INDLEV-20 meet that?
The Delaney E Series CT entrance leverset is the one carrying the graded rating: Grade 2, meeting and exceeding BHMA/ANSI A156.2 Series 4000 at 400,000 cycles, and meeting the FF-H-106C federal standard, with a 1/2 inch stainless steel latch bolt throw that meets a 3-hour fire rating. The Cal-Royal INDLEV-20 is described as standard duty commercial grade. For a specification that calls out an ANSI grade by number on the drawing, the Delaney E Series CT is the lever that answers it; the INDLEV-20 is the choice where the requirement is a privacy indicator rather than a cycle-graded entry lock.
17) What finish is the Delaney E Series CT leverset and will it match my existing satin chrome hardware?
US26D dull chrome, the satin chrome finish that dominates commercial door hardware. It will sit consistently alongside existing US26D closers, exit devices and hinges, which is what you want when you are replacing one lock in a corridor of matching openings rather than refitting the whole floor.
